Versions WITHOUT electric limit switch

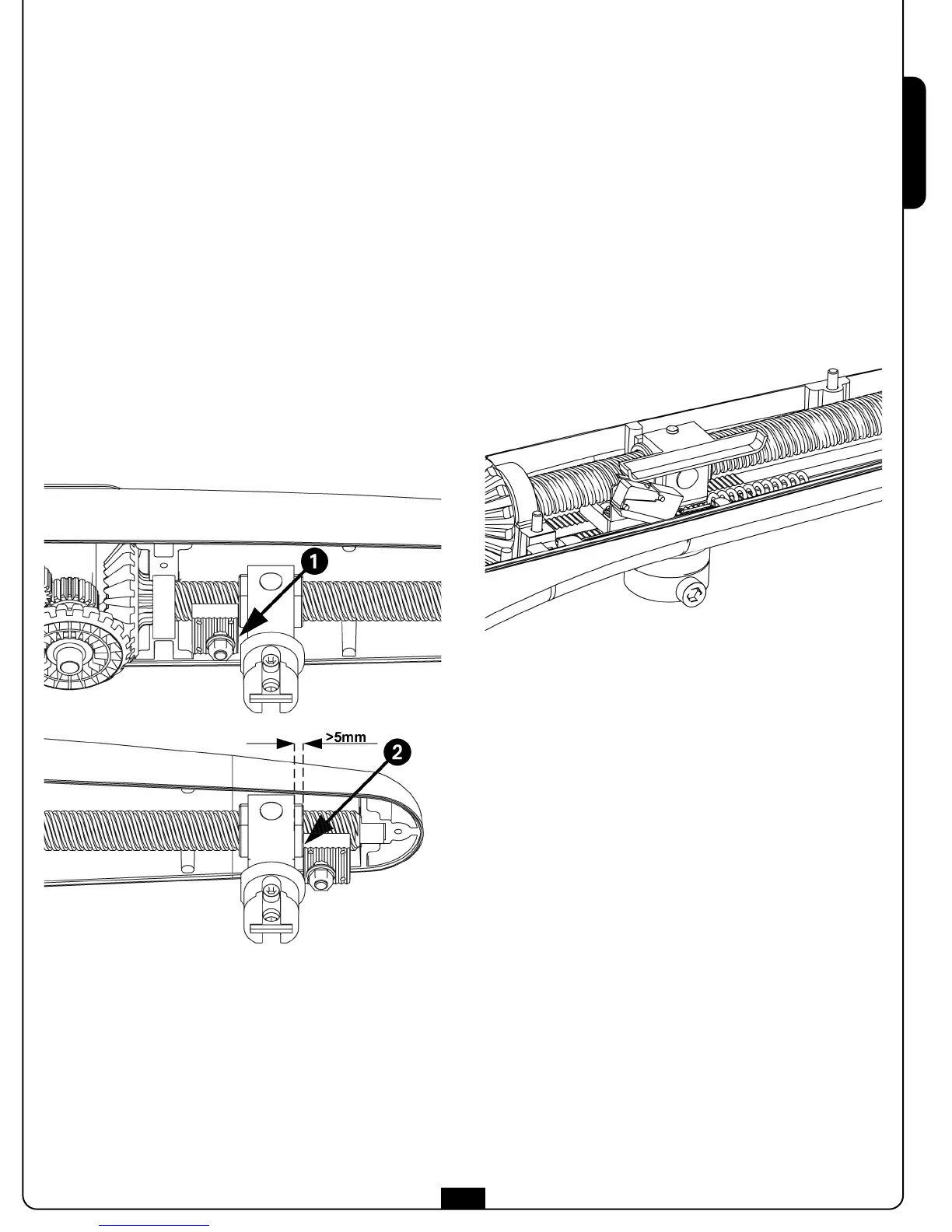

To adjust the limit switch, please do as follows:
• Open the swing as much as possible and position the
mechanical stop no. 1 in contact with the female screw.
• Fasten the mechanical stop fixing the bolt using a 13 mm
spanner.
• Move the leave in closing position, then position the
mechanical stop 2 next to the nut (keep a distance of at least
5 mm).
PLEASE NOTE: Stop No. 2 must only be used for
installations with no closure stop, or to intervene as a
result of over-running under emergency conditions.
Where the door has a mechanical stop, avoid setting stop
No. 2 at the female screw end-stop when the gate is
closing. The female screw could seize in such a way as to
make it very difficult to release the Bingo.
• Fasten the mechanical stop fixing the bolt using a 13 mm
spanner.
Versions WITH electric limit switch
As regards models equipped with electrical limit switches, the
female screw stops 5mm before the mechanical stop; the
electrical limit switch (already wired inside the motor) interrupts
the motor power supply, to avoid unusefull stress and
overheatings.
To adjust the limit switch, please do as follows:
• Open the swing as much as possible and position the
mechanical stop no. 1 in contact with the female screw.
• Fasten the mechanical stop fixing the bolt using a 13 mm
spanner.
• Close the swing as much as possible and position the
mechanical stop no. 2 in contact with the female screw.
• Fasten the mechanical stop fixing the bolt using a 13 mm
spanner.
