Choose measures referring to the table you can find in the
previous page, mark them on the pillars and continue as follows:
• Fix brackets on the pillars and on the gate.
• Close the swing.
• Unlock the actuators.

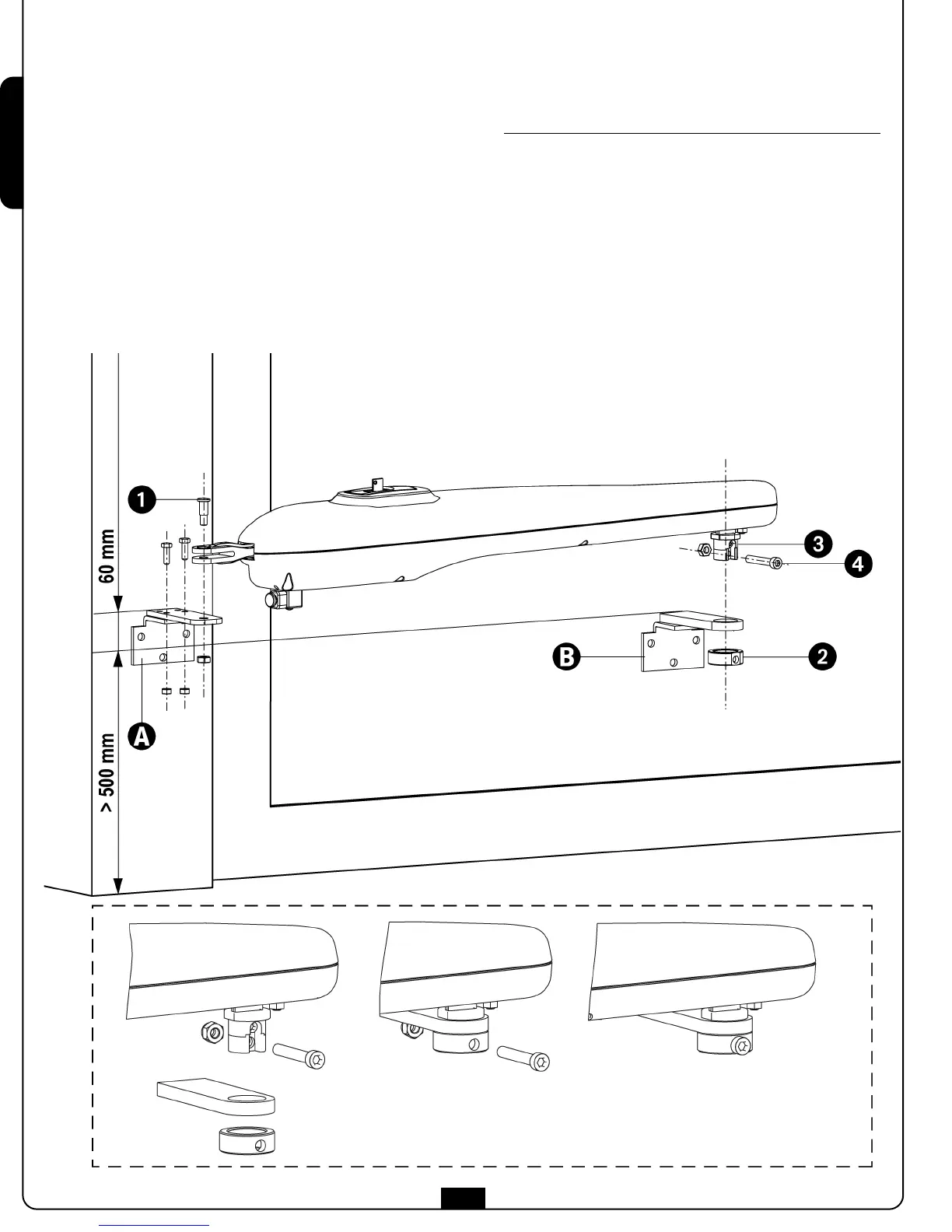

• Position BINGO on the brackets and fix the pin no. 1 with
self-locking nut (see the picture).
• Insert the ring nut 2, paying attention to the side of the
entrance.
• Make that the hole for the fastening of the screw n. 4 is on
the lower side.
side would be very difficult because of the conicity of the
hole and the bush 3. An over forcing may cause the
damage of some components.
• Once inserted correctly the ring nut 2, fix it on the bush
3 using the screw 4 with its self-blocking nut.
• Close the self-blocking nut before hand moving the leaves.
• Try more times to hand open and close the leaves, checking
that there are no frictions between the actuator and the
structure of the gate.
