ENGLISH
20

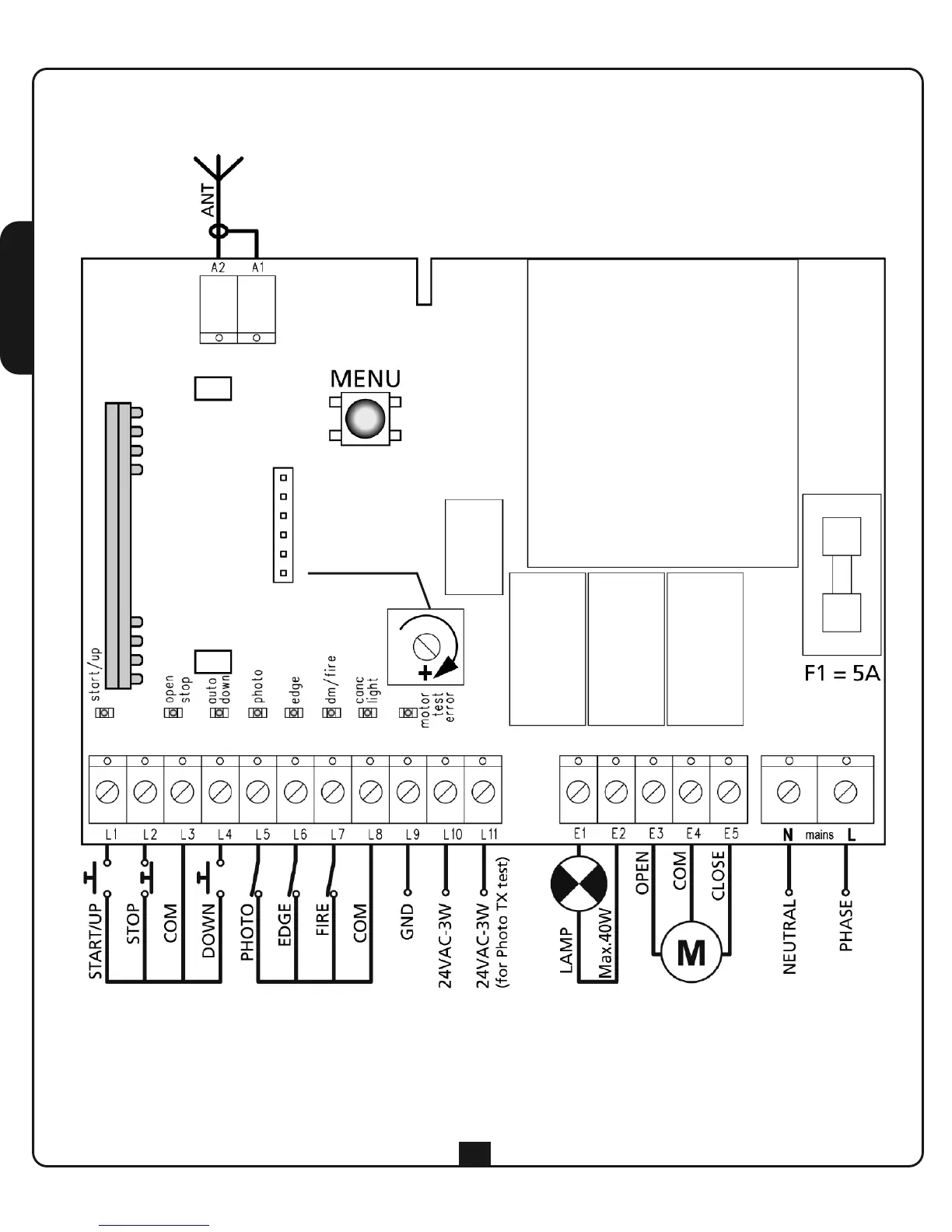

ELECTRIC CONNECTIONS TABLE
WARNING: Normally closed inputs STOP (L2), PHOTOCELL (L5), EDGE (L6), FIRE (L7), if not
used must be bridged through the COMMON terminal (-)
WARNING: a wrong connection of the antenna compromises seriously the RADIO working of
the control unit.
EASY4 only
