V2 STARK6 User Manual

ENGLISH
- 16 -
INSTALLATION MEASURES

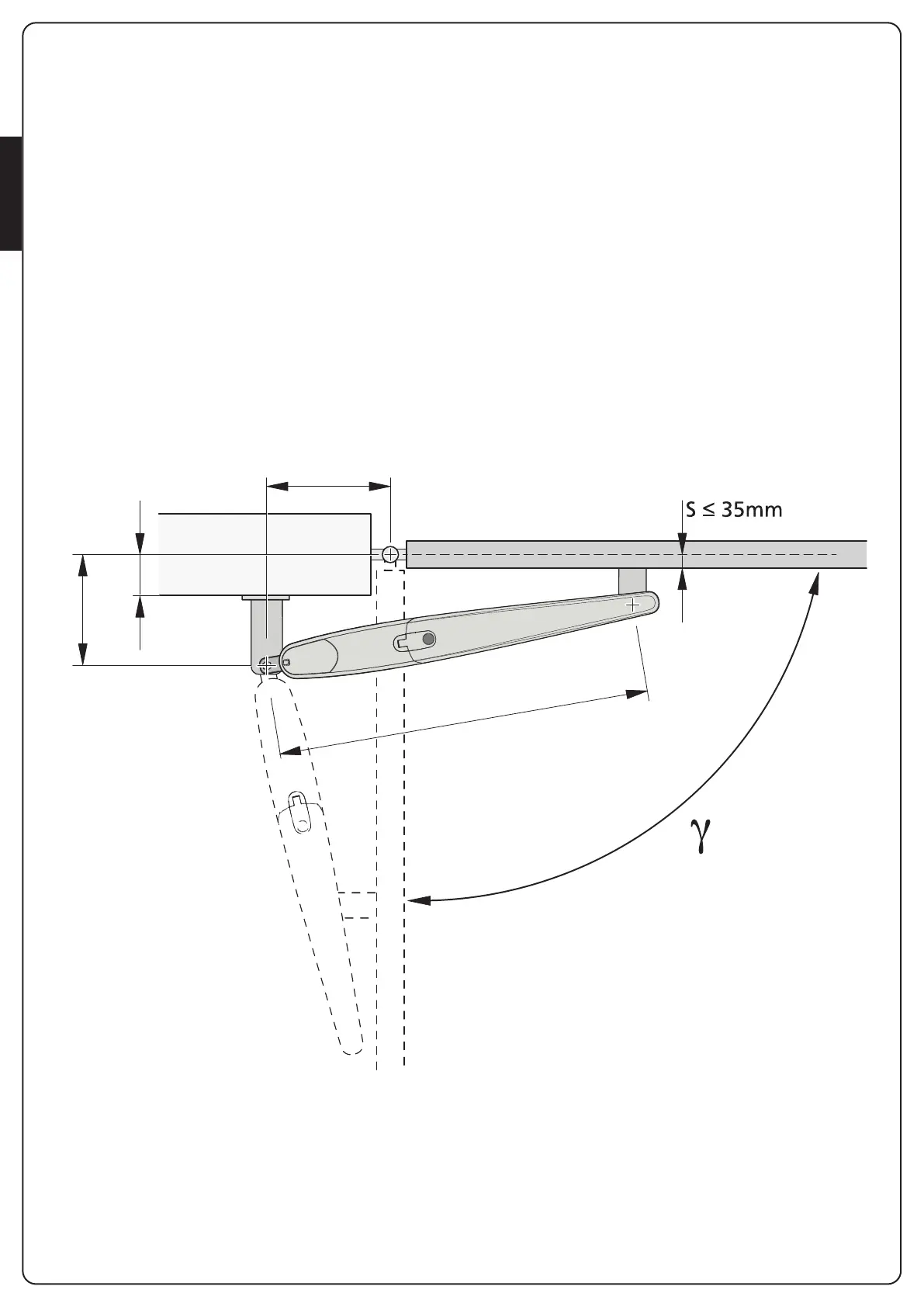

To carry out a proper installation of the operator parts as well as
to ensure the best automation performance, the measurement
levels shown in the following table shall be complied with.
Change the gate structure to adapt it to one of the cases in the
table, if necessary.
m ATTENTION!
• Make sure that the door is able to open at the desired angle
without impediments
• The front bracket must always be mounted to its maximum
length (173 mm) therefore it must NOT be cut!
CAUTION: Failure to comply with the bracket installation
distances may lead to automation operation faults, such as:
- Cyclical movements and accelerations at some positions
of the stroke.
- Increased motor noise.
- Limited opening, or no opening at all (in case of
counterlever fixed motor).
A
E
D (945mm)
W
