ENGLISH
29
3 - INSTALLATION OF THE MOTOR

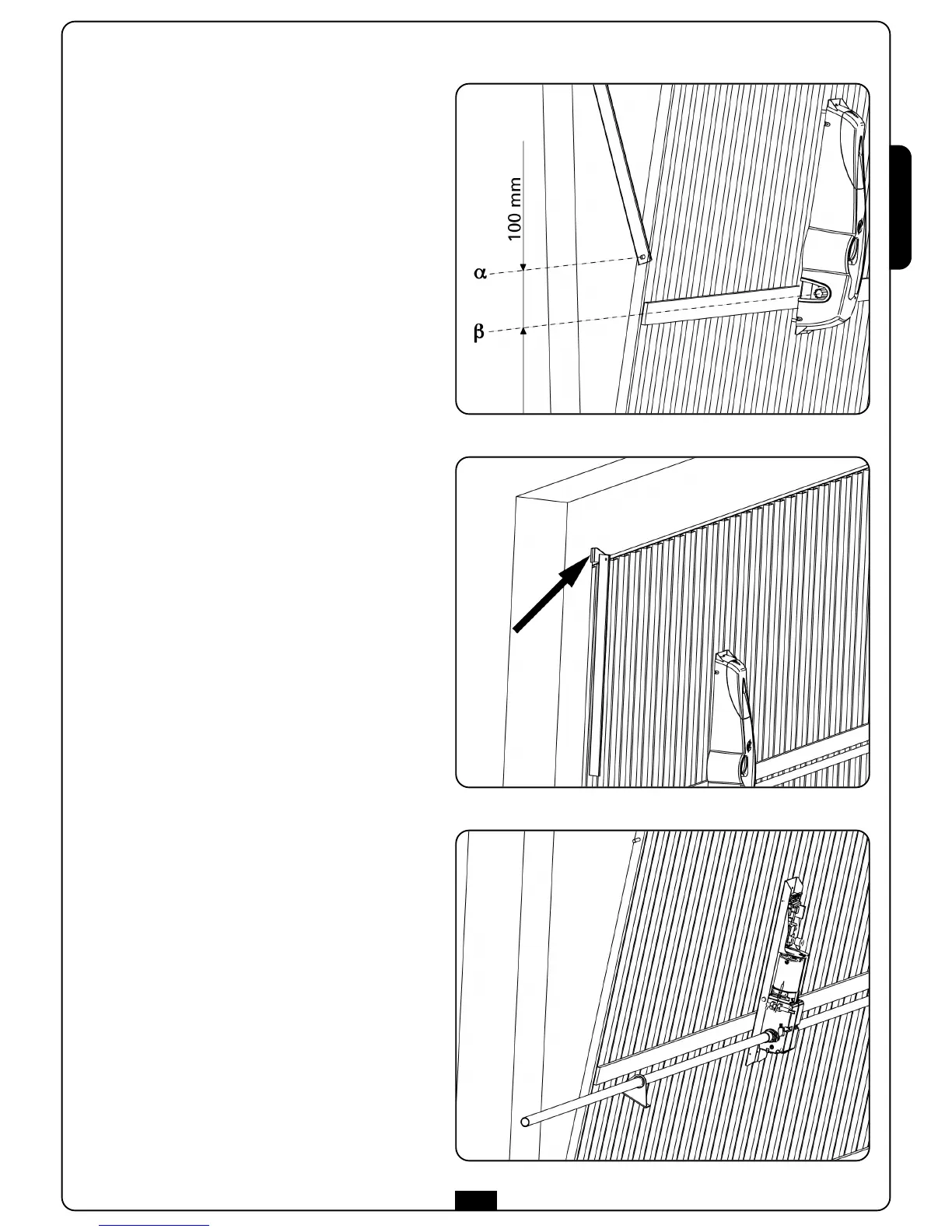

1. Identify the axis of door arm a and fix
a
new axis
b
(which will be the axis of rotation of the VEGA
actuator torque shaft), parallel as to
a
and placed
100 mm down.
2. Place VEGA in the middle of the sliding door and fix
the longitudinal member fastening points.
Separate the ratiomotor from the longitudinal member
by unscrewing the two bolts, then fasten the
longitudinal member to the door and assembly the
ratiomotor again.
3. Fasten the anchoring bracket of the telescopic arm
(code 162405) on the door upper cross member or on
the wall.
4. Fasten the telescopic arm on the anchoring bracket
by means of the proper pins and “seeger”
m WARNING: the telescopic arm must be
assembled in such a way as to pass between the
door case and the door arm without any friction.
In case this is not possible due to the lack of space,
make use of the special curve arms
5. Enter the drive tube equipped with a bush into the
drive shaft and enter the bracket by means of the
special plastic bushing (code 162406) into the other
tube end
