ENGLISH
31

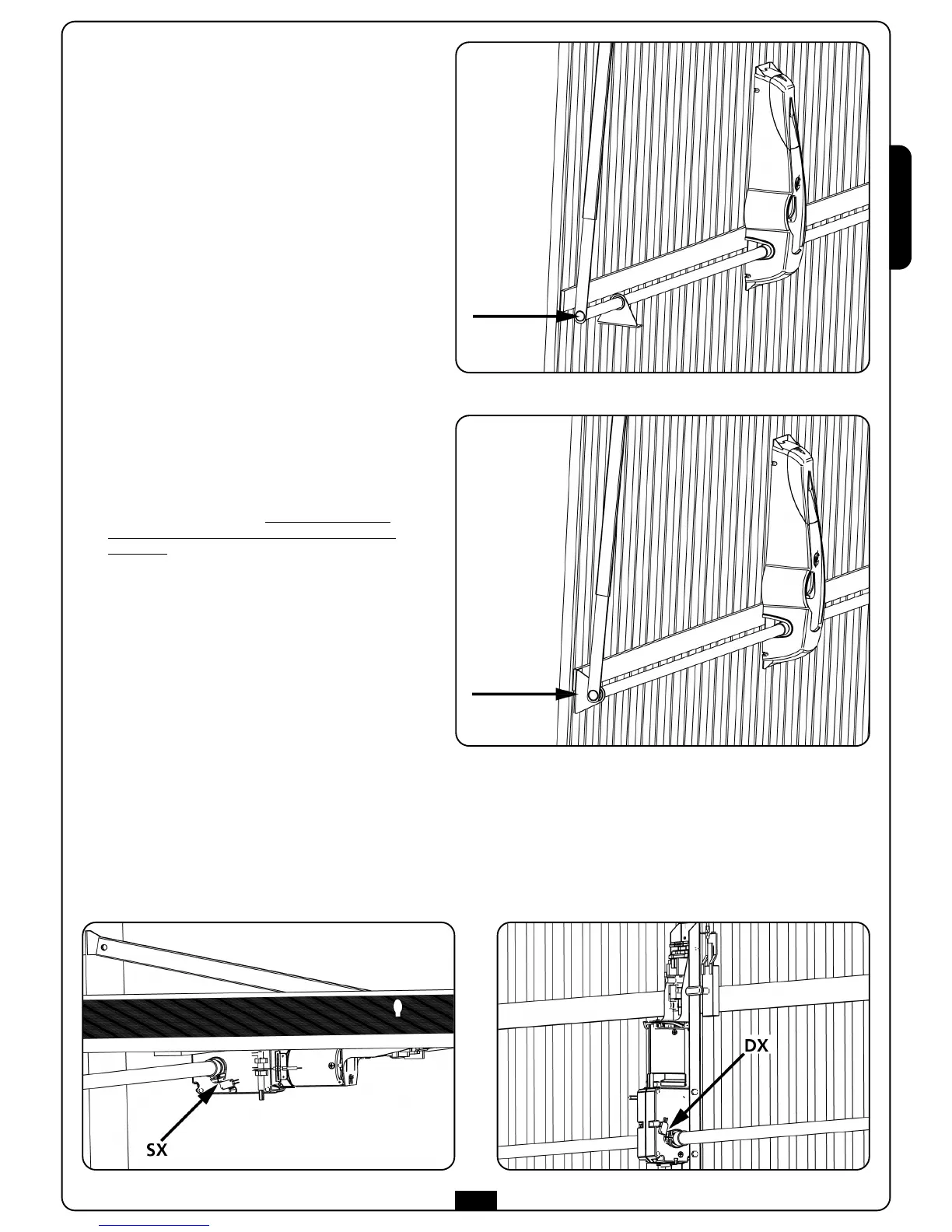

9. By keeping the door closed, weld the tube base to
the
g 2
lower part free end of the telescopic arm
10. Enter and finally fasten the telescopic arm on the
anchoring bracket by fastening all pins by means of
“seeger” supplied
11. Fasten the bracket, which has been previously
entered into the tube, to the sliding door
12. Repeat what described at points 3 ÷ 11 as for the
other side of the door
13. Release the ratiomotor and check that the sliding
door opening and closing operations can be easily
performed.
Otherwise, the door must be balanced again by
increasing the balance weights.
4. ADJUSTMENT OF THE ENDS OF STROKE
Opening end of stroke
Drive the sliding door to approx. 50 mm from its max. opening,
then adjust the left cam so that the microswitch is operated.
Fasten the cam by screwing it.
Closing end of stroke
Drive the sliding door to its max. closing position and adjust the
right cam so that the microswitch is operated.
Fasten the cam by screwing it.
