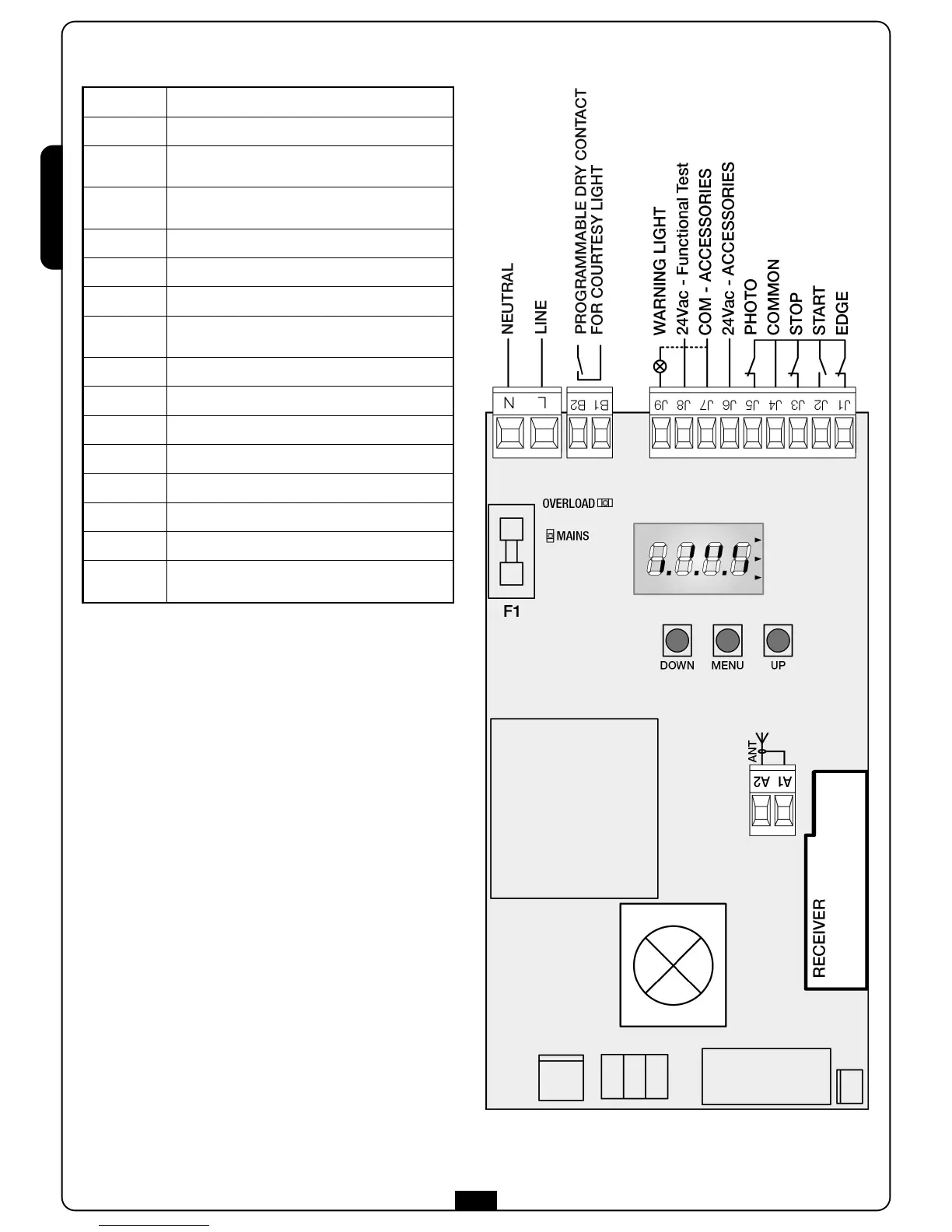

8.10 - ELECTRIC CONNECTIONS
A1 Antenna shield
A2 Antenna
J1
Safety ribbons.
N.C. contact or conductive rubber ribbons
J2
Opening control for the connection of control
d
evices with N.O. contact
J3 Stop command. N.C. contact
J4 Common (-)
J5 Photocell. N.C. contact
J6 - J7
Power output 24 VAC for photocells and other
accessories
J
7 - J8
P
hotocell TX power supply for functional test
J7 - J9 Warning light
B1 - B2 Dry contact for light output
L Power phase
N Neutral
F1 T1,6A
MAINS It shows that the control unit is power supplied
OVERLOAD
It shows that there is an overload on accessories
power supply
