V2GO g0-210 - Video Connections; S-VIDEO Connection; Y.Pb.Pr Connection

TO TV S-VIDEO INTO TV S-VIDEO IN
GO-210

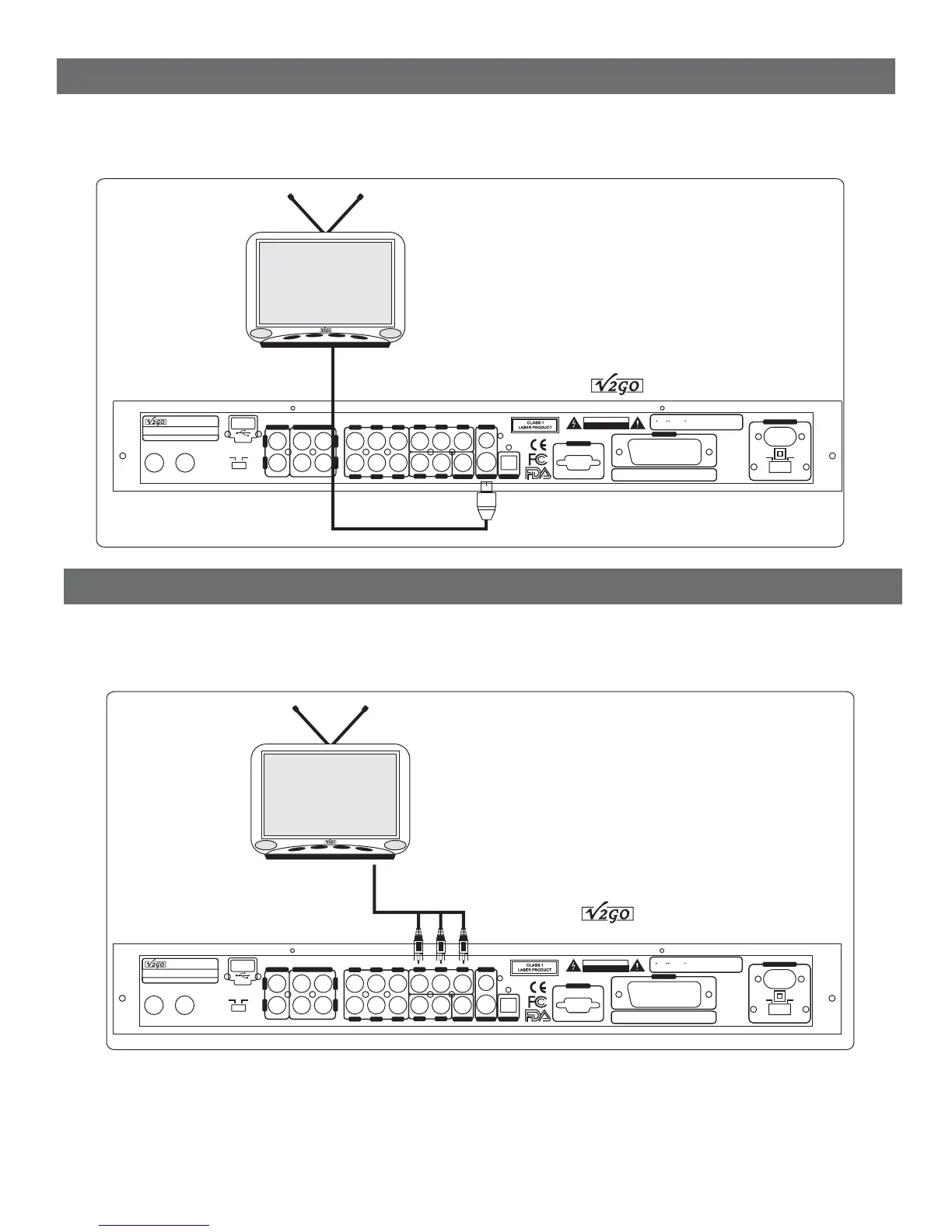

S-VIDEO ConnectionS-VIDEO Connection
Apply S-VIDEO Cord to connect S-VIDEO OUTPUT jack on GO-210 with S-VIDEO IN jack on TV.
The TV should be set in S-VIDEO mode. Player setting is shown on PAGE 20.
Apply S-VIDEO Cord to connect S-VIDEO OUTPUT jack on GO-210 with S-VIDEO IN jack on TV.
The TV
should be set in S-VIDEO mode. Player setting is shown on PAGE 20.
Apply Y.Pb.Pr cords to connect Y.Pb.Pr jacks on GO-210 with Y.Pb.Pr IN jacks on the TV.Apply Y. P b . P r cords to connect Y. P b . P r jacks on GO-210 with Y.Pb.Pr IN jacks on the TV.
Y.Pb.Pr ConnectionY. P b . P r Connection
TO-TV Y.Pb.Pr INTO-TV Y.Pb.Pr IN
GO-210
TV should be set in Y.Pb.Pr mode. For player setting, please see PAGE 20.TV should be set in Y.Pb.Pr mode. For player setting, please see PAGE 20.
