2.7 Installing IP converter
2.7.1 Internal IP Converter
Remove the front cover and indicator.
(see page 15)

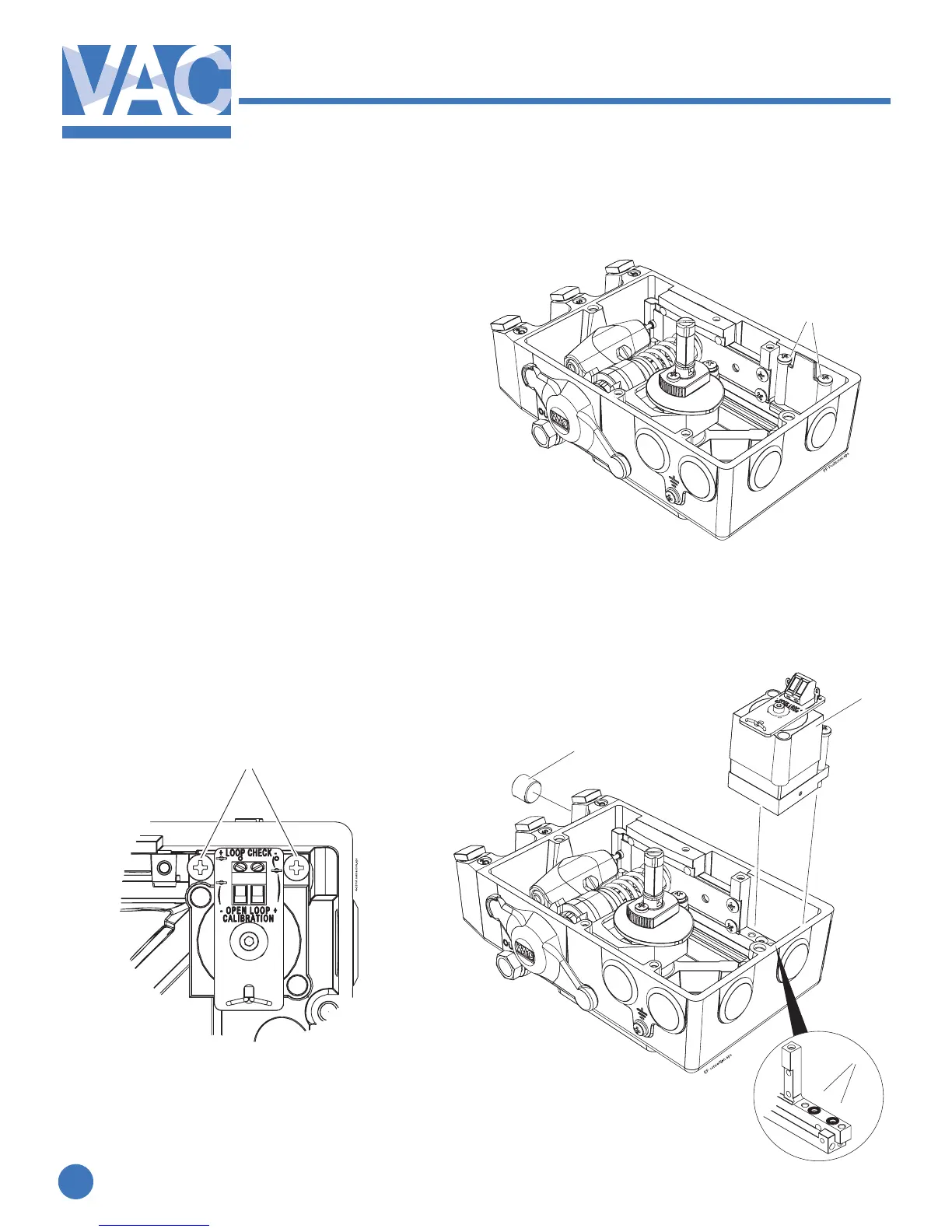

1. Loosen the two screws that secure the
pneumatic sealing plate(1) and remove
the plate.
2. Make sure the two O-rings(2) are still in the
positioner housing.
3. Install the IP converter(3) and tighten the
screws(4).
4.Installthe1/4¨plug(5)intheportmarkedI.
1
3
4
5
2
