VAC V200P - 2.4 Linear Actuator Installation

V200 POSITIONER
www.vacaccessories.com
92026r15
9

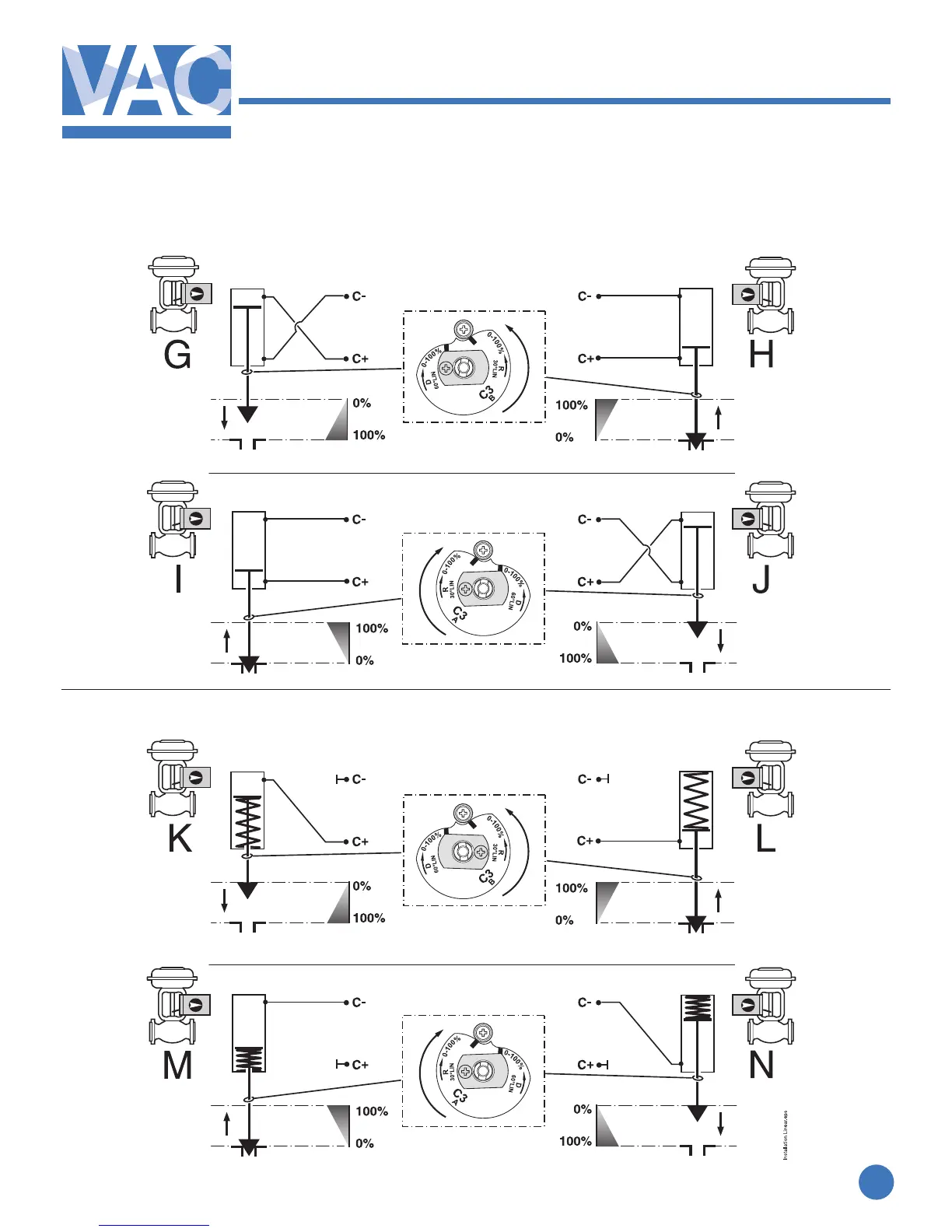

2.4 Installation instructions for linear actuators
2.4.1 Double acting
2.4.2 Single acting
Direct (CCW)
Signal closes Signal opens
Reverse (CW)
Spring opens Spring closes
Direct (CCW)
Spring opens Spring closes
Reverse (CW)
Signal opens Signal closes
Signal closes Signal opens
Signal opens Signal closes
