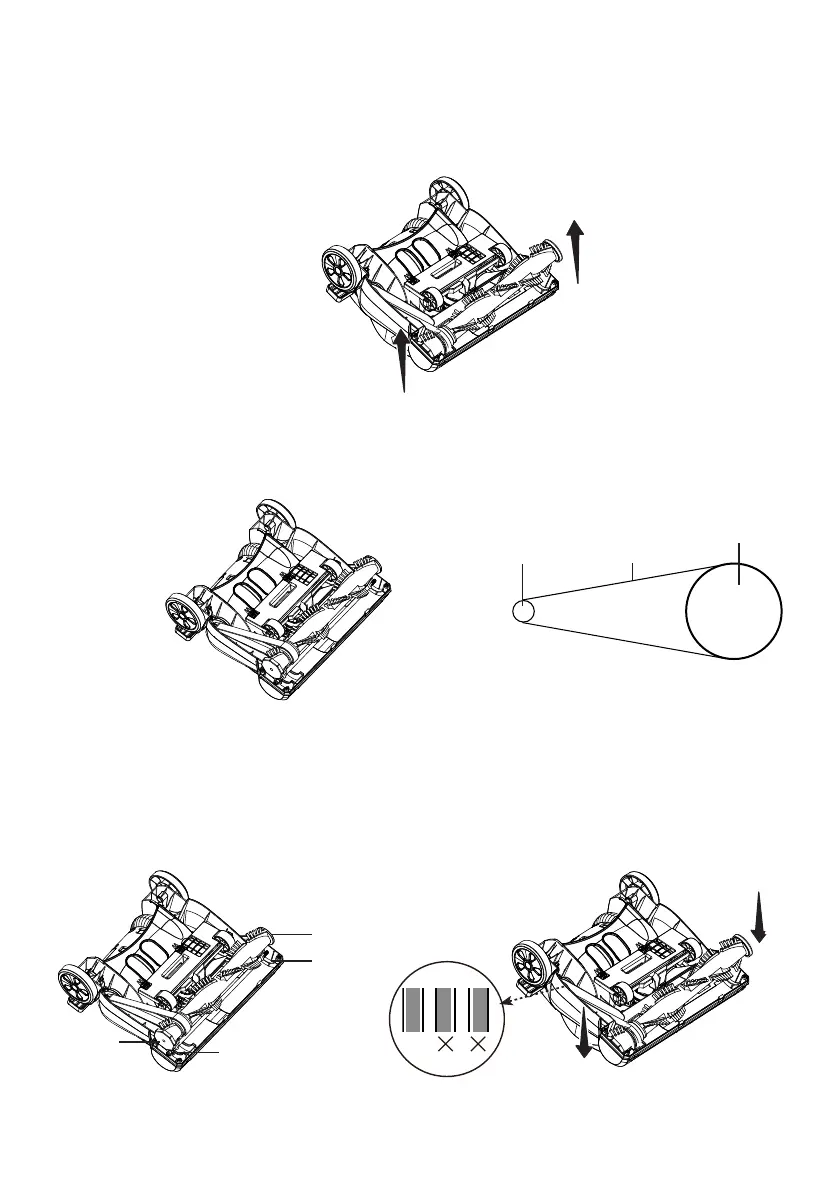

3. Remove the brush roll by carefully lifting out
.
4. Remove the worn or broken belt.
5. Use scissors to remove any entangled hair around the brush roll. Clean any
debris from the oor nozzle.
6. Loop the new belt around motor shaft and the brush roll.
Brush Roll
Belt
Motor Shaft
1
2
7. Reinstall the brush roll back into the oor nozzle. Place the end cap with the
belt into groove rst, and then place the other end cap into the other groove as
shown below. Rotate the brush roll to make sure the belt is installed correctly.
Note:
Make sure the belt is in the middle of the slot as illustrated in the below
picture.
End Cap
End Cap
Groove
Groove
1
2
√
