PLANNING THE AIR/FLUE DUCT LAYOUT
155

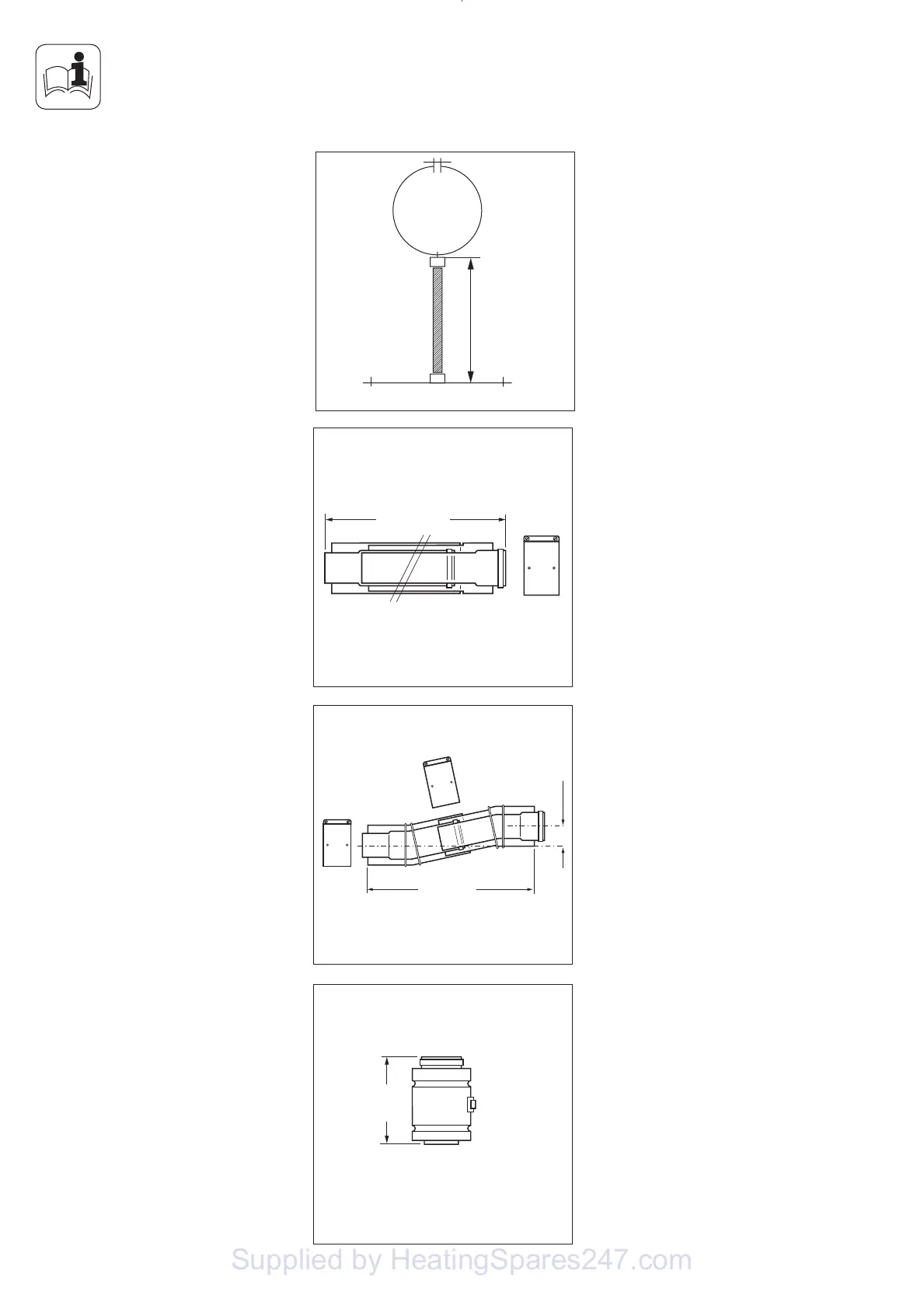

Fig. 1.8: Sliding sleeve, Ø 60/100
Sliding sleeve (PP), Ø 60/100
Vaillant Accy. No.: 303 915
290 – 374
33 – 56
Fig. 1.7: Offset section, Ø 60/100
Offset section, Ø 60/100
Vaillant Accy. No.: 303 919
303919_IAx
440 – 690
Fig. 1.6: Telescopic extension, Ø 60/100
Telescopic extension (PP), Ø 60/100
440 mm - 690 mm
Vaillant Accy. No.: 303 906
250
Fig. 1.5: Flue support clips, Ø 100
Adjustable flue support clips, Ø 100
(pack of 3)
Vaillant Accy. No.: 303 935
