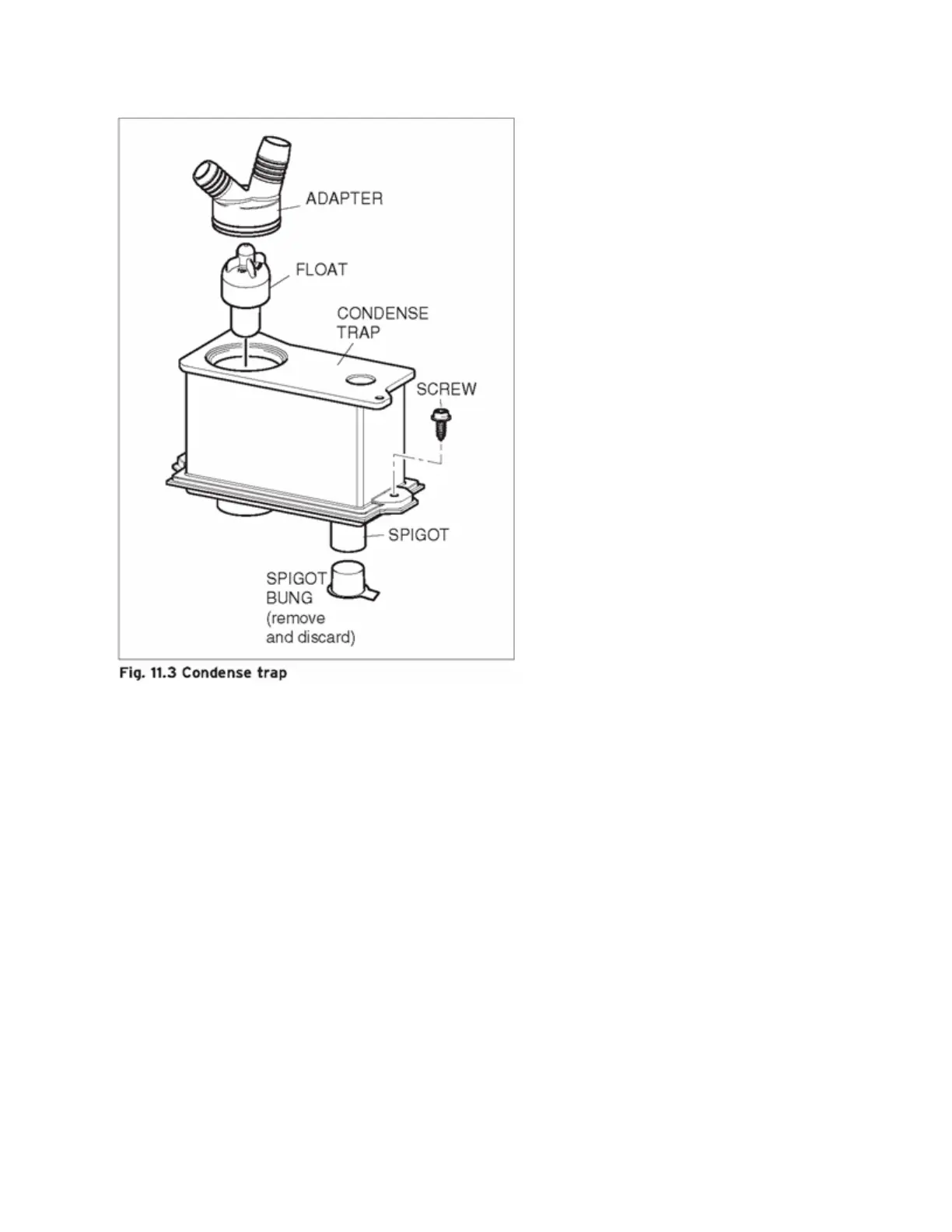

● Remove the clips securing the flexible tubes to the adapter by twisting the clips slightly to
disengage the clip jaws from each other.
● Remove flexible tubes from adapter.
● Lift off the adapter.
● Remove the drain connection downstream of the condense trap.
● Remove the two condense trap securing screws.
● Lift up and carefully remove the condense trap taking care not to spill any water which
may be left in the unit. As the unit is lifted remove the flexible pipe on the outlet.
● Remove any solids found.
Before removing the float note it’s orientation.
● Remove the float to clean it.
● Flush water through the trap to remove any remaining solids.
● Check for any debris in the outlet pipe of the condensate drain and clean as necessary.
● Reassemble and refit the condense trap.
NOTE:
