You will find a list of genuine flue pipes in the Vaillant installation manual for flue pipes.
The CE mark is valid only if the appliance is operated with Vaillant flue pipes.
3.5 Flue options
There are various flue systems to choose from, as follows:
60/100 standard horizontal air/flue duct, see fig 3.1.
60/100 telescopic horizontal air/flue duct, see fig 3.2.
60/100 Vertical air/flue duct and terminal, see fig 3.3.
80/125 horizontal air/flue duct, see fig 3.4.
80/125 Vertical air/flue duct and terminal, see fig 3.5.
Flue extensions are available to extend the length, both 90° bends and 45° elbows are also
available.
Refer to flue system installation instructions for full details.
When extension pipes are used the flue system must be designed to have a continuous fall to
the boiler of at least 3° to allow condensate to run out via the drain.

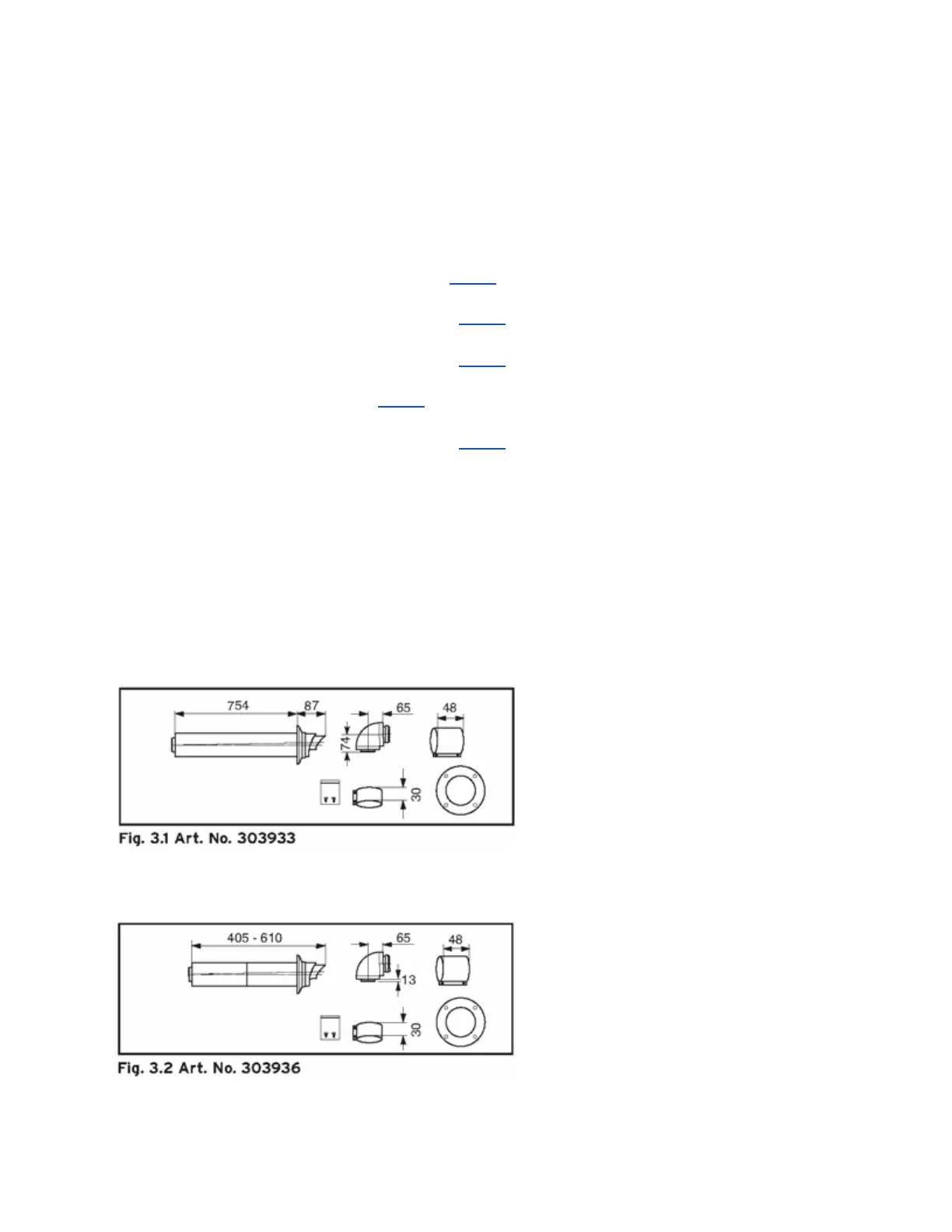

Fig. 3.1 Art. No. 303933
Fig. 3.2 Art. No. 303936
