Reposition the wall template over the flue hole ensuring the template is vertical and mark the
position of the fixing holes for the hanging bracket, see fig 4.3. Mark and drill the fixing holes
and secure the hanging bracket. Fix the hanging bracket to the wall using the screws supplied.
Ensure the uppermost set of screw positions are used (it may be necessary to use additional or
alternative fixings to ensure adequate support).

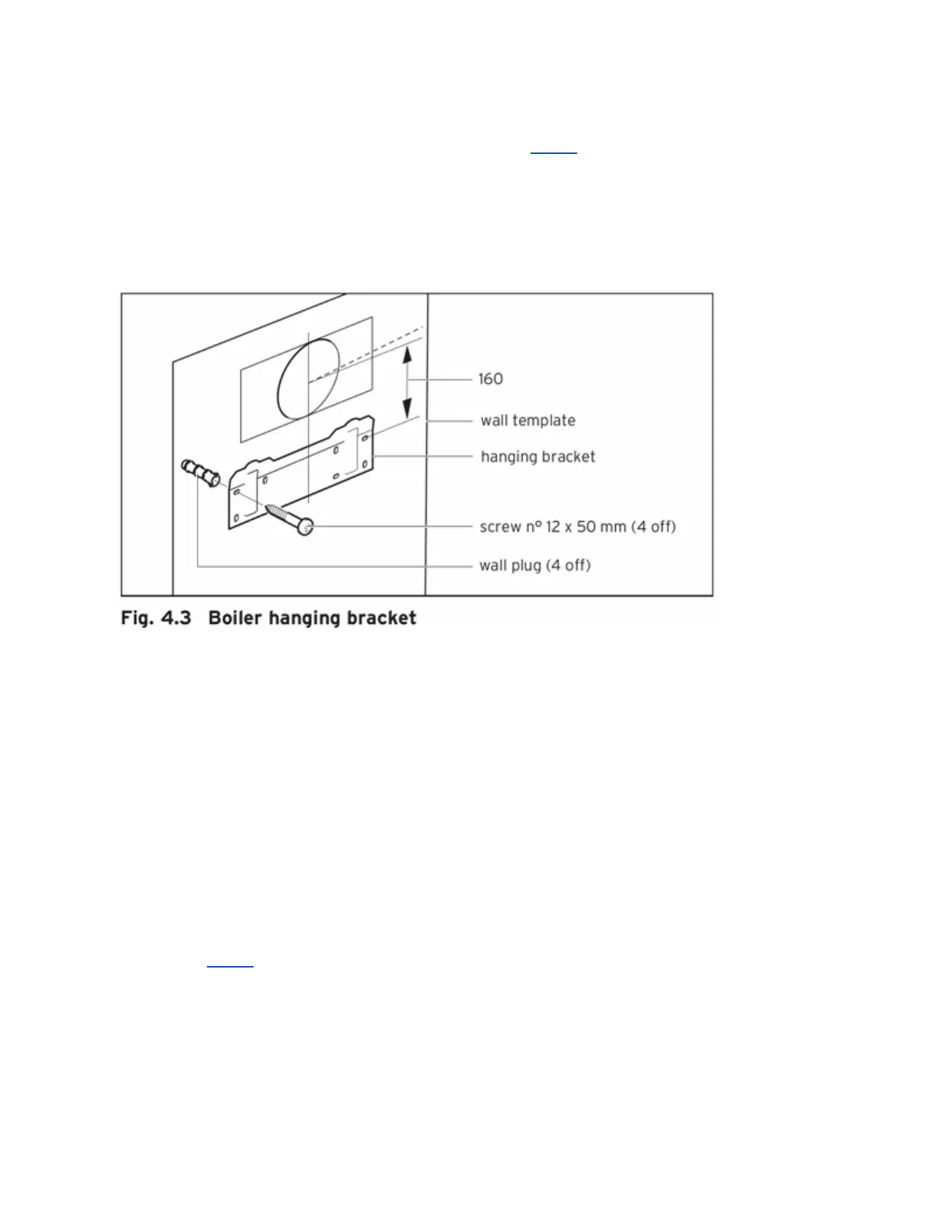

Fig. 4.3 Boiler hanging bracket
NOTE:
If the boiler is to be fitted in a timber framed building ensure that the bracket is secured
to a substantial part of the timber frame capable of taking the weight of the boiler.
4.3.1 Boiler fixing
Lift the boiler into position in the following manner: Lean the top of the boiler slightly to the wall
and position just above the hanging bracket. Allow the boiler to slowly move downwards until
engaged in the hanging bracket.
4.3.2 Removing the front casing
Remove the front casing securing screws then lift the case upwards off the two top retaining
dowels, see fig 4.4.
NOTE:
Take care not to damage the front casing.
4.3.3 Gas connection
Fig. 4.4 Removing front casing
