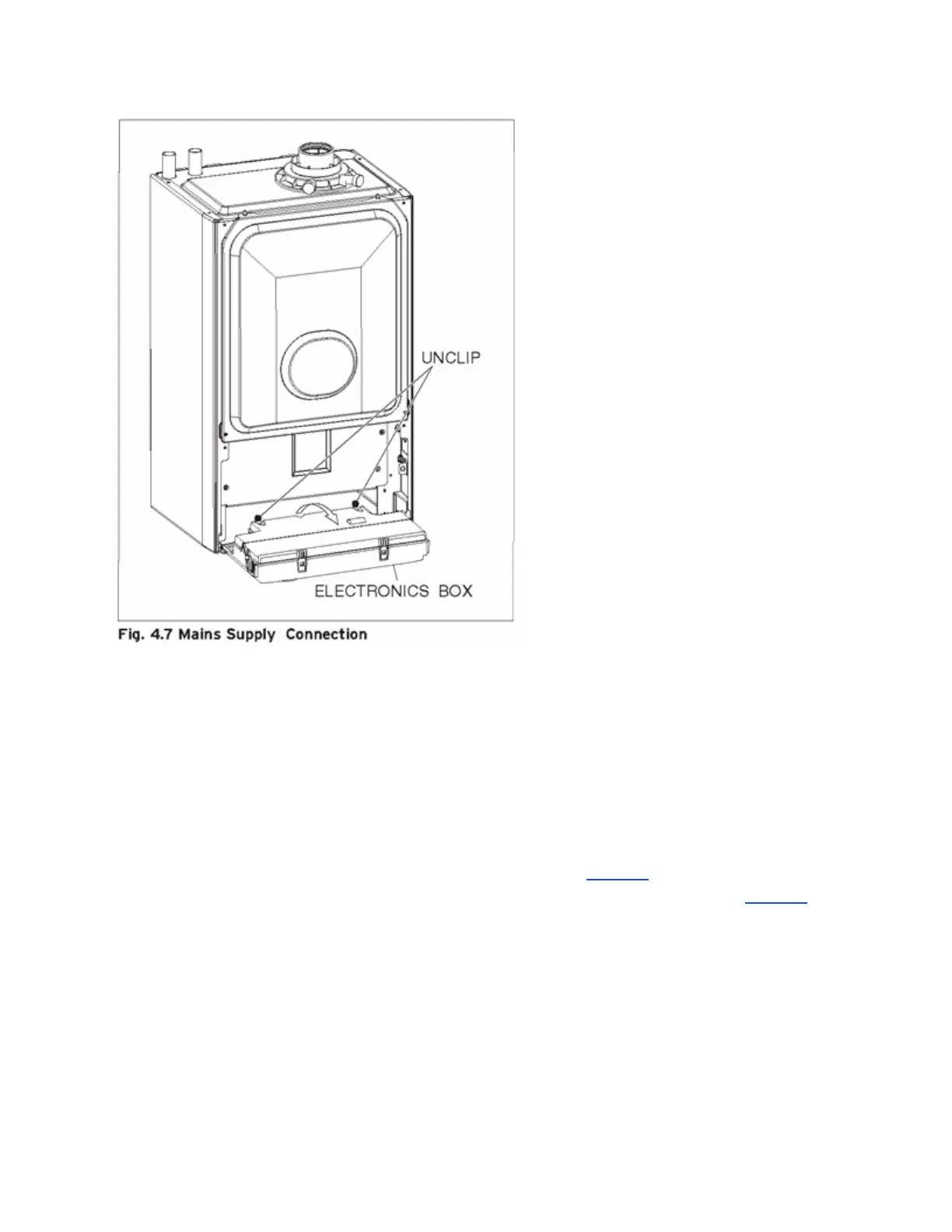

Opening the electronics box
● Unclip the bottom of the electronics box cover and hinge back to reveal the connection
plugs.
● Feed the power supply flex into the appliance and the electronics box through the cable
clamps provided.
4.4.2 Wiring system
● Connect the mains supply to the terminal block, see fig fig 4.8.1 the pump can be
connected directly to the terminal block or alternatively as shown in diagram fig 4.8.2.
Fig. 4.8.1 Mains Supply Connection
