50
220
15
3
1

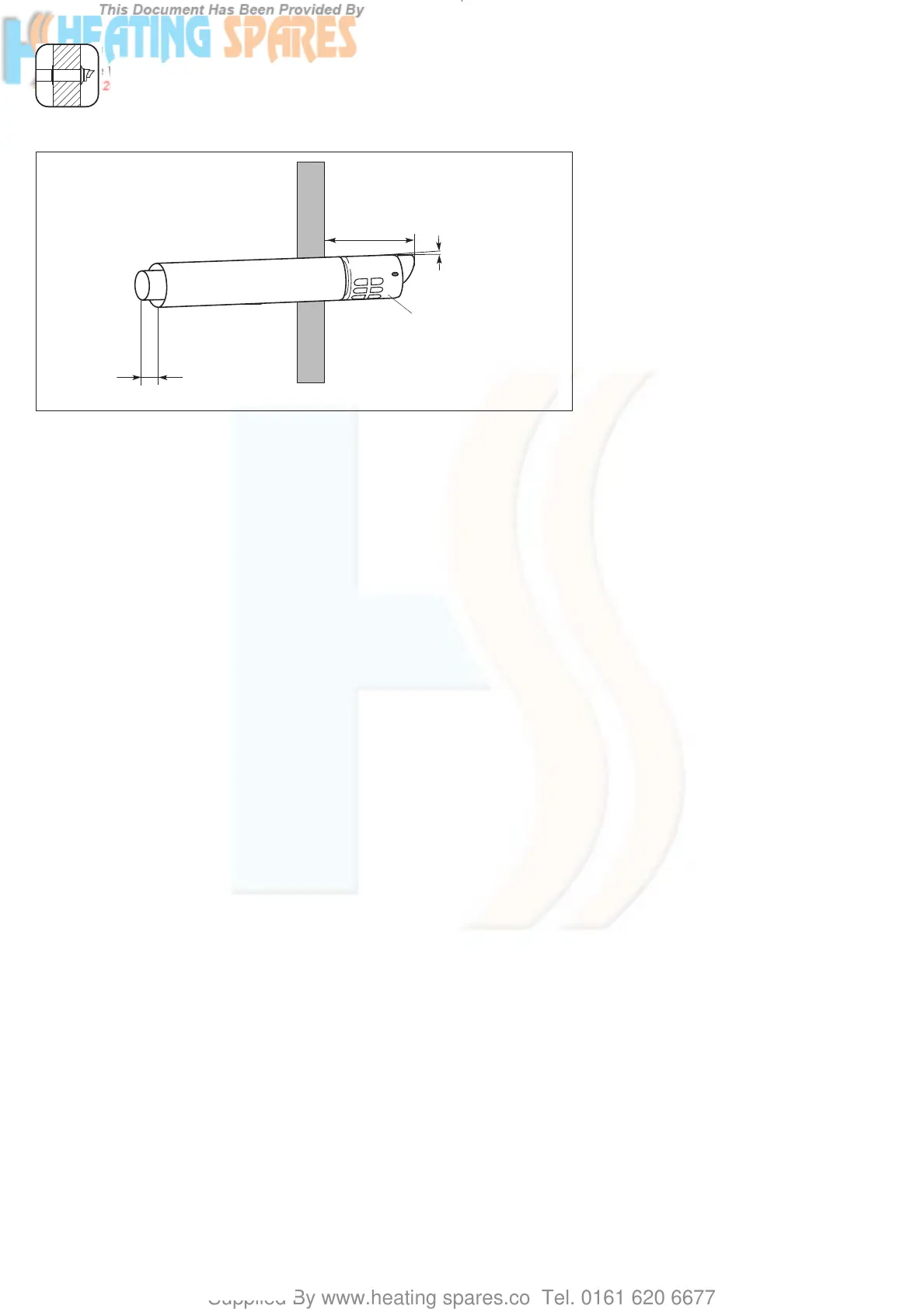

Fig. 4.8: Installing the horizontal wall duct
LGU_LAZ 384/0_IT
• Push the assembled air/flue duct
and terminal assembly through the
flue exit hole until it protrudes
220 mm out from the outside
wall.
• Ensure that the terminal is
correctly positioned with the air
inlet grille at the bottom.
• Slide one of the two trim rings
over the air duct until it is flush
with the internal wall face.
INSTALLATION OF THE HORIZONTAL AIR/FLUE DUCT Ø 80/125 WITH
EXTENSIONS
