Vaillant ecoTEC plus 618 - Alternative Termination Accessories Available

Supplied By www.heating spares.co Tel. 0161 620 6677
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
303 936
Optional connection accessories
Telescopic offset section
Telescopic extension
440 mm - 690 mm Ø 60/100
6

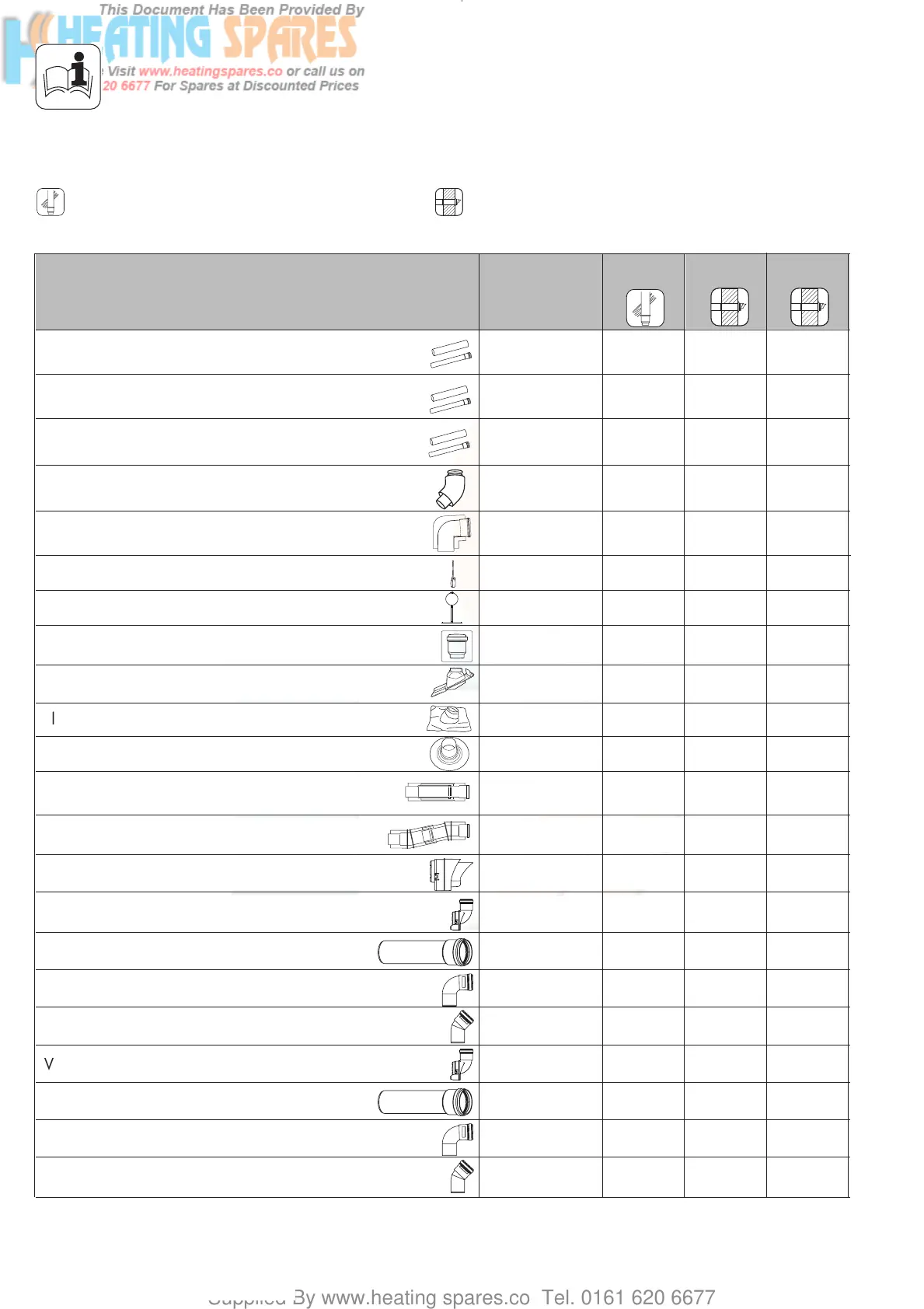

PLANNING THE AIR/FLUE DUCT LAYOUT
Alternative termination accessories available
Air/flue duct extensions, concentric
470 mm - Ø 60/100
Air/flue duct extensions, concentric
970 mm - Ø 60/100
Air/flue duct extensions, concentric
1970 mm - Ø 60/100
Bends (PP), concentric (pack of 2)
45° - Ø 60/100
Elbow, concentric
87° - Ø 60/100
Flue support clips (pack of 5), Ø 100
Sliding sleeve (PP) Ø 60/100
Adjustable roof tiles for pitched roof
303 900 = Vertical air/flue duct (black)
Accy. No.
303 900
303 919
303 906
303 902
303 903
303 905
303 911
x
303 910
303 821
303 915
009076 black
x
x
x
x
x
x
x
x
x
303 933
Black terminal kit for horizontal air/flue duct
303 934
Adjustable flue support clips (pack of 3); Ø 100
303 935
x
Variable termination kit - black
*)
303 942
Extension pipe for variable termination kit VTK
Ø 60 mm 1 m - black
*)
303 943
87° elbow for variable termination kit - black
*)
303 944
45° bend for variable termination kit - black (2 pieces)
303 945

Variable termination kit - white
*)
303 946
Extension pipe for variable termination kit VTK
Ø 60 mm 1 m - white
*)
303 947
87° elbow for variable termination kit - white
*)
303 949
45° bend for variable termination kit - white (2 pieces)
303 948

Flexible pitched roof seal
303 980
x
Flat roof penetration collar
009 056
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
*) delivered with support clips
303 933 = Horizontal air/flue duct
303 936 = Horizontal telescopic air/flue duct
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 6
