PART 1 CONCENTRIC 60/100
Maximum flue length
Maximum flue length
LAS Euro B/S 074/0
LAS Euro B/S 074/0

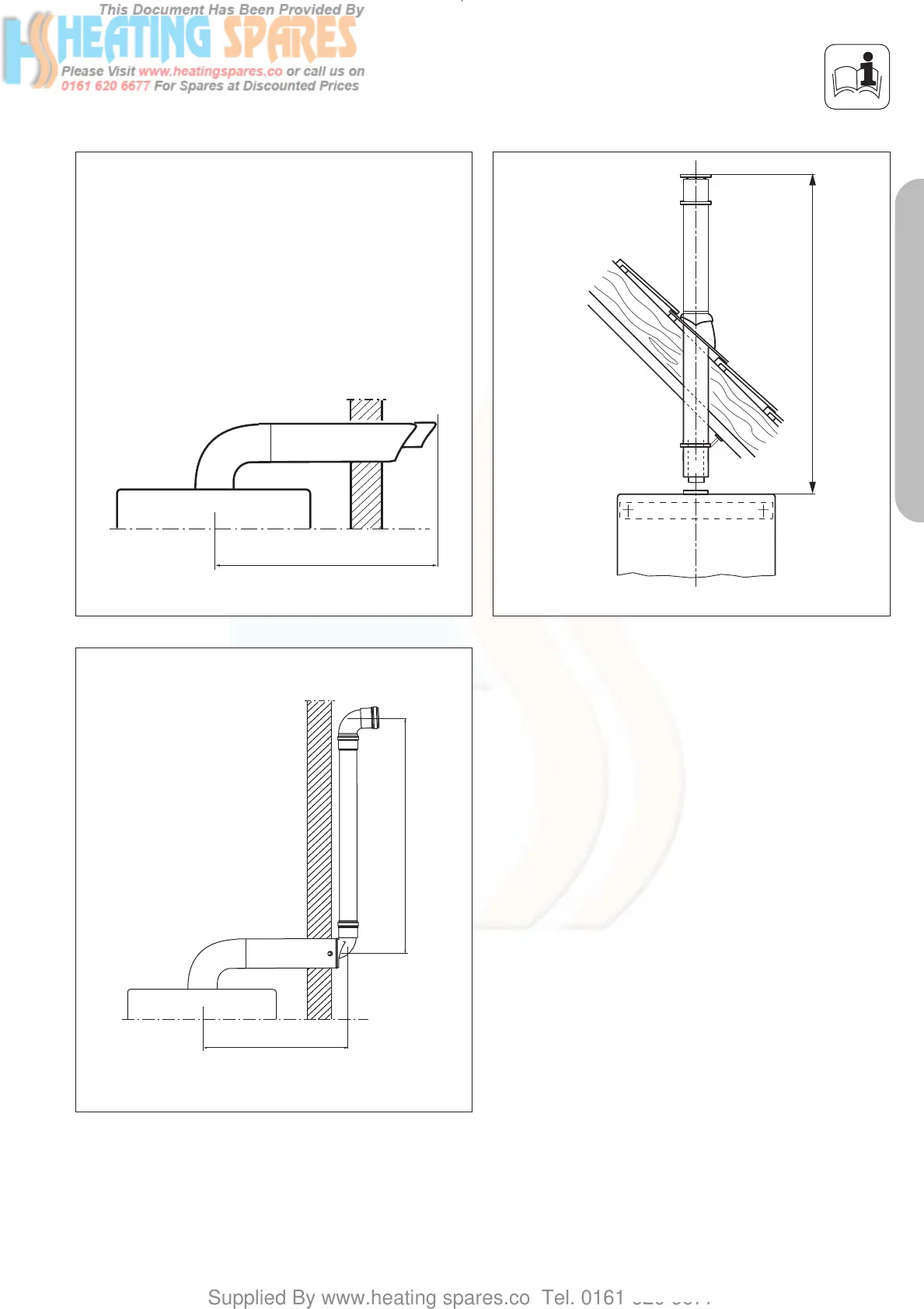

Fig. 1.18: Horizontal flue systems
Fig. 1.19: Vertical flue systems
PLANNING THE AIR/FLUE DUCT LAYOUT
Concentric flue length
Flue length outside
Fig. 1.20: Horizontal flue system installed with vertical termination kit
