INSTALLATION OF THE BLACK TERMINAL KIT

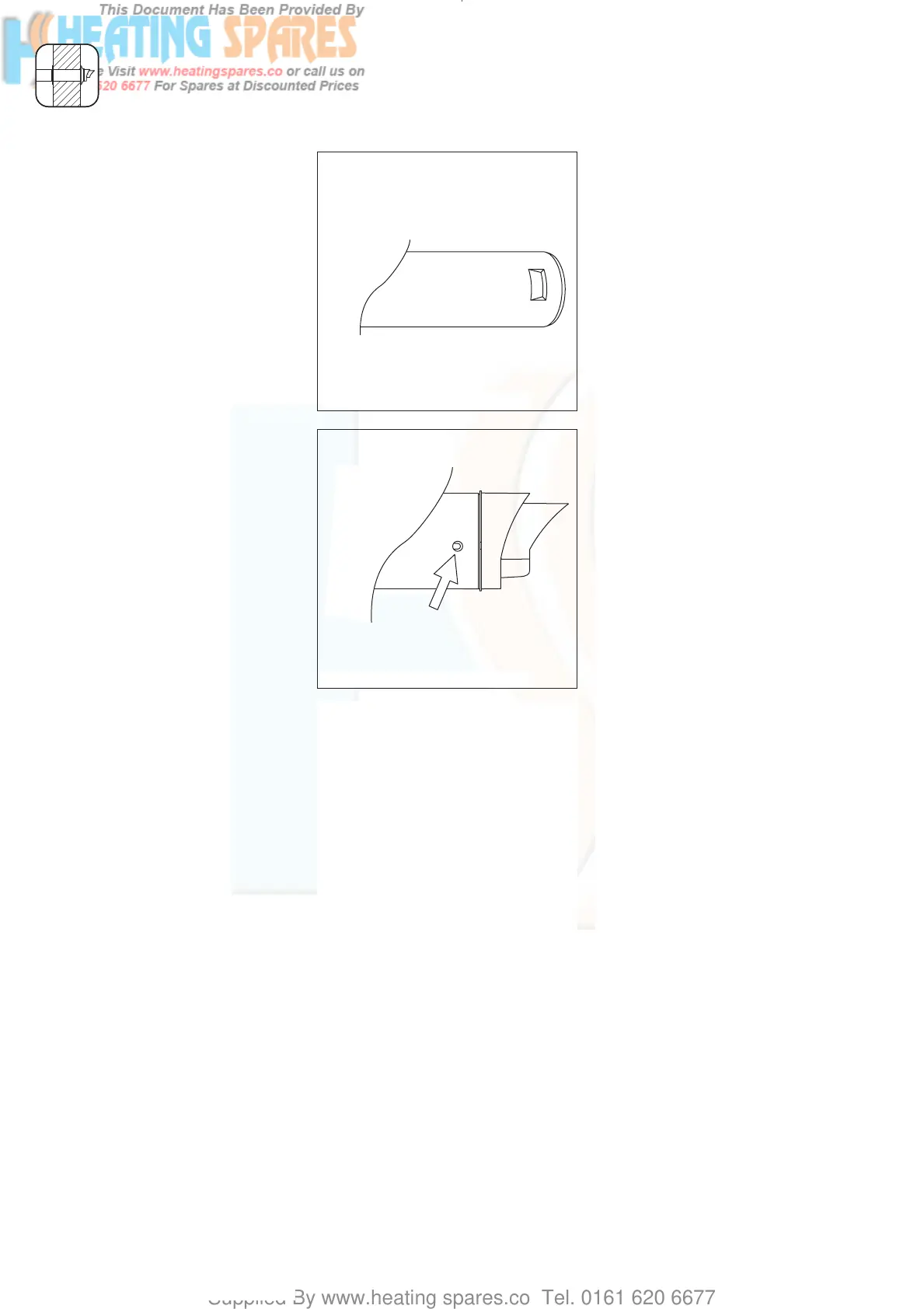

Fig. 3.24: Locking the catch
Fig. 3.23: Flue duct
Assembly
After installing the flue
duct
Danger!
Before starting work, shut down the
appliance and prevent it from being
switched on unintentionally.
• Remove the wall seal from the
terminal.
• Use an 8 mm screwdriver to bend
the catches inwards (fig. 3.20).
• Pull the terminal together with the
flue duct out of the air duct (fig.
3.21).
Caution!
Do not twist the flue duct, because
this might detach the following flue
duct behind the terminal from the
spacer.
• Unlock the catch between the
terminal and the flue duct by
twisting them against each other
(fig. 3.22).
• Pull the terminal off the flue duct.
• Push the new terminal into the flue
duct and click to lock.
☞ Please note: The catch on the top
of the terminal must lock firmly
into the notch in the flue duct (fig.
3.23).
☞ Please note: Make sure the seal
fits tightly.
• Push the flue duct with the
terminal back in the air duct.
Carefully push the flue duct back
into the sleeve of the pipe or bend
behind it. Lock the two catches
(fig. 3.24).
• Fit the wall seal.
Danger!
Before starting up the appliance,
check that the entire flue pipe is
firmly seated and sealed.
