56
How to install
2x 87° elbows
• When using 2 x 87° elbows
follow fig. 6.1 to fig. 6.3 to avoid
obstructions on outer wall.
Note: The elbows must be
correctly aligned to avoid undue
stress on the joints and risk of
leakage.
The elbow fitted to the top of the
boiler (1) should be twisted by 3°
to ensure that the second 87° el-
bow (2) exits the wall perpen-
dicular.
1
2
* = 3
*
1
2
* = 3
*
1
2

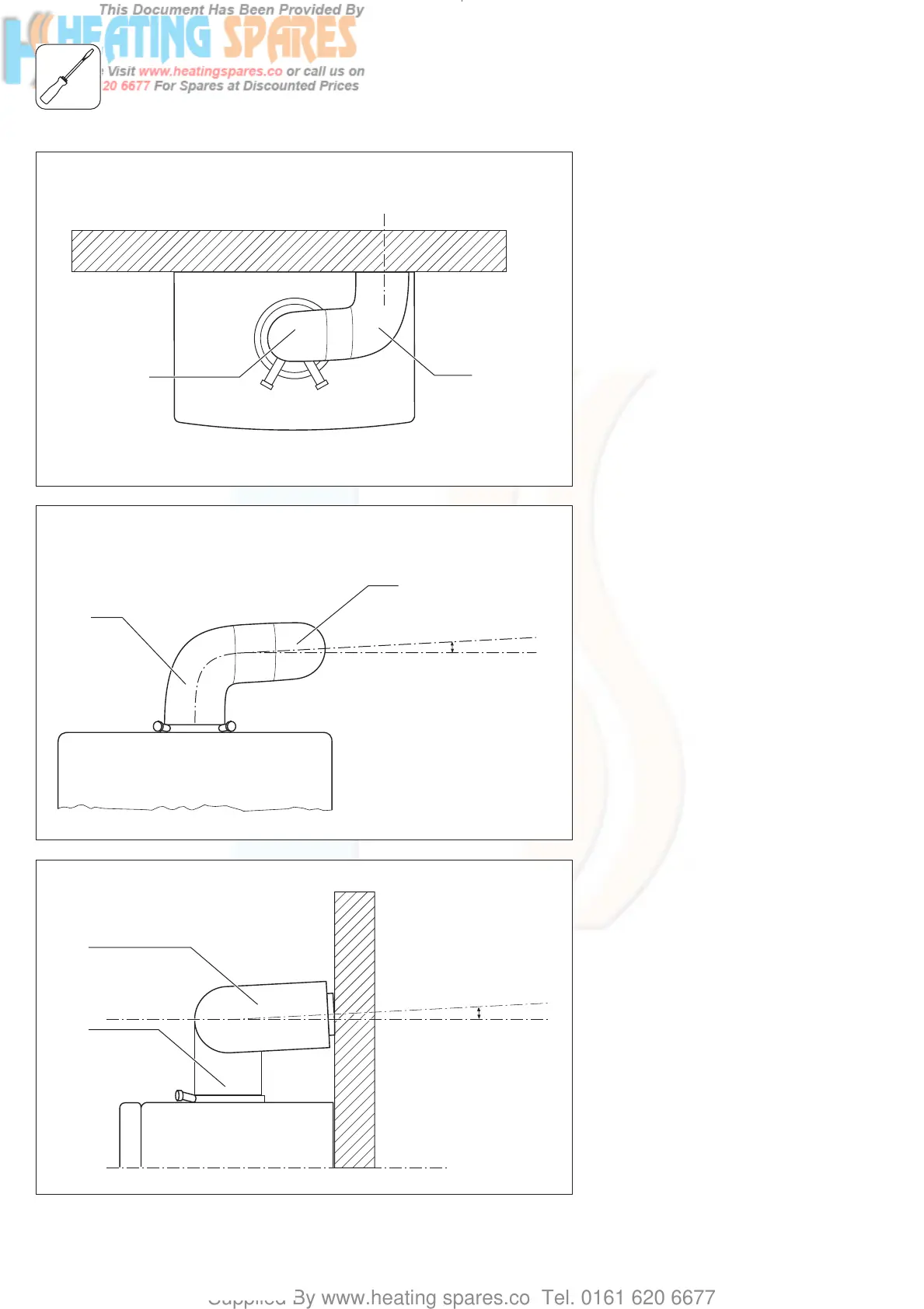

Fig. 6.1: Arrangement of 2 x 87° elbows – View from above
Fig. 6.2: Arrangement of 2 x 87° elbows – View from front
Fig. 6.3: Arrangement of 2 x 87° elbows – View from side
FITTING AIR/FLUE DUCT EXTENSIONS
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 56

Vaillant ecoTEC plus 824 Specifications

General

Model	ecoTEC plus 824
Category	Boiler
Type	Combination Boiler
Output	24 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Efficiency	89.3%
Energy Efficiency Class	A
Mounting	Wall-mounted
ERP Rating	A
DHW Output (kW)	24 kW
Maximum Working Pressure	3 bar
Weight	34 kg
Fuel	Natural Gas
Warranty	5 years
