30
INSTALLATION OF THE VERTICAL AIR/FLUE DUCT
885
warm roof
cold roof
550
Ø100
120
2
1
6
7
750
5
7
4
100- 110

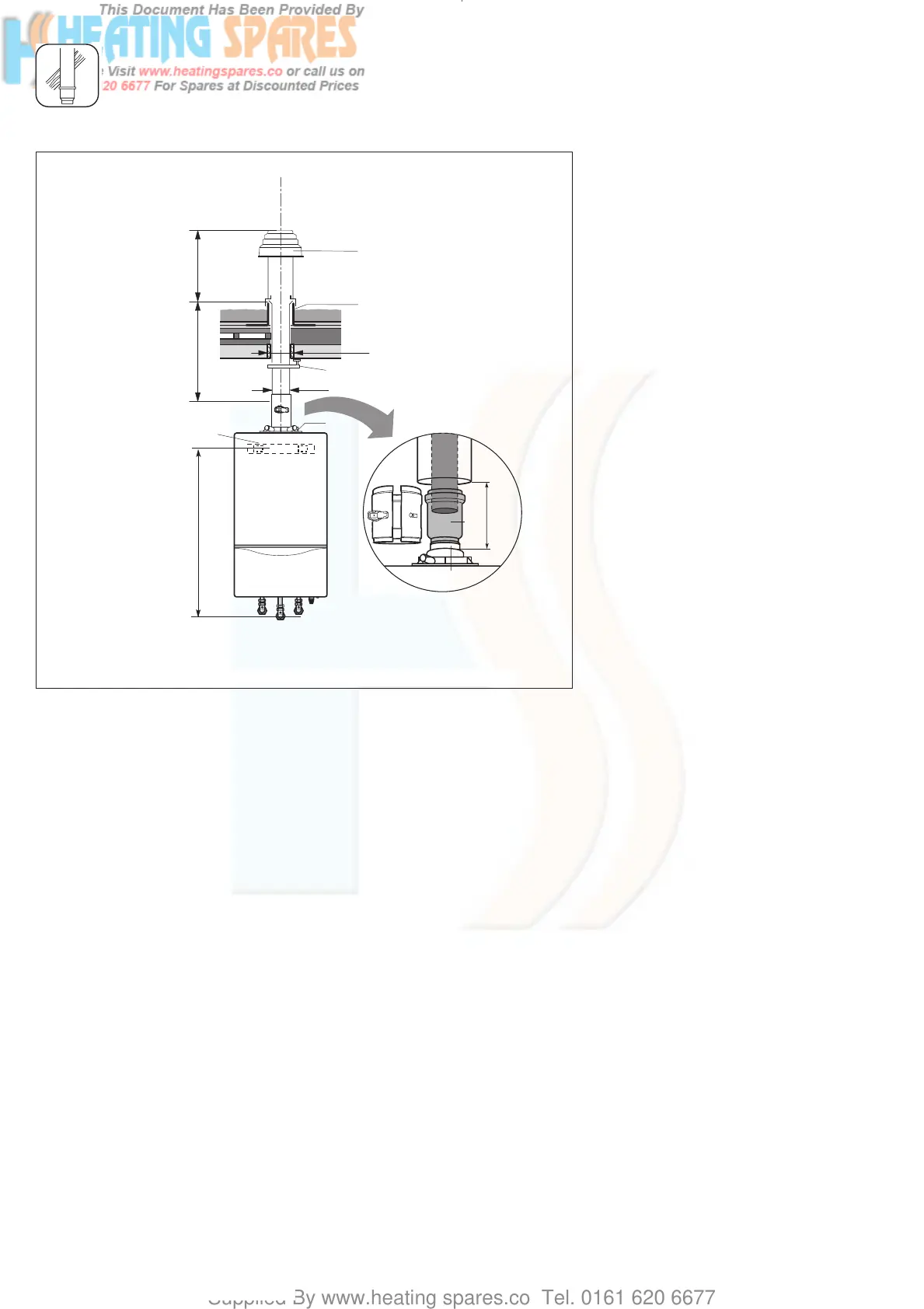

Fig. 5.3: Fitting the appliance and vertical flue duct to a building with a flat roof
Flat-roof installation
• Determine the point where the
vertical air/flue duct and terminal
assembly will penetrate the roof.
• Fit the flat roof penetration collar
(1).
• Stick the flat roof penetration
collar firmly into place with
adhesive in accordance with the
codes of practice for flat roofs
(CP 144) to ensure a watertight
seal.
• Working from above, insert the
vertical roof duct (5) through the
flat roof collar and push it firmly
into place.
• Vertically align the roof duct and
attach it to the roof structure with
the fixing bracket (6) supplied.
• Fit the boiler hanging bracket (2).
• Install the appliance (3) with
reference to the installation and
servicing instructions supplied with
the boiler.
☞ See pages 31 et seq. for further
details on the installation of
extensions and elbows.
• Push the sliding sleeve (4) firmly
into place on the extension.
• Join the vertical roof duct (5) to
the extension (7).
• Join the sliding sleeve (4) to the
appliance’s connection piece (8).
This permits easy separation
between the air/flue duct and the
appliance.
• Drill two holes 3 mm Ø through
the air duct of the flue/boiler
clamp at the most convienient
holes on the air duct clamp.
(Ensure that the drill does not
penetrate the inner flue duct).
Screw the clamp to the air ducts
of the flue assembly and the boiler
using the screws supplied.
• Ensure that any air duct clamps
used are positioned centrally and
fixed to the air duct using the self
tapping screws supplied.
• Note: The air/duct clamp must not
be screwed to the bottom of the
vertical air/flue duct and terminal
accessory to allow for any slight
movement in the roof structure.
• Ensure that at least one pipe
clamp supports the air/flue duct
at each extension fitted.
750 mm ecoMAX
combination and system boilers
530 mm ecoMAX pro and ecoTEC plus open vent
(top holes of bracket)
622 mm ecoTEC plus system & combination
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 30

Vaillant ecoTEC plus 824 Specifications

General

Model	ecoTEC plus 824
Category	Boiler
Type	Combination Boiler
Output	24 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Efficiency	89.3%
Energy Efficiency Class	A
Mounting	Wall-mounted
ERP Rating	A
DHW Output (kW)	24 kW
Maximum Working Pressure	3 bar
Weight	34 kg
Fuel	Natural Gas
Warranty	5 years
