PLANNING THE AIR/FLUE DUCT LAYOUT

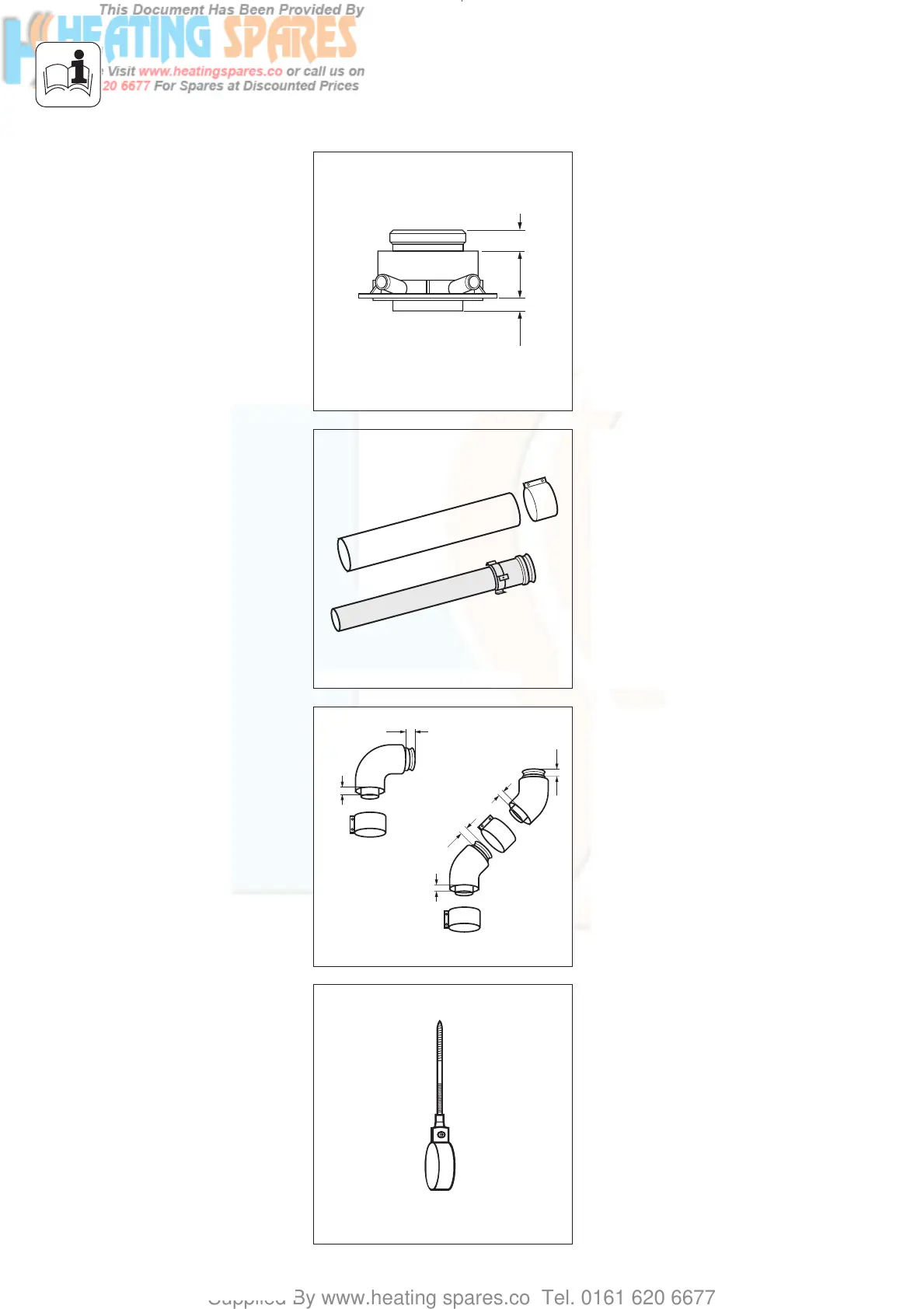

Fig. 1.2: Extensions, Ø 80/125
Fig. 1.4: Flue support clips, Ø 125 or Ø 80
Flue support clips, Ø 125 (pack of 5)
Vaillant Accy. No.: 303 616
☞ Use one clip per extension to
support the air/flue duct.
15
25
15
25
15
25
Fig. 1.3: Elbow joints, Ø 80/125
Elbow (PPs), 87°, Ø 80/125
Vaillant Accy. No.: 303 210
Bends (PPs), 45° (pack of 2),
Ø 80/125
Vaillant Accy. No.: 303 211
Air/flue duct extension (PPs) 470 mm,
Ø 80/125
Vaillant Accy. No.: 303 202
Air/flue duct extension (PPs) 970 mm,
Ø 80/125
Vaillant Accy. No.: 303 203
Air/flue duct extension (PPs)1970 mm,
Ø 80/125
Vaillant Accy. No.: 303 205
GU_LAZ 70/0
GU_LAZ 72/0
GU_LAZ 71/0
58
25
18
Fig. 1.1: Appliance connection piece
Appliance connection piece
Ø 80/125
Vaillant Accy. No.: 303 926
(with 2 measuring apertures)
