Notes on the documentation 2
0020134823_07 ecoTEC plus Installation and maintenance instructions 7
2 Notes on the documentation
2.1 Observing other applicable documents
▶ Always observe all the operating and installation instruc-
tions included with the system components.
2.2 Storing documents
▶ Pass these instructions and all other applicable docu-
ments on to the end user.
2.3 Validity of the instructions
These instructions apply only to:
Product article number
Article num-
ber
Gas Council
Number
806 (VU GB 806/5‑5)
0010010767 41-044-68
1006 (VU GB 1006/5‑5)
0010010780 41-044-69
1206 (VU GB 1206/5‑5)
0010010791 41-044-70
2.4 Benchmark
Vaillant is a licensed member of the Benchmark Scheme.
Benchmark places responsibilities on both manufacturers
and installers. The purpose is to ensure that customers are
provided with the correct equipment for their needs, that it is
installed, commissioned and serviced in accordance with the
manufacturer’s instructions by a competent person approved
at the time by the Health and Safety Executive and that it
meets the requirements of the appropriate Building Regu-
lations. The Benchmark Checklist can be used to demon-
strate compliance with Building Regulations and should be
provided to the customer for future reference.
Installers are required to carry out installation, commission-
ing and servicing work in accordance with the Benchmark
Code of Practice which is available from the Heating and
Hotwater Industry Council who manage and promote the
Scheme.
Benchmark is managed and promoted by the Heating and
Hotwater Industry Council.
For more information visit www.centralheating.co.uk
3 Product description
3.1 Design of the product

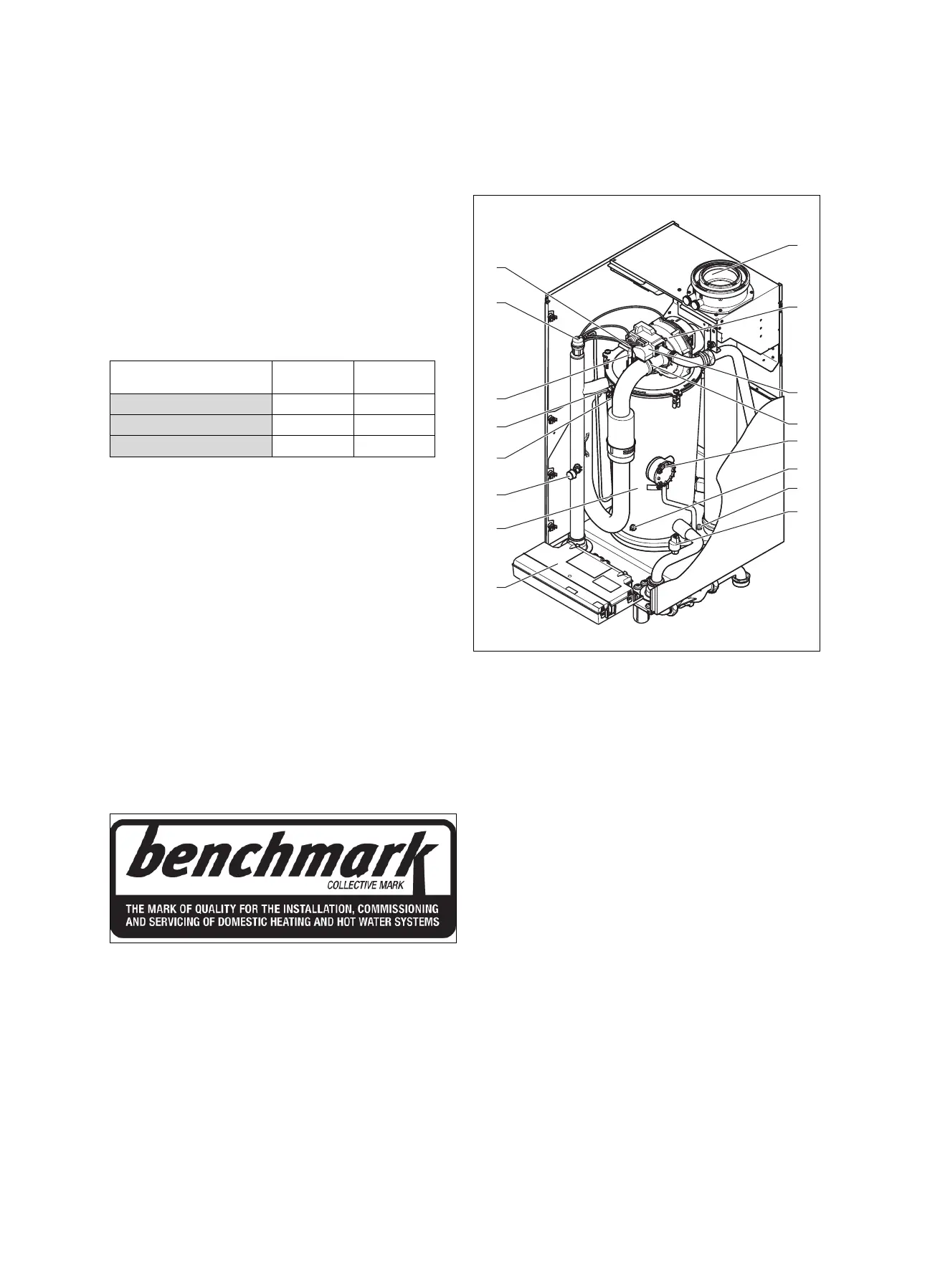

3.1.1 Functional elements (806/5‑5)
1
2
3
4
6
5
7
8
10
9
12
13
14
15
16
11
1 Connection for the
air/flue pipe
2 Fan
3 Gas valve assembly
4 Connection for air in-
take pipe
5 Flue pressure switch
6 Return temperature
sensor
7 Safety cut-out (flue gas)
8 Water pressure sensor
9 Electronics box
10 Integral condensation
heat exchanger
11 Manometer
12 Flow temperature
sensor
13 Safety cut-out
14 Ignition electrode
15 Automatic air vent
16 Monitoring electrode
