87Installation instructions geoTHERM VWS/VWW 0020057444_01

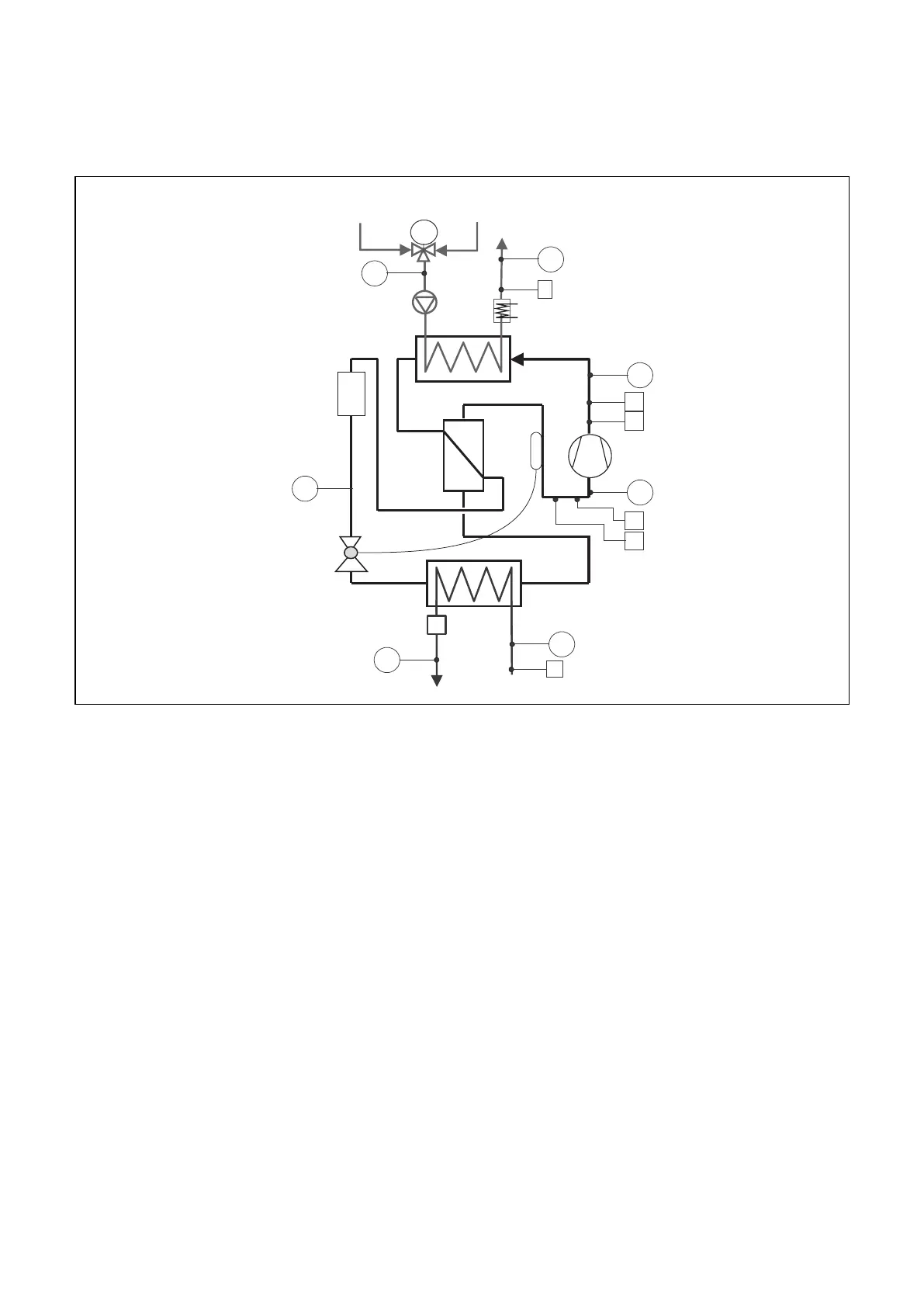

Heat pump schematic - VWW
9
12
10
5
T2
13
11
8
T3
T8
2
T6
T5
M
T1
3
4
6
7
1
T4
14
15
16
M
Fig. 2, Appendix, Heat pump schematic - VWW
Key to Fig. 2, Appendix
1 Heating circuit pressure sensor
2 Electric auxiliary heating
3 High pressure sensor
4 High pressure switch
5 Compressor
6 Low pressure sensor
7 Low pressure switch
8 Heat source circuit pressure sensor
9 Evaporator
10 Flow Switch
11 Expansion Valve
12 Condenser
13 Filter drier
14 DHW return line
15 Heating return
16 Heating feed
Appendix
