Vaillant turboMAX plus 2 E Series Installation Instructions

15
INSTALLATION OF THE HORIZONTAL AIR/FLUE DUCT (REAR OUTLET)
(TURBOMAX AND THERMOCOMPACT ONLY)
• Secure the boiler hanging bracket
(1) to the wall using the screws
provided (2).
• At this stage it is necessary to
prepare and fit the boiler onto the
hanging bracket – refer to the
boiler installation instructions.
3
402
171
174,5
12,5
1
1
2

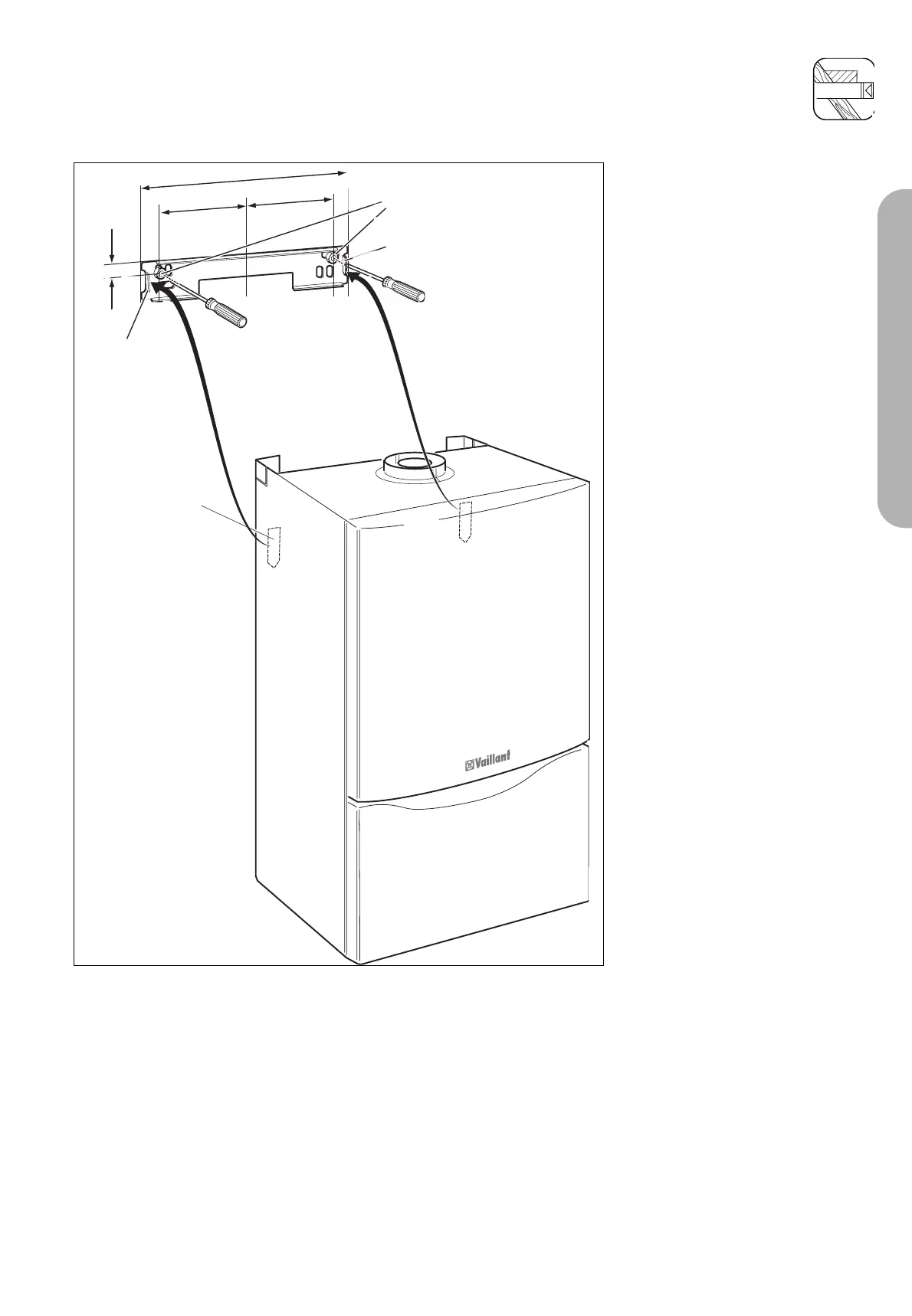

Fig. 3.3
LAS Euro B/S 054/0GB
PART 1 CONCENTRIC 60/100
