Installation
Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 7
4
4 Installation
a
Risk of death!
Risk of death due to improper
installation!
All work involved in the installation, start-
up, maintenance and repair of the electron-
icVED exclusive electric instantaneous
water heater must only be carried out by a
recognised competent person, who also
assumes the responsibility for installing the
unit properly and commissioning it for the
first time. The electronicVED exclusive elec-
tric instantaneous water heater must be
installed in strict compliance with these
installation instructions.
i
Flush the cold water pipes thoroughly before
installation.

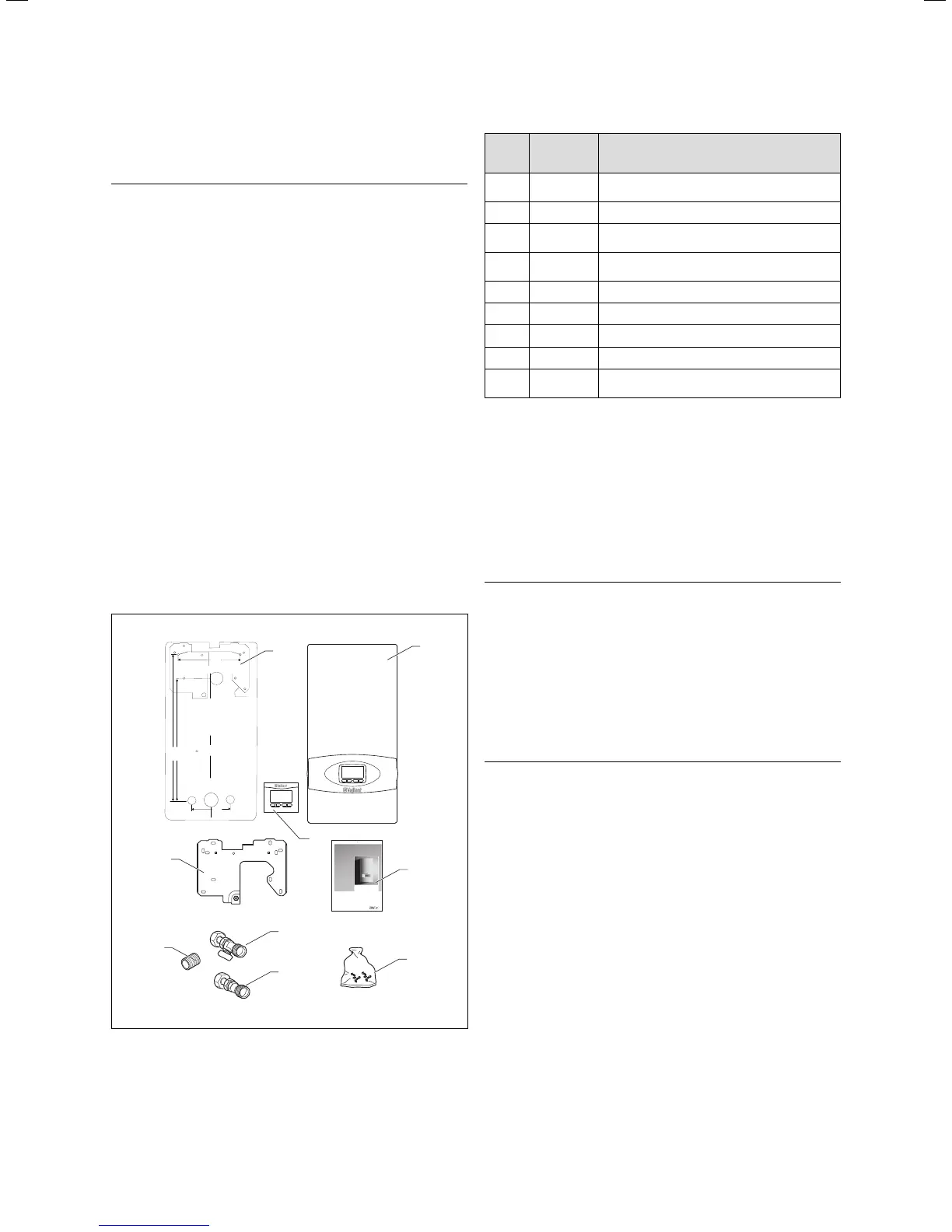

4.1 Scope of delivery
> Check that the scope of delivery is complete (see
Table 4.1).
Instructions for use and installation
EXPen
electronicVED exclusive
390
322
Hot water connection
Cold water connection
Electrical connection
from below
If required:
Add. fixing point on back wall
Installation template
for VED
100
Electrical connection from above
170
Mounting plate
Fixing points
3
7
6
2
1
8
4
5
9
4.1 Scope of delivery
No. Quantity Name
11
electronicVED exclusive electric instantane-
ous water heater
2 1 Operating and Installation Manual
31
Carton containing fixings (2 bolts, 2 rawl
plugs, 1 seal, 1 special fixing screw)
41
R 1/2 cold water connection piece with a
cold water stop valve
5 1 R 1/2 hot water connection piece
6 2 Double nipple
7 1 Installation plate
8 1 Installation template
91
Radio remote control with 2 batteries (no
illustration)
4.1 Scope of delivery
The electronicVED exclusive electric instantaneous water
heater is completely pre-assembled. Once the unit has been
fitted to the wall, only the water and electrical installation
needs to be completed.
4.2 Installation site
b
Caution.
Risk of frost damage to the unit.
If an electronicVED exclusive electric
instantaneous water heater is placed out of
operation for a relatively long period of
time in an unheated room in cold weather,
the water in the unit and pipes may freeze.
This results in damage to the unit.
> Install the unit in a permanently frost-
free room.
i
The electronicVED exclusive electric instantane-
ous water heater meets the current safety regu-
lations for protected zone 1 and can therefore
also be installed above a bath or in a shower
area.
> Wherever possible, install the unit near the draw-off
point that will be most used.
