Installation
Installation instructions for the electronicVED exclusive electric instantaneous water heater 0020176440_00 9
4
4.4.2 Removing the unit cladding
1
3
4
2
5

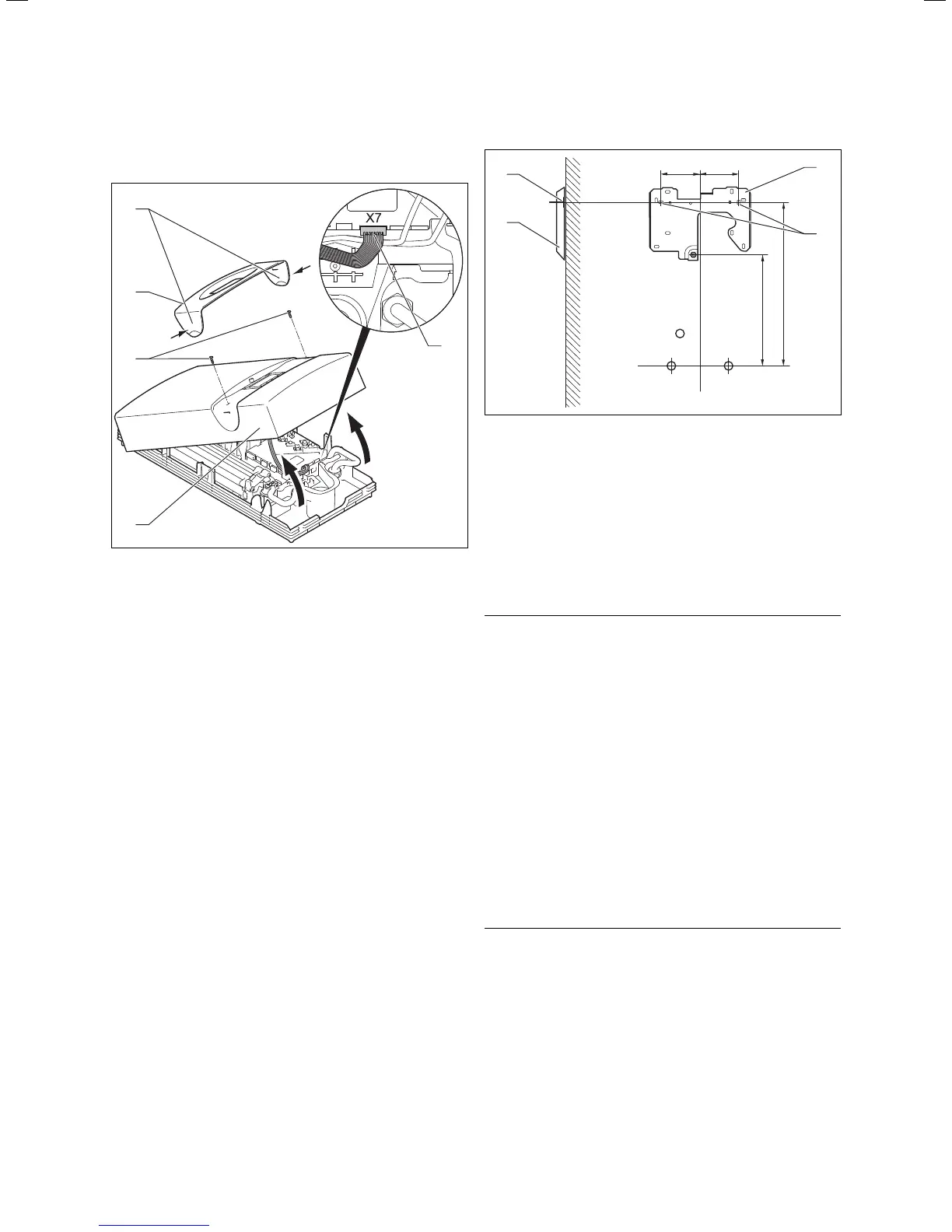

4.5 Removing the unit cladding
> Grip the two straps (1) on the panel (2).
> Splay the two straps (pull them away from the unit).
> Remove the panel (2).
> Undo both bolts (3).
> Fold up the cover (4).
> Remove the display plug from the unit's electronics
(slot X7) (5).
> Remove the cover (4) from the unit.
4.4.3 Installing the unit
i
The electronicVED exclusive electric instantane-
ous water heater must be mounted on the wall
vertically.
> Ensure that the wall and all fixing elements are able to
bear the load. An electronicVED exclusive weighs approx.
4.4 kilos when filled with water.
> Using figures 4.2 to 4.4, double check that the desired
installation location meets the requirements.
390
322
8585
2
1
1
2
4.6 Fitting the installation plate
> Hold the installation template against the wall and mark
the fixing points.
> Fix the installation plate (1) to the fixing points (2) using
the rawl plugs and bolts.
i
When replacing a unit, you can use the previous
drill holes as long as they are compatible with
the additional holes on the installation plate.
e
Danger!
Risk of death from electric shock due to
water penetration if the anti-spray-water
sleeve is completely cut away.
The anti-spray-water sleeve should prevent
water penetrating the unit along the length
of the mains connection cable. If the anti-
spray-water sleeve is completely cut away,
water can very easily penetrate and dam-
age the unit and, in the worst case sce-
nario, can cause a potentially lethal electric
shock.
> Never cut off the anti-spray-water sleeve
completely.
> Cut the end of the anti-spray-water
sleeve in such a way that the sleeve
tightly surrounds the mains connection
cable.
