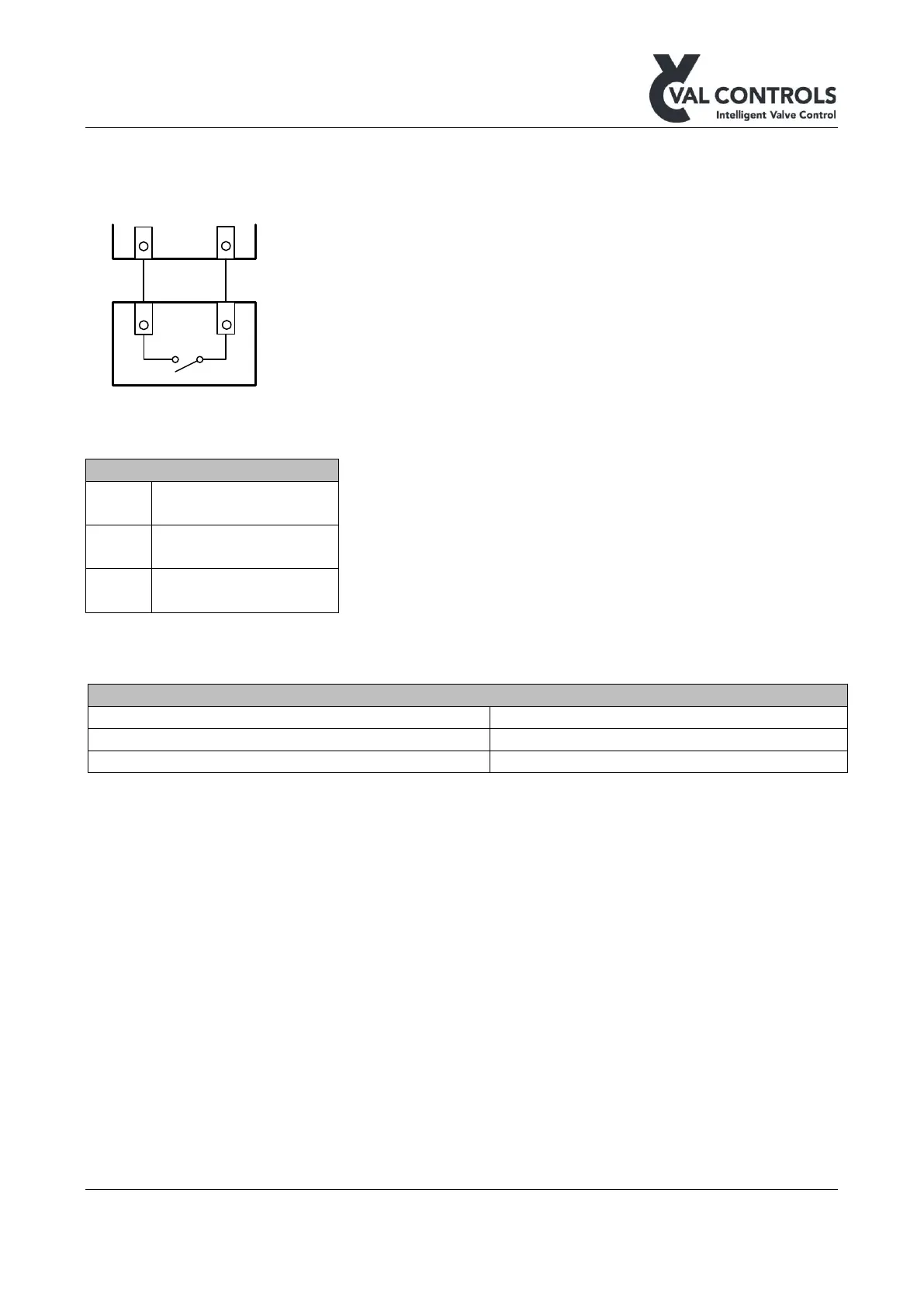

3.5 Digital input – DI1, DI2, DI3
Use digital inputs to connect dry signals.
DI
+
-
Switch
+
-
3.5.1 Terminals
DI1
39 (+)
40 (-)
DI2
41 (+)
42 (-)
DI3
43 (+)
44 (-)
3.5.2 Electrical specifications
DI – Switch
Type
Switch
Cable length
20 meters
Maximum cable resistance
100 Ohm
