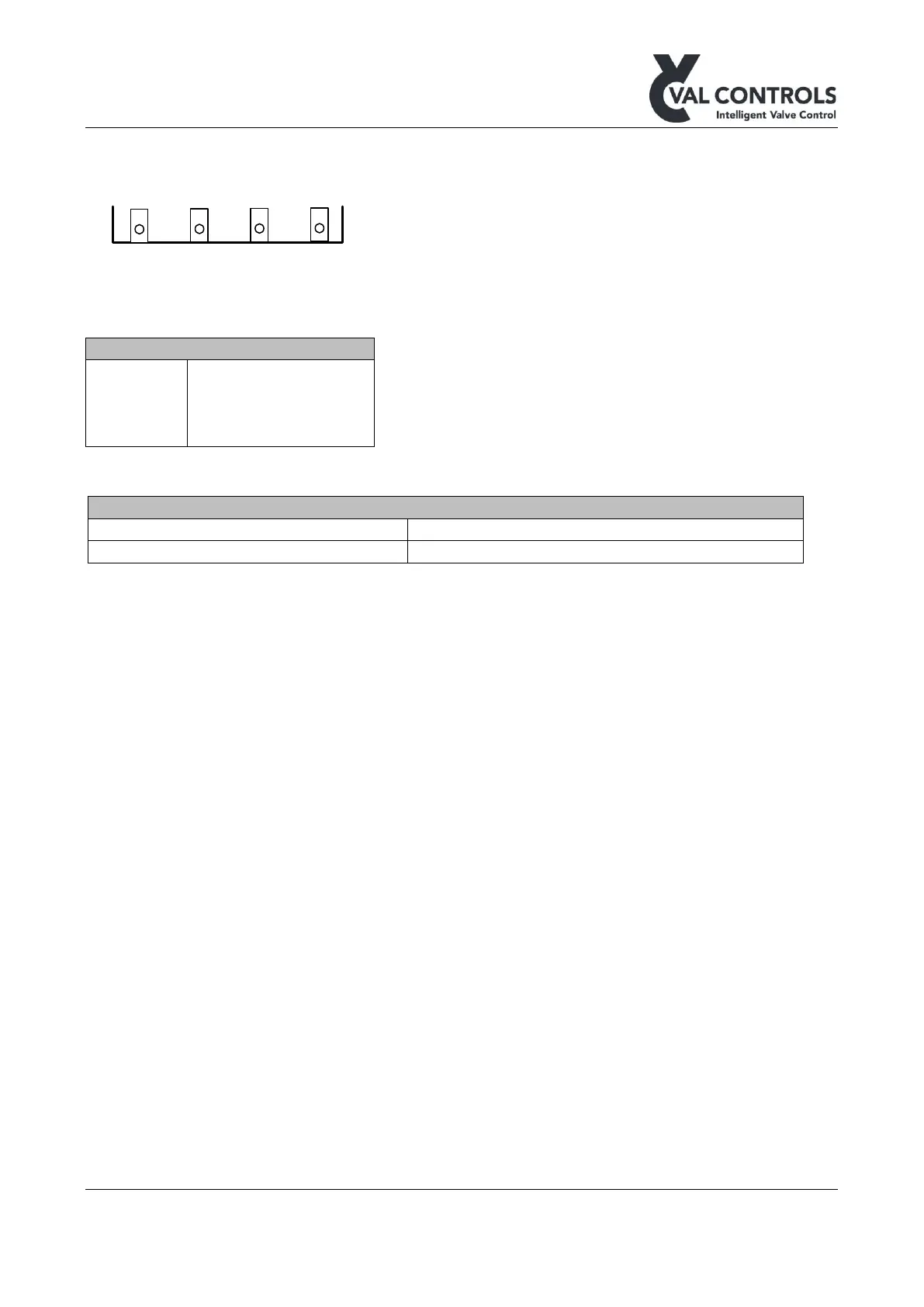

2.3 Foundation Fieldbus
Foundation Fieldbus
4
3
2
1
FB-P FB-N FB-P FB-N
2.3.1 Terminals
Foundation
Fieldbus
1 (FB-P)
2 (FB-N)
3 (FB-P)
4 (FB-N)
2.3.2 Electrical specifications
FF-Fieldbus
Interface
FF-Fieldbus - H1 Device Class – Basic Device
Termination
No internal termination
