Analogue Output (AO)

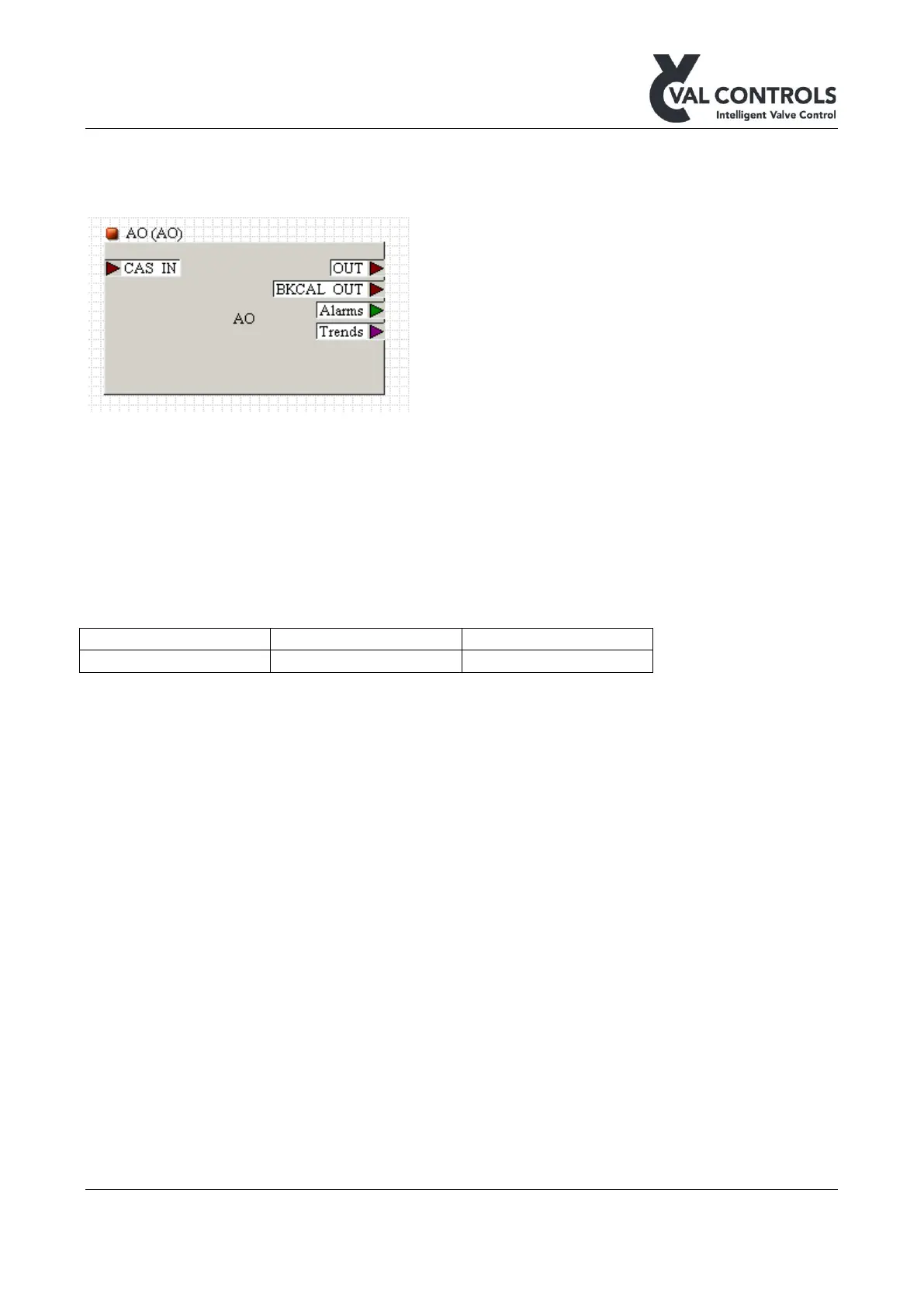

Analog output function block, used to transmit output data to transducer block, acting on the
physical device.
In the Default setting:
In “Cascade Mode” the Val Controls Device gets its SP ( Setpoint ) from the “CAS_IN” Input.
Values of the “CAS_IN” should be in the range from “0.00% - 100.00%”
“OUT” contains the same value as “CAS_IN”
Configuration
Block
Signal in Val Controls
CAS_IN Values:
AO.OUT
SP – Flow %
0.00% - 100.00%
