Section 4 - Programming
MC075 - MCP-4 Control Unit
Memory
(Backup)
x2
x2
x2
x2
x2
Backup
Backup
Backup
Backup
Backup -

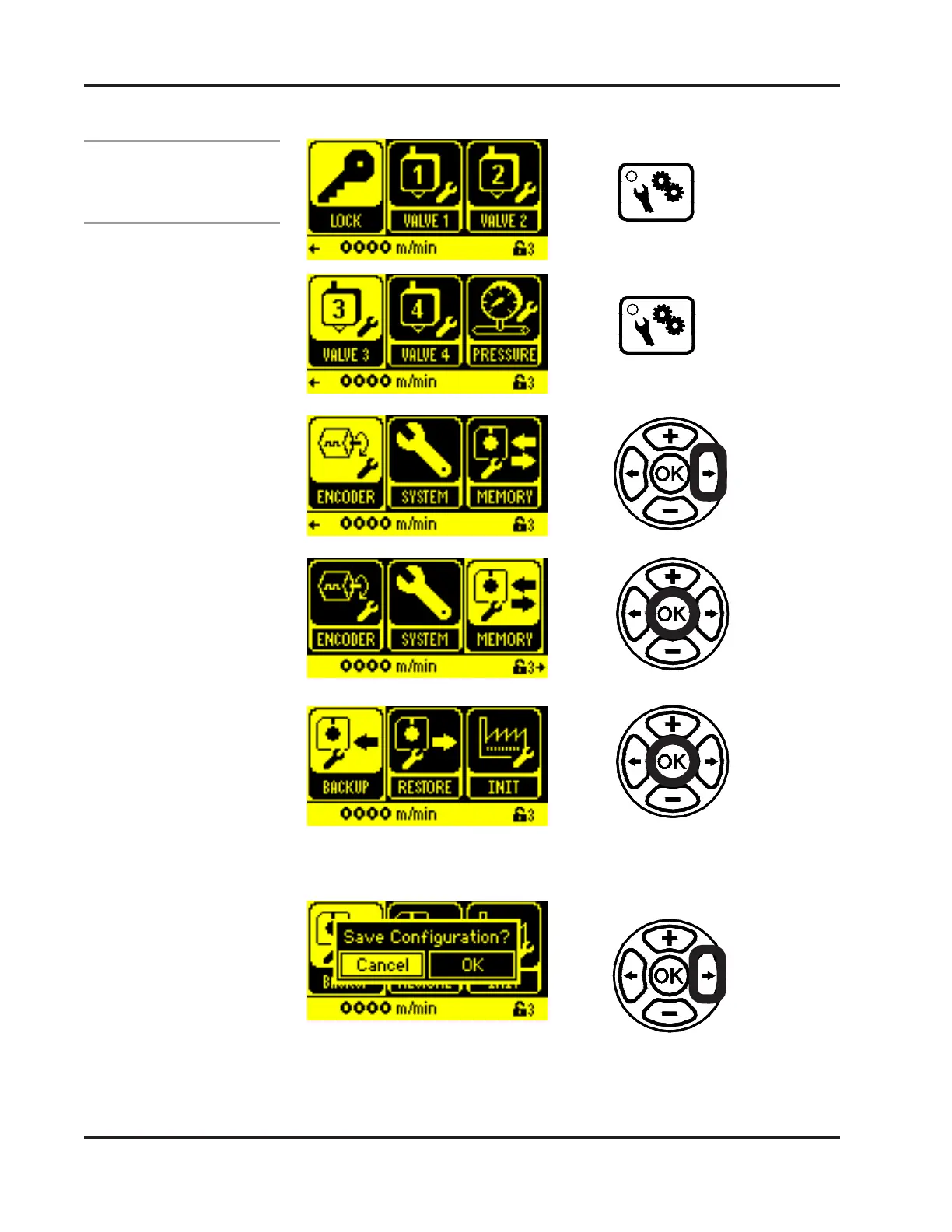

Saves all configuration settings into memory so they are not lost.
The backup can be used to restore the system configuration, if necessary.
Press the Right Arrow Button to highlight “OK.”
