MC075 - MCP-4 Control Unit Section 4 - Programming
Speed Calculation Immediate/AverageSpeed Calculation Immediate/Average
Speed Calculation Immediate/AverageSpeed Calculation Immediate/Average

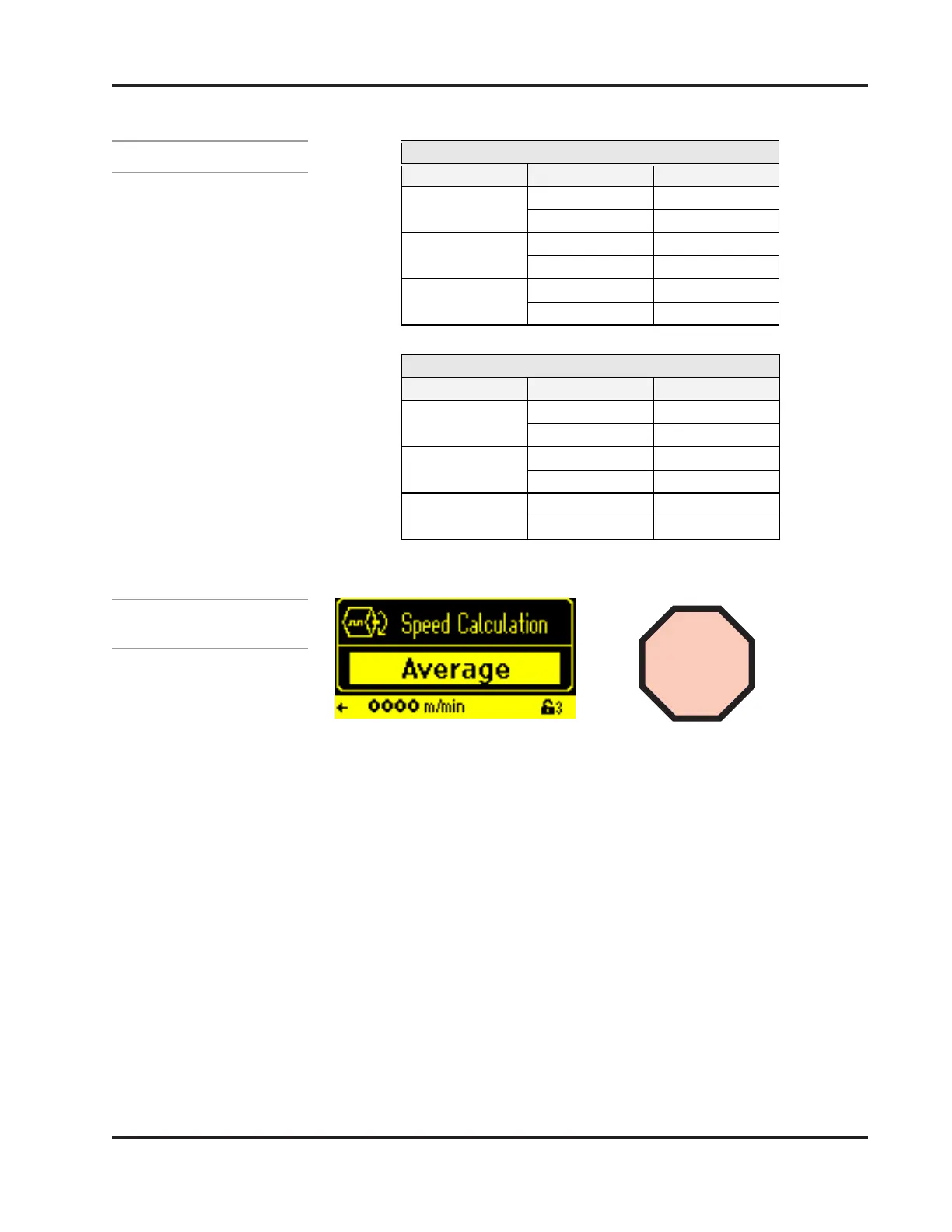

Speed Calculation Immediate/Average - “Average” is the default setting
and will work for the majority of jobs. However, if an immediate reaction to a
change of the encoder speed is needed, the setting should be changed to
“Immediate.”
Speed Calculation
Ratio Compensation - Continued
Red Encoder Wheel
Pulses Setup Circumference
Metric 250 mm
1000
Imperial 9.84 inches
Metric 250 mm
500
Imperial 9.84 inches
Metric 250 mm
250
Imperial 9.84 inches
Black Encoder Wheel
Pulses Setup Circumference
Metric 254 mm
1000
Imperial 10.0 inches
Metric 254 mm
500
Imperial 10.0 inches
Metric 254 mm
250
Imperial 10.0 inches
