SMART HATCH
10
The roof hatch must be installed onto a smooth sur-
face to allow proper sealing of butyl tape between
frame and outer roof material. Any variations or
deviations can result in water intrusion, proper roof
preparation is the responsibility of the installer.
CAUTION
3.1.4. Position the hatch so that the red han-
dle is at the back of the opening (towards the
rear of the vehicle). Center the hatch inside
the roof opening so that the gap is equal
on all four sides of the cut-out. Make certain
that the butyl seal adheres completely.
3.1.5. Once the hatch is in position, pull
down on the outer flanges to set the bu-
tyl seal and adhesive all four sides.

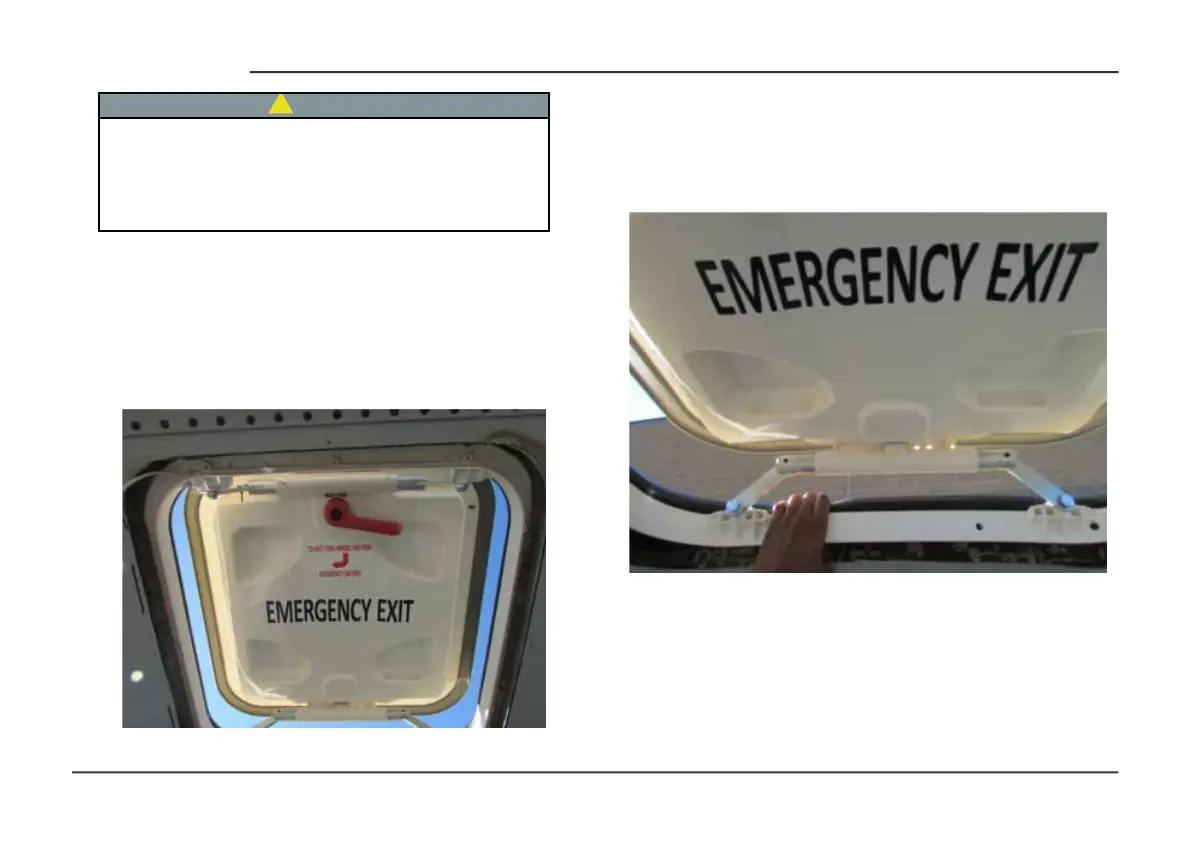

(Photo 5: SMART Hatch Assembly)
(Photo 6: SMART Hatch Assembly)
