603
Thermo E+ 120/200/320 6 Wiring diagrams
Item Description
F1 Car flat-type fuse 30A at 12V / 25A at 24V acc. to
DIN 72581 part 3 or ISO 8820-3
F2 Car flat-type fuse 5A acc. to DIN 72581 part 3 or
ISO 8820-3
BA Operation indicator max. 5 W
UP Circulating pump
HS Main switch
UPFA Circulating pump external control
T Connector/connection of temperature sensors
C Connector/connection to vehicle
P Connector/connection circulating pump
Legend for hook-up diagram

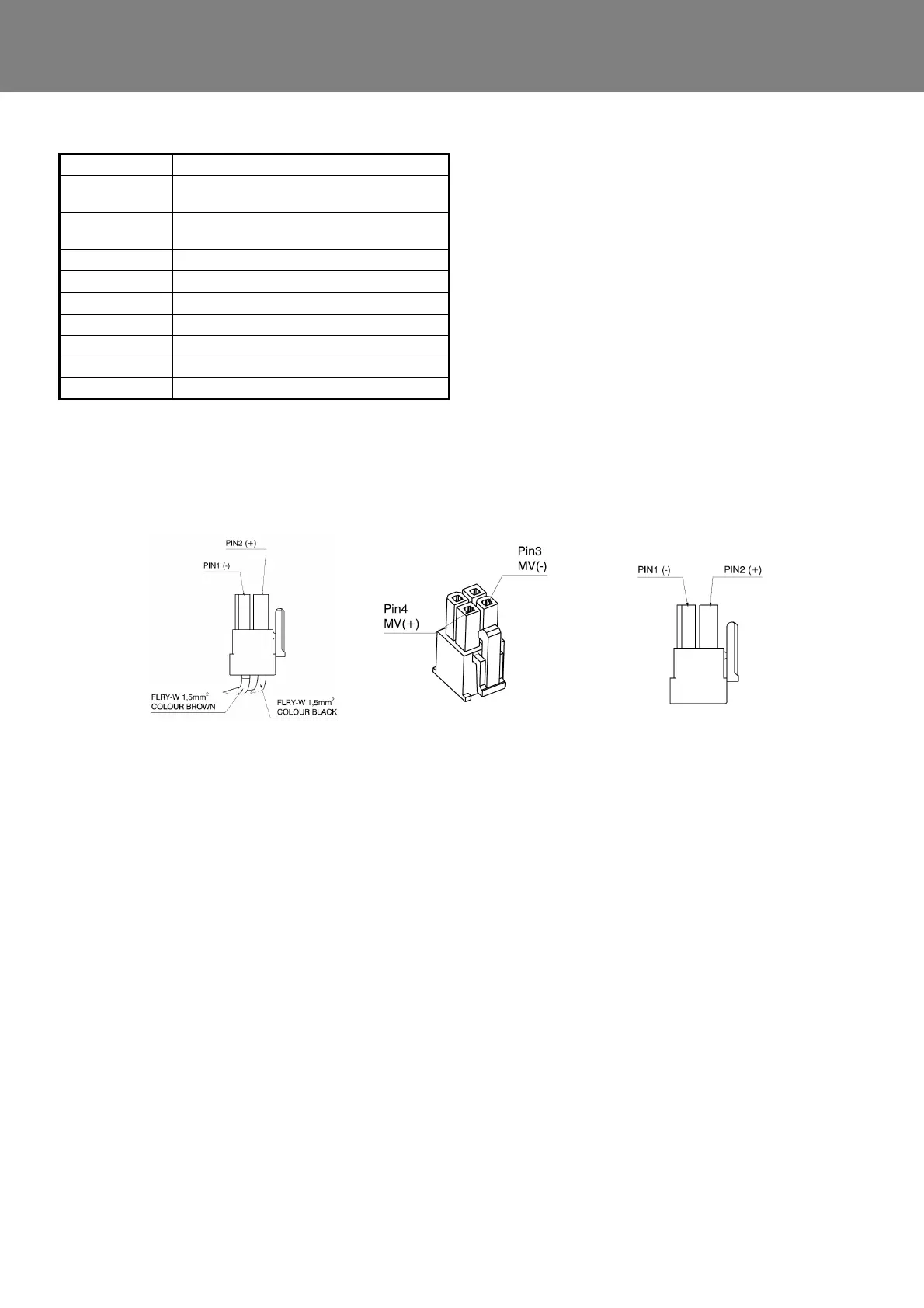

Fig. 603 Connector pin assignment
ATTENTION:
There are 2 versions of the nozzle
block preheater heating element
(see 3.1.6).
Nozzle Block PreheaterMotor Solenoid Valve
