Thermo E+ 120/200/320 8 Repairs

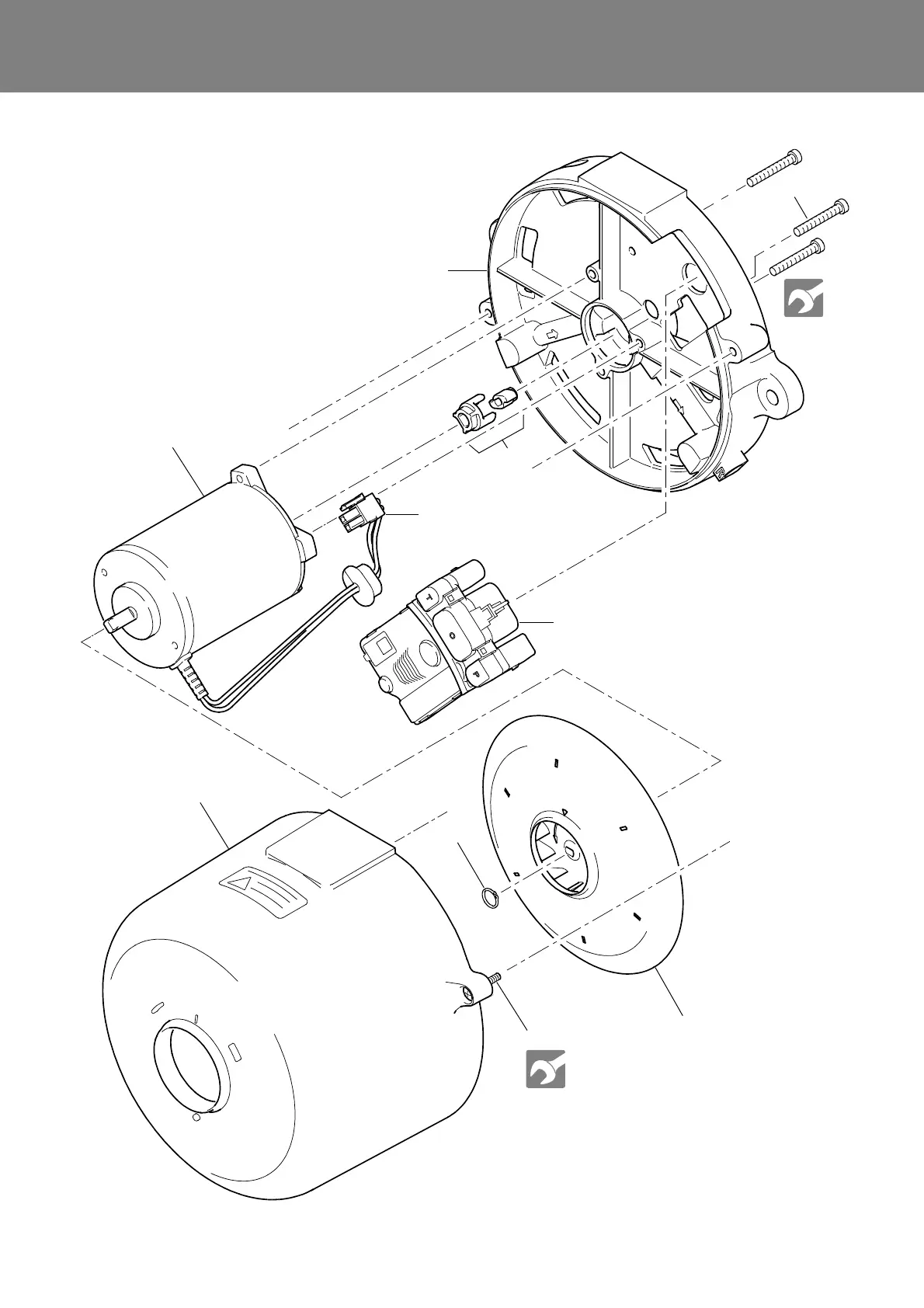

Fig. 804 Component removal and installation (1)
1Hood
2 Screws, hood (2)
3 Shaft circlip
4 Fan wheel
5 Burner motor
6 Screws, motor (3)
7 Motor connector
8 Coupling (two-part)
9Fuel pump
10 Control device
5
1
2
3
4
6
7
9
10
2 +0.5 Nm
5 ±0.5 Nm
A
A
B
B
8
