Thermo E+ 120/200/320 8 Repairs

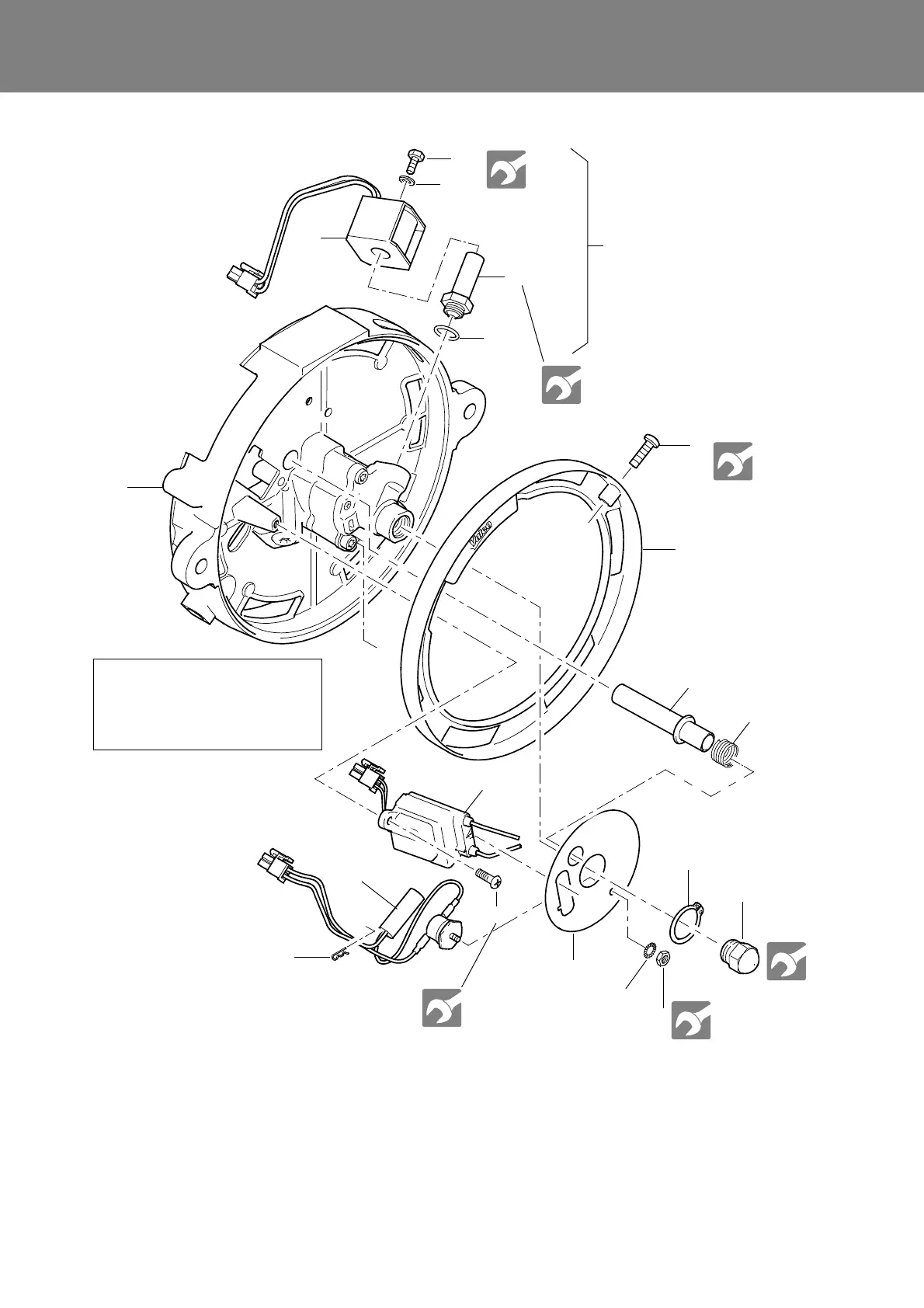

Fig. 805 Component removal and installation (2)
1 Fuel nozzle
2 Circlip
3 Serrated washer
4Nut
5 Disc
6 Nozzle block preheating (opt.)
7 Electronic ignition unit
8Screw
9Fuel pump
10 Spring
11 Dust protection tube
12 Adjustment ring
13 Screw
14 Solenoid valve assy
15 Solenoid valve coill
16 Sleeve with hexagon
17 Spring washer
18 Screw
19 Gasket ring
20 Heating element retaining clip
nozzle block preheating (opt.)
9
1
2
3
4
5
6
7
8
10
11
12
13
15
16
17
18
19
14
20 ±2 Nm
A
A
20
ATTENTION:
There are 2 versions of the
nozzle block preheater heating
element (see 3.1.6).
1.5 Nm ±10%
5 Nm ±10%
2 +0.5 Nm
2 +0.5 Nm
1 +0.2 / -0.3 Nm
