INSTALLATION: Direct-wire Power Adapter
An adapter has been provided so that you can wire
Valentine One directly into your car’s electrical system.
If you are unfamiliar with automotive electrical systems,
see a mechanic or car-stereo installer:
1. Valentine One works only with negative ground
electrical systems. If your car is old, or is an unusual
brand of import, make sure it’s negative ground.
2. Select a “switched” wire, i.e., one that’s off when the
ignition is switched off, and has 12 volts when the
ignition is switched on.
3. Position wiring-harness connector around “switched”
wire and squeeze with pliers to install.
4. Plug red wire from Direct-wire Power Adapter into
wiring-harness connector.
5. Make ground connection by clamping the end of the
black wire under any grounded screw.
6. Plug power cord from Valentine One into the modular
jack labeled “Main” on the Direct-wire Power Adapter.
Pinch connector around power wire.
Connector plugs into red wire.

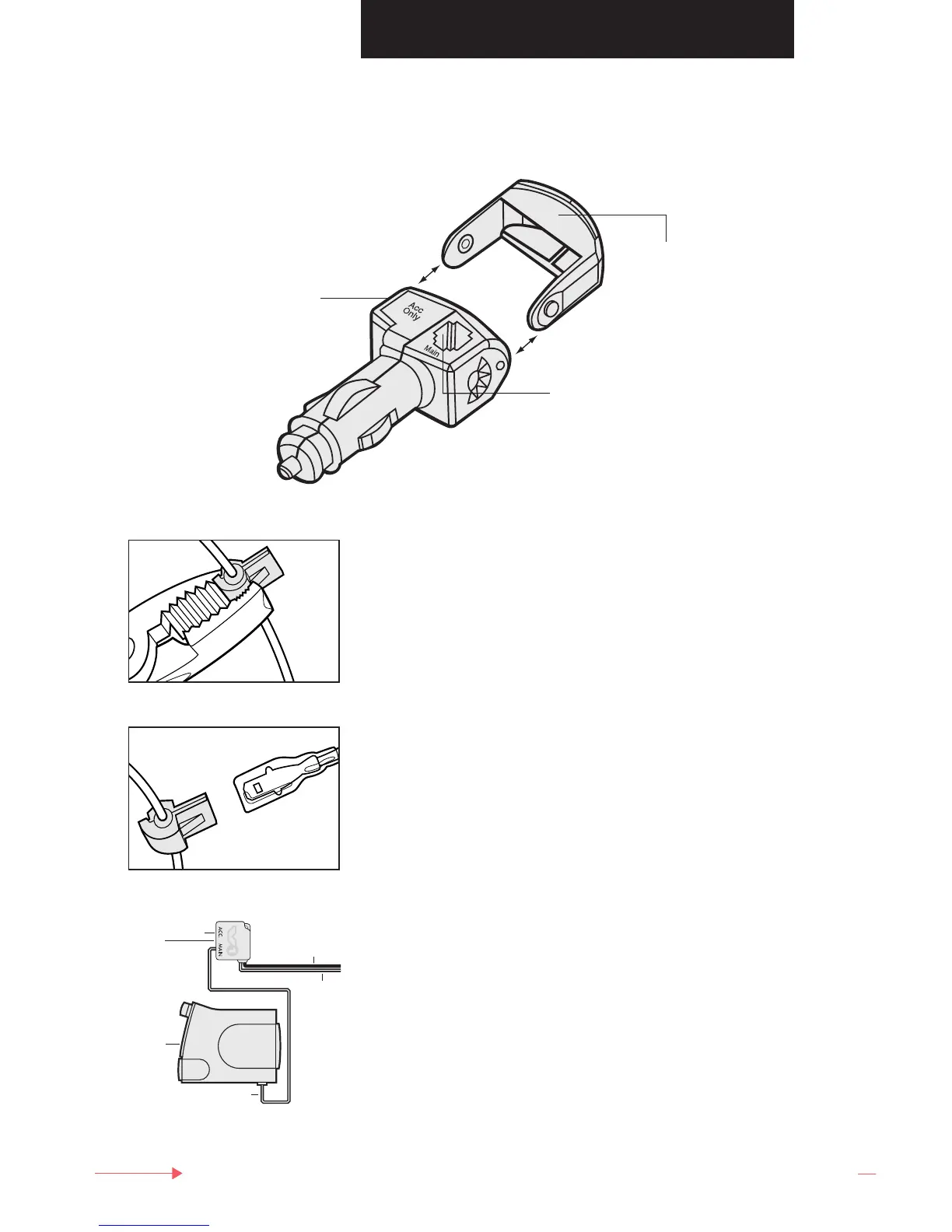

Acc: Plug cord to
Concealed Display
or Remote Audio
Adapter here.
Articulated mounting
bracket, included with
the Concealed Display,
fits as shown.
Main: Plug power
cord to V1 here.
