SMART-PULP Smart Consistency Transmitter
30

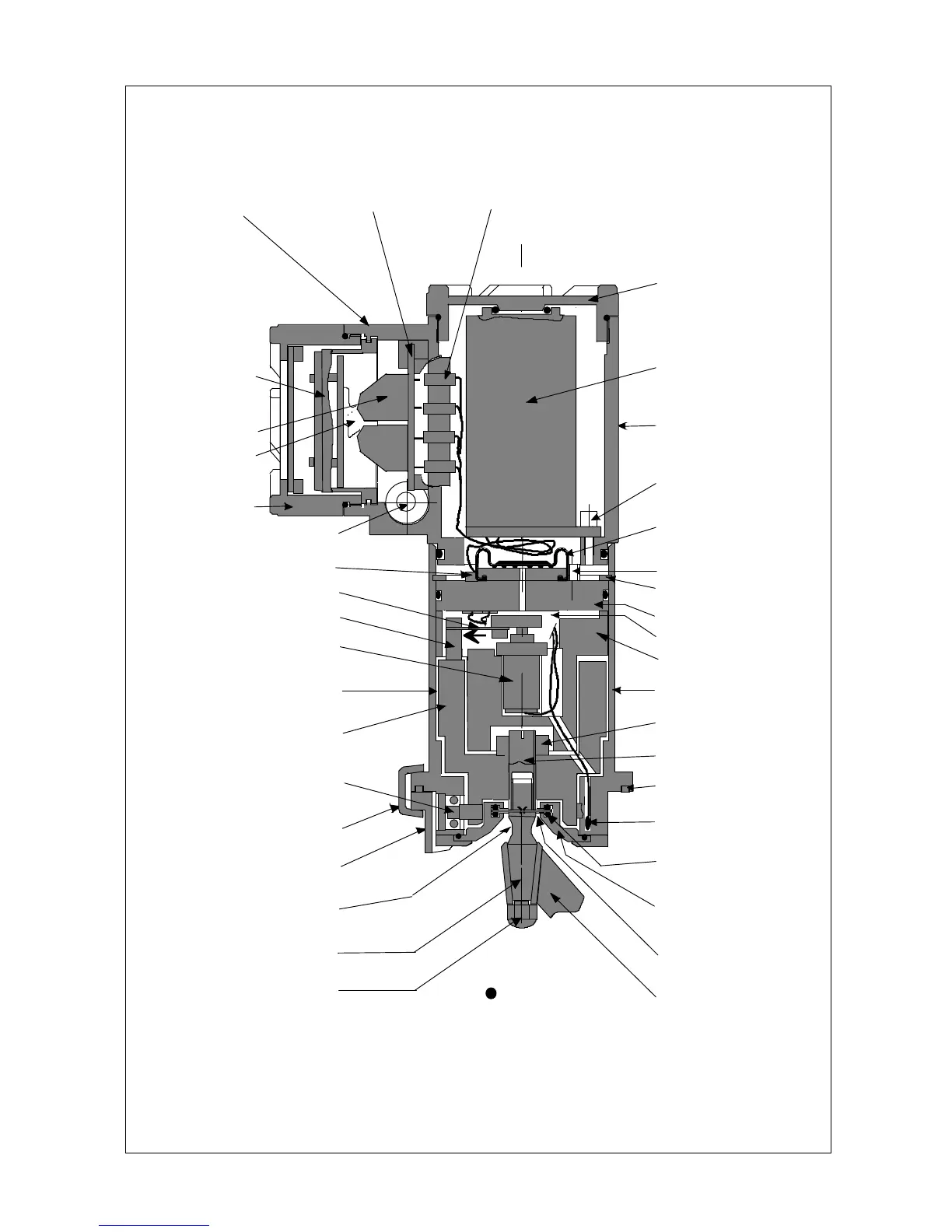

Figure 3.1a SMART-PULP Mechanical construction
F´
F
Operator unit
Terminal strip
Flat cable
Cover 2,
equipped
with window
Junction box
Terminal board
Radio interference filter
Cable inlet
Inlet plug
Connecting wire
Column
Piezoresistive
transducer
Motion limit
clearance
Damping cylinder
Bearing (turned 90°
to illustrations plane)
Mounting clamps
and screws and nuts
Process coupling
Overload
protection
Taper pin
Sensor mounting
nut
Cover 1
Electronics
Electronics housing
Electronics mounting
screws (3)
Expansion diaphragm
Electronics housing
mounting screws (2)
Lock ring
Inner cover
Damping oil
Inner body
Body
Lock nut
Counter pin
Process gasket
Process temperature
transducer
Inlet diaphragms rim
gasket
Inlet cone
Inlet diaphragm
Consistency sensor
= O-ring
NOTE: When SMART-PULP is equipped with remote display, the operator
unit is mounted in a remote wall box and cover 1 replaces cover 2.
