Valor 417 User Manual

6
3. Place the rear base coal in the burner compartment behind
the front coal. Its rear face should touch the rear ceramic wall
(See figure 6).
4. The ceramic side walls are marked at the rear bottom corners
“L” (Left side) & “R” (Right side). Place the side walls against
the sides of the fire box and in the recesses at the sides of the
base coals. The markings “L” & “R” should be at the at the
back bottom corners and facing to the centre of the back of
the firebox (See figure 7).
5. Install the 7 loose coals as follows. The smooth surfaces of
the coals should be at the bottom and back.
5.1. Select the two largest coals Place them in the central two
valleys of the front coal (See figure 8).

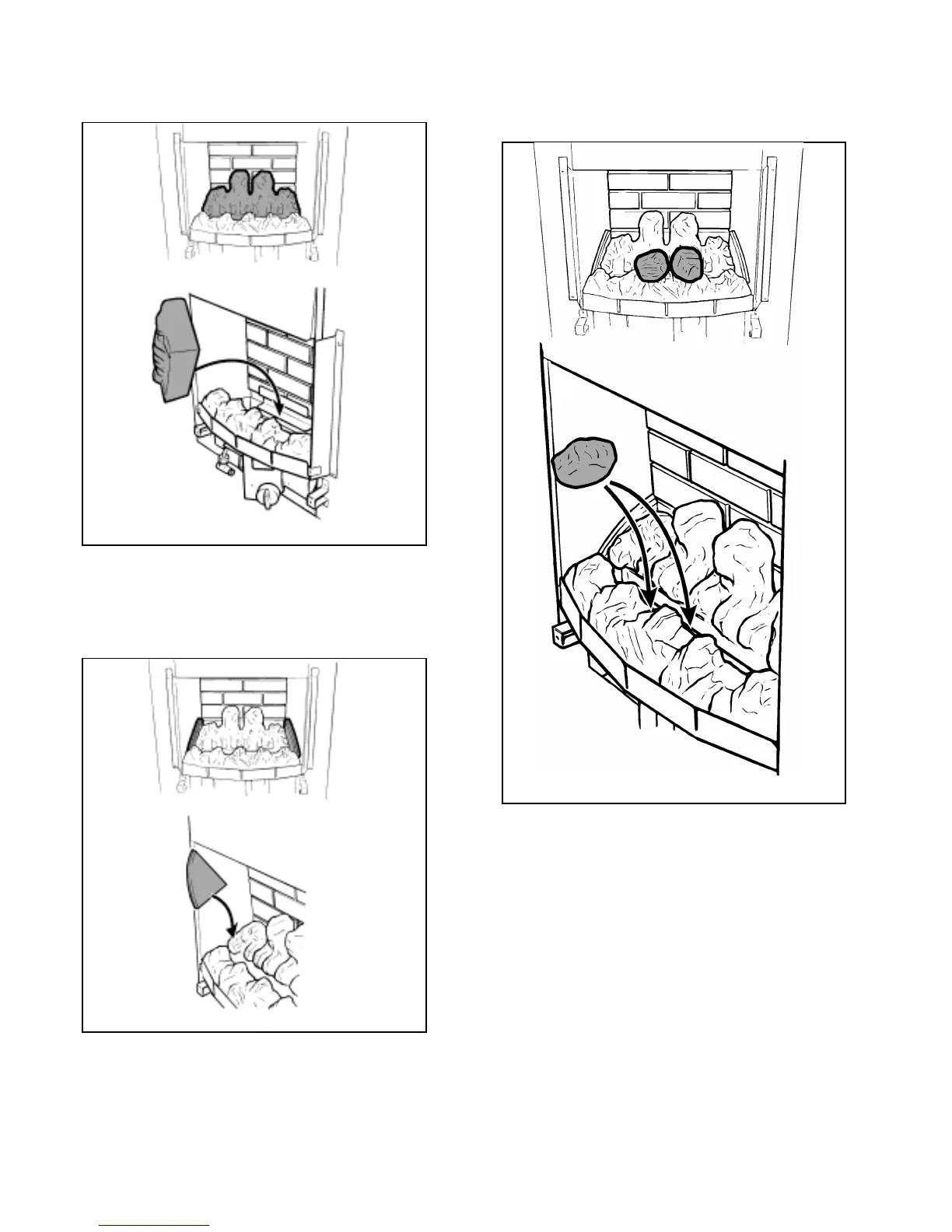

Fig. 6 Rear base coal position
Fig. 7 Ceramic side walls position
Fig. 8 Front row inner coals
