Value Hobby LASER - Page 5

www.valuehobby.com/8mm-epp-laser.html
5

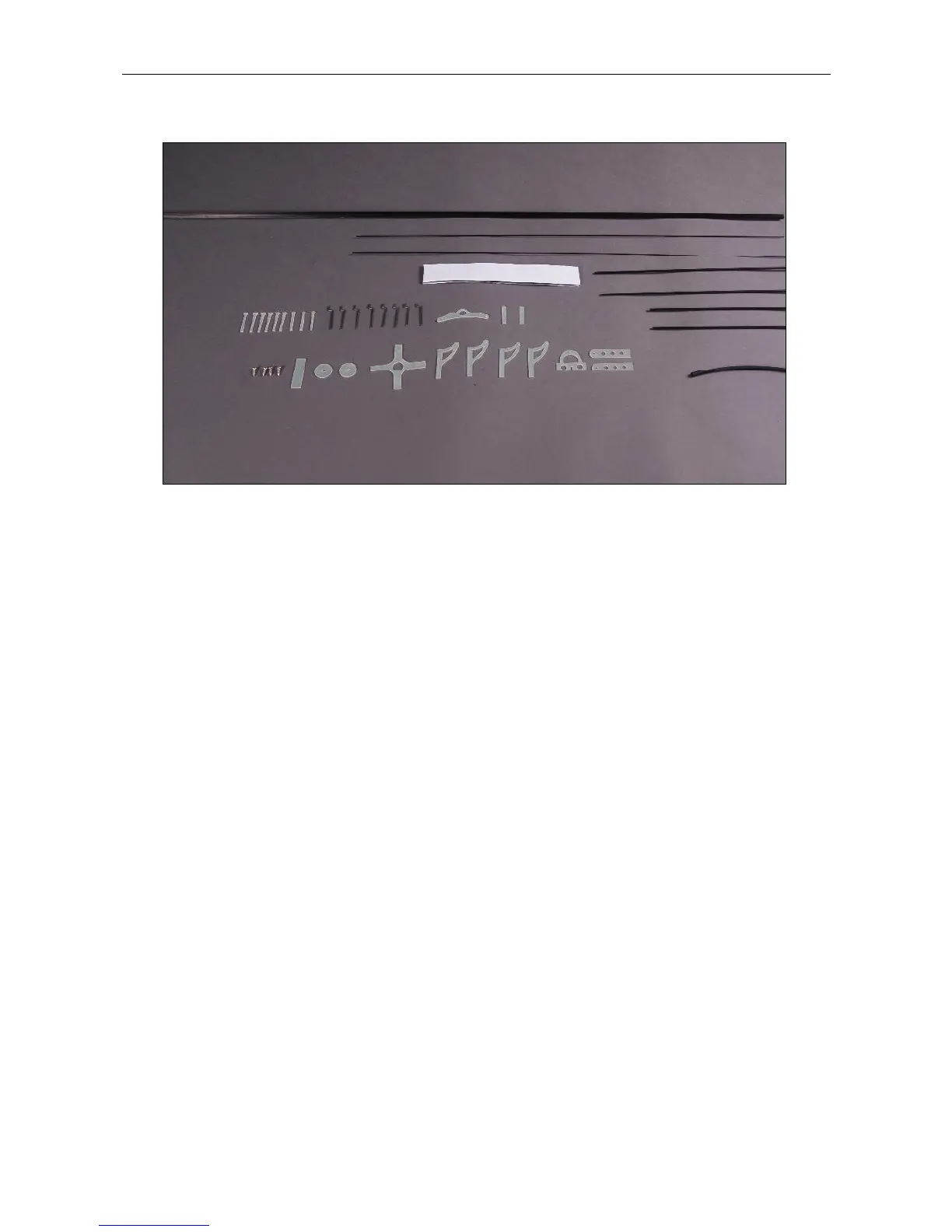

Accessories:
List:
1. Fiberglass parts including motor mount x 1, control horn x 3, elevator control horn x1. wheel x 2,
landing gear mounting plate x1, aileron servo arm extension x 1, rudder servo arm extension x 1,
elevator servo arm extension x 1, pushrod support x 9
2. Carbon fiber Wing Spar x 1 Φ4.0mm x 660mm(26.0-inch)
3. Landing Gear Wire x 2 Φ2.0mm x 190mm(7.5-inch)
4. Steel Wire with z-bend x 8 Φ1.0 mm x 23mm (0.9-inch)
5. Aileron Servo Pushrod x 2 Φ2.0mm x 113mm(4.5-inch)
6.
Rudder Servo Pushrod x 1 Φ1.0mm x 400mm(15.7-inch)
7.
Elevator Servo Pushrod x 1 Φ1.0mm x 400mm(15.7-inch)
8.
Reinforcement Rod on Tail x 1 Φ2.0mm x 370mm (14.6-inch)
9.
Self-tapping screw for Mounting Motor x 4 M2*8mm(0.3-inch)
10. Bolts for Installing the Servo Arm Extension x 6 M2*6mm(0.2-inch)
11. Velcro Tape x 1 150mm (5.9-inch)
12.
Shrink Tubing x 1 Φ3.0mm x 25mm (1.0-inch)
