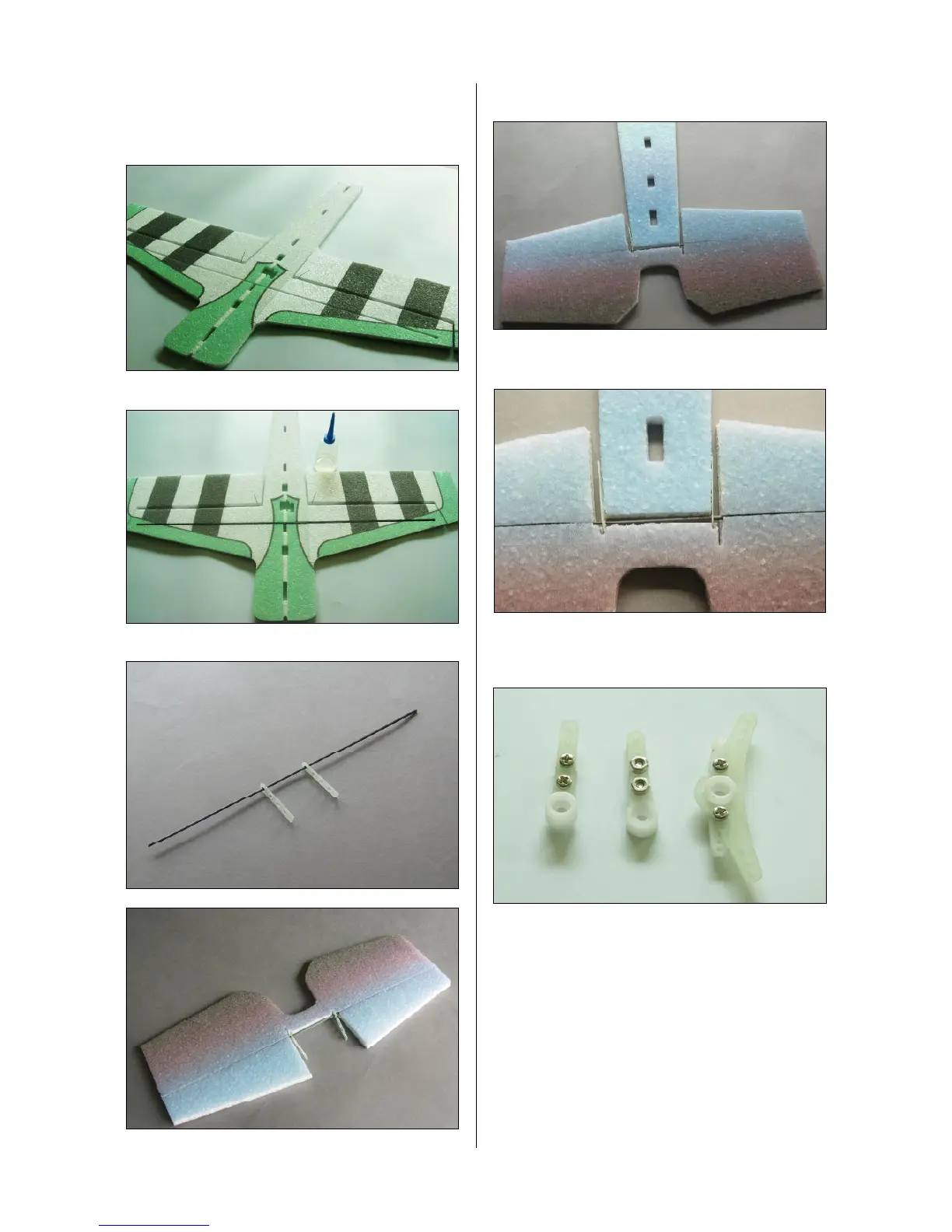

Section1. Airframe Assembly
Step1. Use foam safe glue to glue the wings to the
fuselage.
Step2. Glue the carbon fiber square tubing to the
pre-cut slot.
Step3. Locate the 370mm (14.6-inch) carbon fiber rod,
and attach two fiberglass plates to the rod.
Step4. Glue the rod to the slot on the tail.
Step5. Place the tail and horizontal fuselage in
position on a work surface.
Step6. Glue that two fiberglass plates to the
fuselage.
Step7. Install the fiberglass extended arm to the servo
arm. (Glue them together before you drill the
mounting holes)
Step8. With servo centered electronically, install the
servo horn to the servo.
