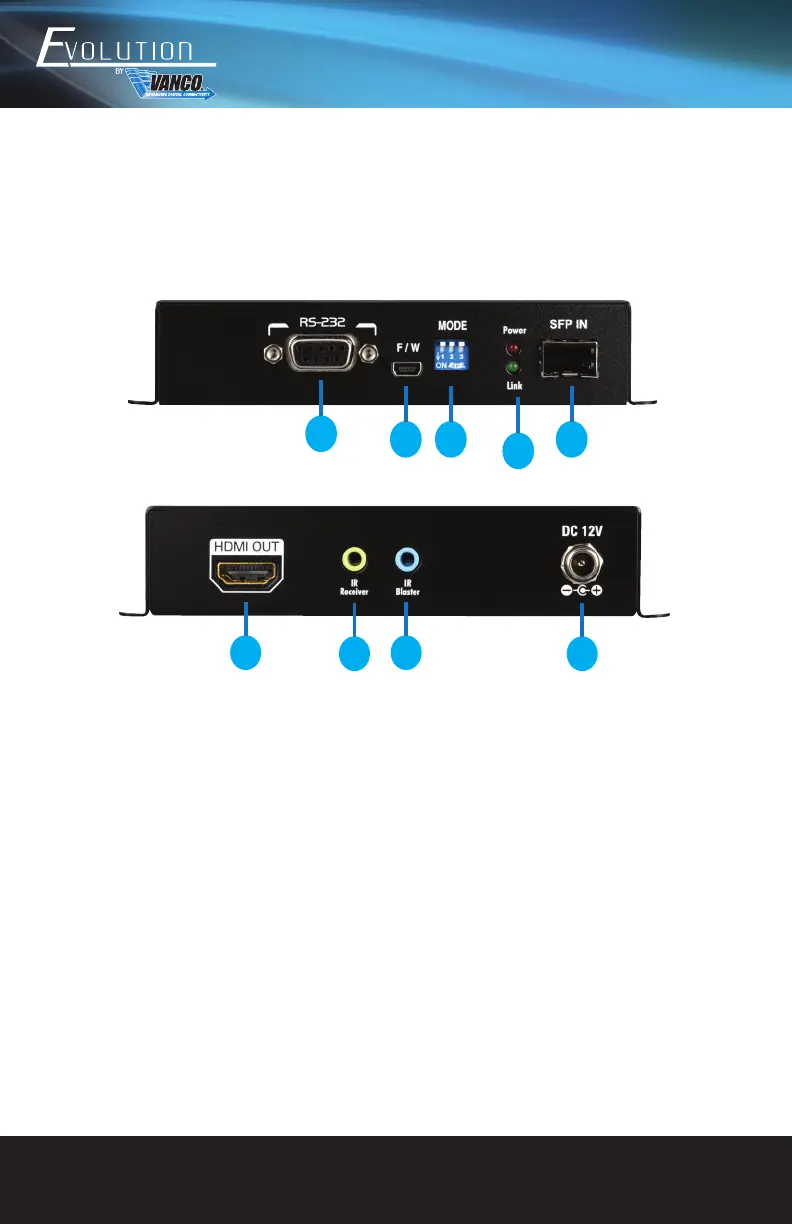

PANEL DESCRIPTIONS
Receiving Unit
2
1
3
4
5
6
7
8
9
1. RS-232: Connect for control via PC or third party control system
2. Firmware Update Port: Any available f/w updates will be available under the EVEXFBR1 product page on
www.vanco1.com
3. DIP Switch for Control: Enable or disable bi-directional IR and/or RS-232; see “Control Type Setup”
section
4. Power and Link Lights: Both LEDs should be illuminated for proper functionality, link indicates that both
the TX and RX are communicating
5. SFP IN: Connect multimode ber optical cables from this unit to the TX (multimode modules included)
6. HDMI OUT: Connect an HDMI display
7. IR IN: Connect the included IR Receiver (RX) to control the source
8. IR OUT: Connect the included IR Transmitter (TX) to control the display
9. DC 12V: Connect the included 12V Power Supply (both TX and RX need to be plugged into power)
