8
CONNECT AND OPERATE
1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc.
to the HDMI input on the transmitting unit
2. Connect a display such as an HDTV or HD Projector to the HDMI output on the receiving unit
3. Connect ber optical cables with modules and insert into the output of the Transmitting unit, and the other
end to the SFP input of the Receiving unit
4. For power, plug in both the transmitting unit and receiving unit with the included power supplies
5. Power on each device in the same sequence (receiver and transmitter will already be powered when either
unit is plugged in)
At this point the display connected should display the source signal connected to the extender set. If no signal
is being displayed, connect a ber optical cable to rule out cabling. If a display is having difculty receiving a
signal, access the display’s menu and adjust the resolution (lowest to highest until signal is displayed). A 24
Hz vertical refresh rate may work better than 60 Hz or higher. Use the source remote at the receiver blaster
to test IR functionality. If the IR remote function is not responding, check the blasters to ensure they are
placed correctly and are plugged into the correct IR jacks on the Extender set receiving and transmitting units.

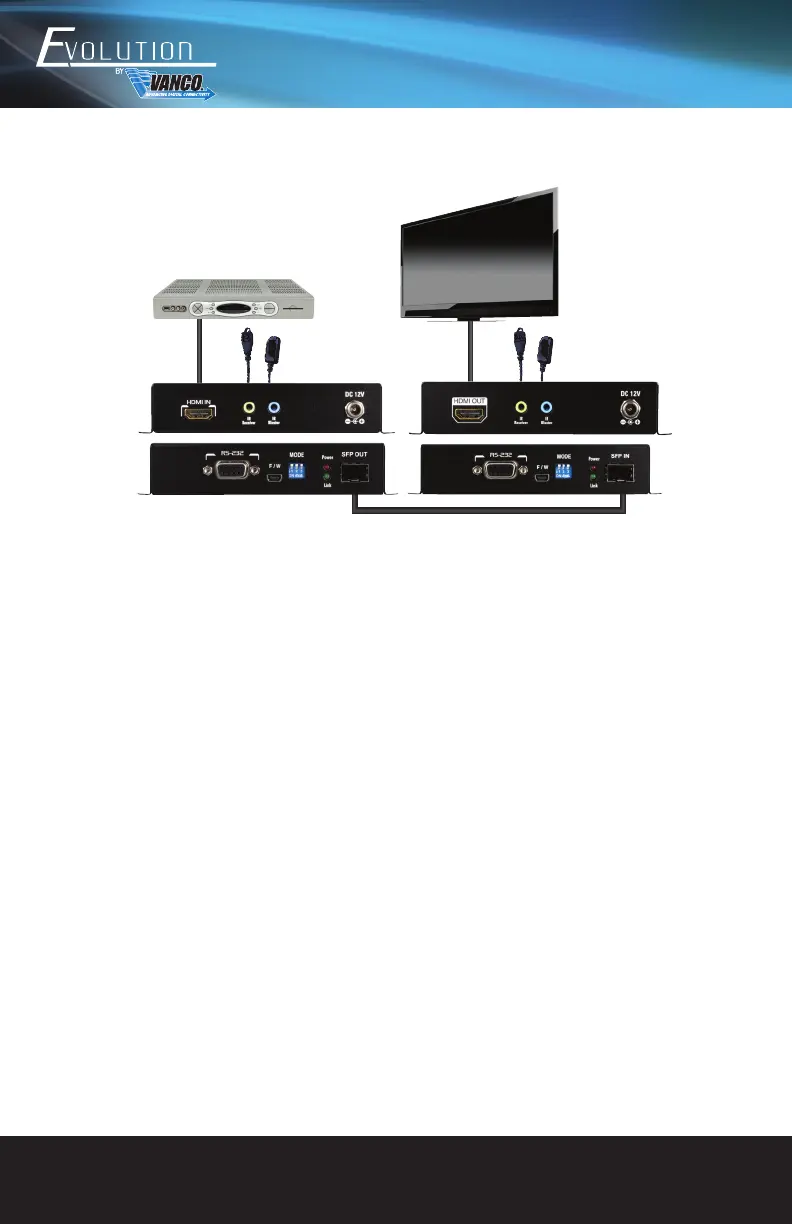

CONNECTION DIAGRAM
IR Transmitter
Source
HDTV
ansmitter Receiv
HDMI
HDMI
IR Receiver
IR Transmitter
IR Receiver
