Output
monitor
Select which outputs are to be monitored.
Note: The parallel resistor, diode and required load must be applied before
enabling this option. The SPCP355.300 must perform a calibration before
monitoring starts. See Supervised Outputs on page59 for more information.
Primary
battery only
Tick this box if there is no secondary battery connected to the PSU
When expanders are added or removed go to Configuration > Hardware > X-BUS > Cable Map &
Configuration.
Click Reconfigure to implement changes.
When you click Proceed Reconfiguration, the whole X-BUS is reconfigured. If an expander is
offline and the reconfigure button is pressed, the expander will disappear without notifying the
user.
Reconfiguring the X-BUS
1. Select Configuration > Hardware > X-BUS > Cable Map & Configuration.
2. Click Reconfigure.

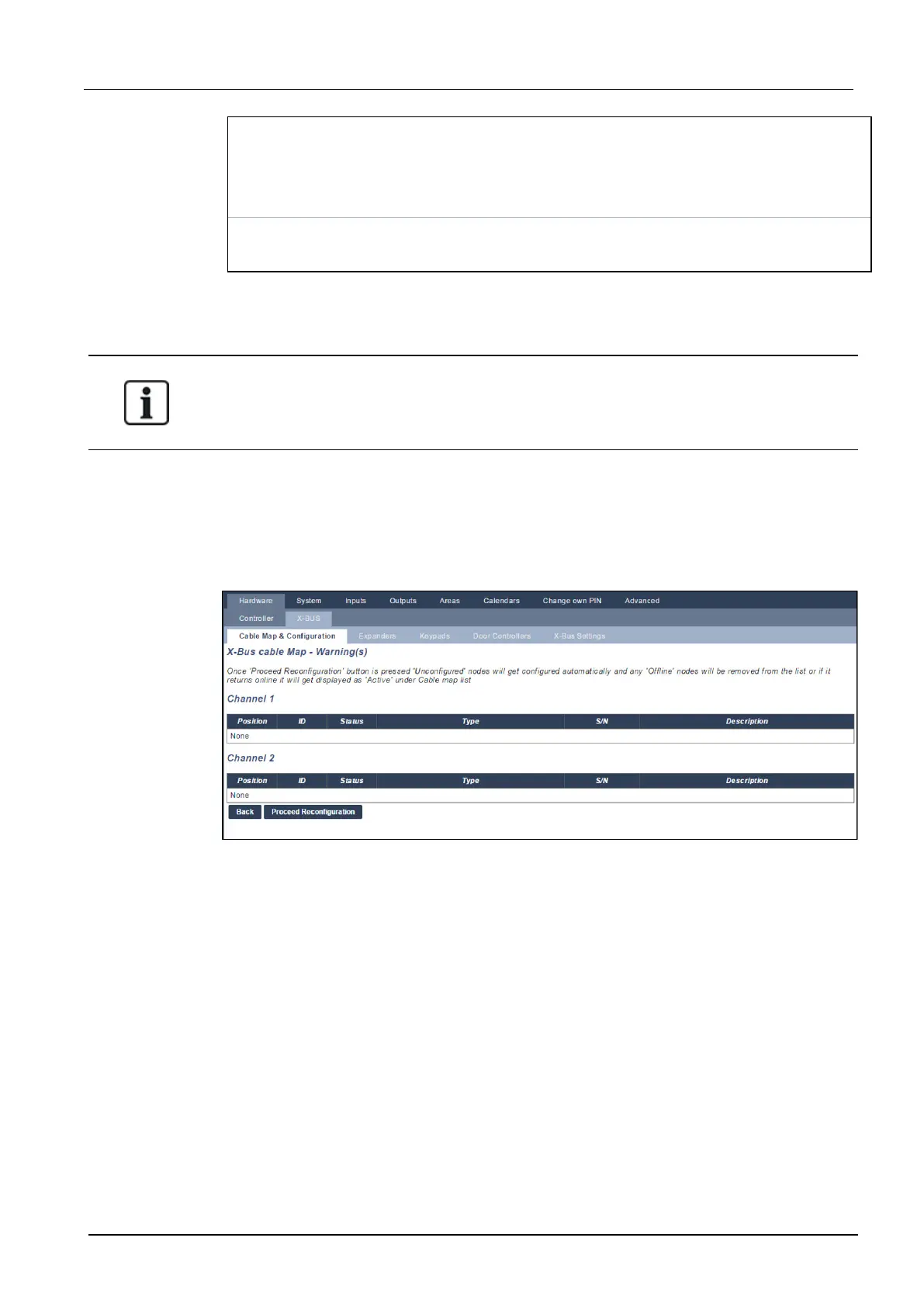

The X-Bus cable Map – Warning(s) page displays.
3. Click Proceed Reconfiguration.
The X-BUS is reconfigured.
If an expander is offline and the reconfigure button is pressed, the expander will disappear
without notifying the user.
See also
l Wiring the system on page75
l Zone attributes on page384
l Zone types on page379
Configuring an Indicator Expander
There are 2 possible configuration modes for the indication expander:
l Linked Mode
l Flexible Mode
