8.1 Controller Hardware 42xx/43xx/53xx/63xx
This section describes the controller for the SPC42xx, 43xx, 53 xx and 63xx models. The SPC5350 and
6350 are described in Controller Hardware SPC5350 and 6350 on page71.
The SPC controller provides 8 on-board wired zones and optional wireless zones.

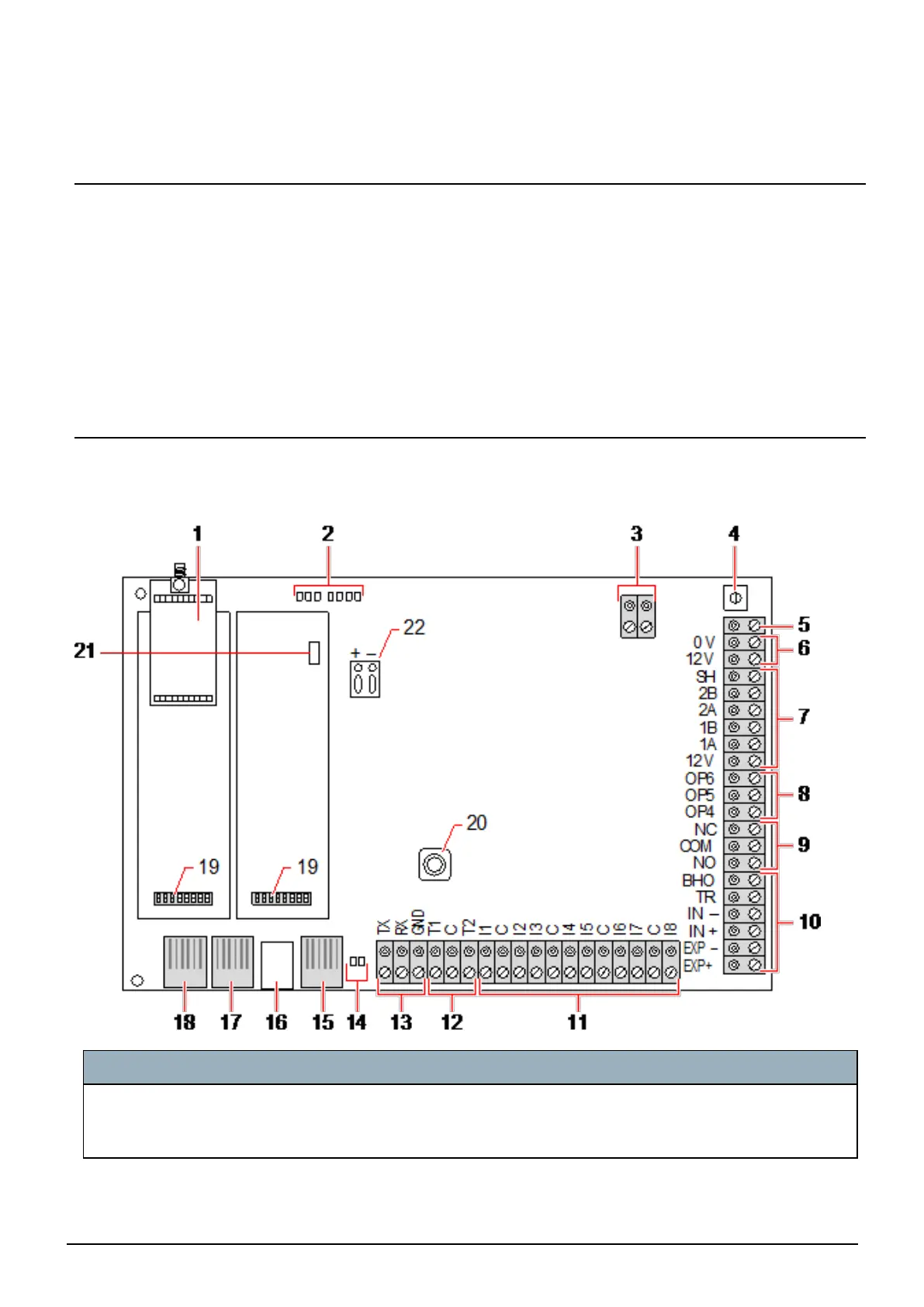

Number Name Description
1 Optional
wireless
module
The controller PCB can be factory fitted with a wireless module for use with wireless
(868MHz) sensors.
