17.10.1.2 Editing an output

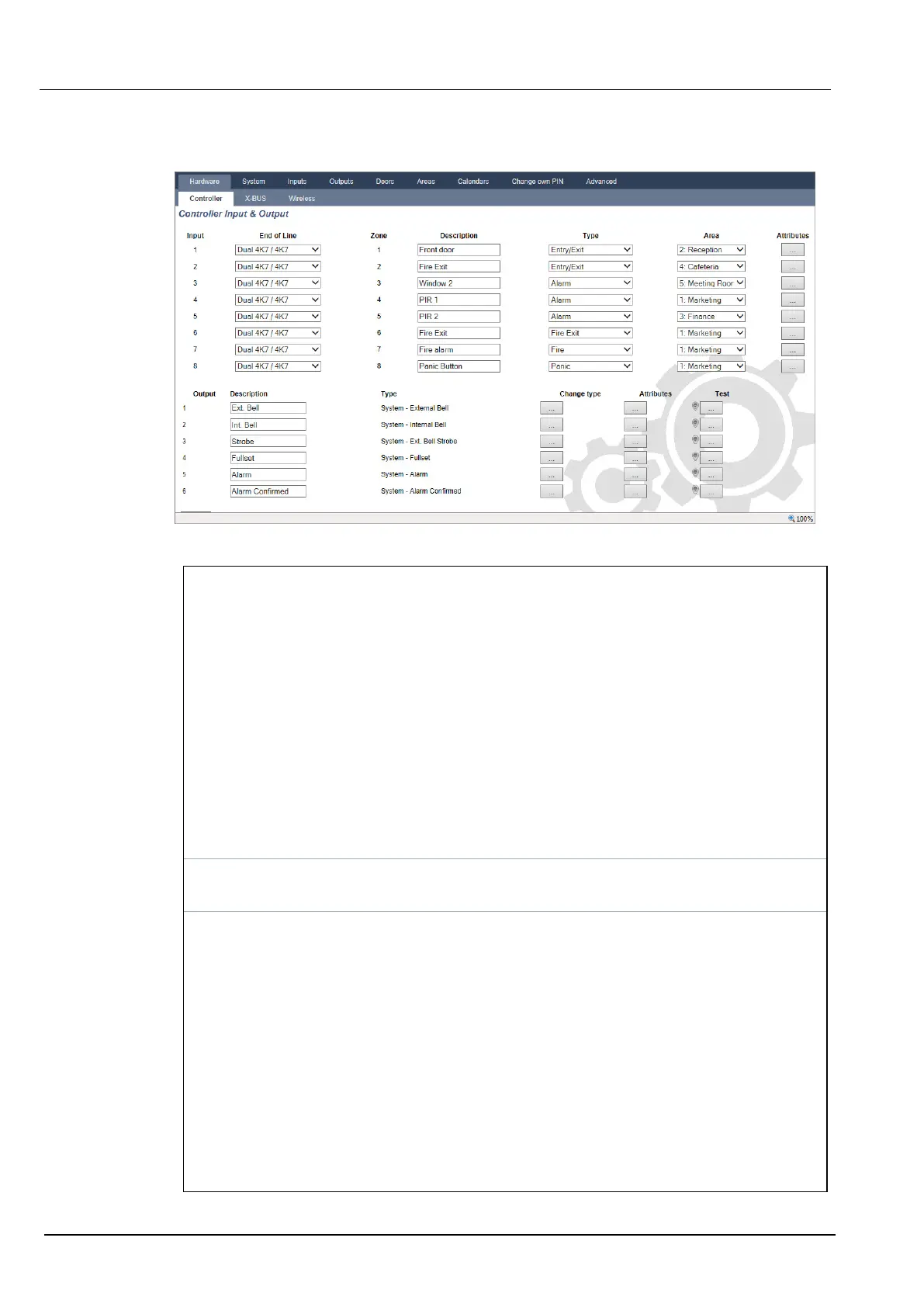

1. Select Configuration > Hardware > Controller.
2. Configure the fields as described in the table below.
Output Type l System Output: Select the type from the dropdown menu. (See Outputs
types and output ports on the facing page.)
l Area Output: Only if (multiple) Areas is activated in menu Panel
Settings > System Settings > Options. Select an area and the type of
system output for this area. (See Outputs types and output ports on the
facing page.)
l Zone Mapping: Select which zone should be mapped.
l Mapping Gate: Select which mapping gate should be mapped.
l Door Output: Select the door number and the type of system output for
the door. (See Outputs types and output ports on the facing page.)
l Keyswitch: Select the node ID for the required keyswitch and the required
key position to map to this output.
Description Enter a text describing the output (max. 16 characters). This text will also
appear on the browser and keypad.
Output
Configuration
l Mode: Select the operational mode. Continuous follows output type;
Pulsed toggles on and off when output type is active; Momentary
generates a pulse when output type activates.
l Retrigger: Tick the box to retrigger momentary outputs.
l On Time: Enter the On time that applies to momentary and pulsed
outputs.
l Off Time: Enter the Off time that applies to pulsed outputs.
l Invert: Tick this box to invert the physical output.
l Log: Tick this box to log the output state changes to the event log.
l Calendar: Select if necessary the desired calendar. See Calendars on
page284.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 231 A6V10276959-d
11.2018
