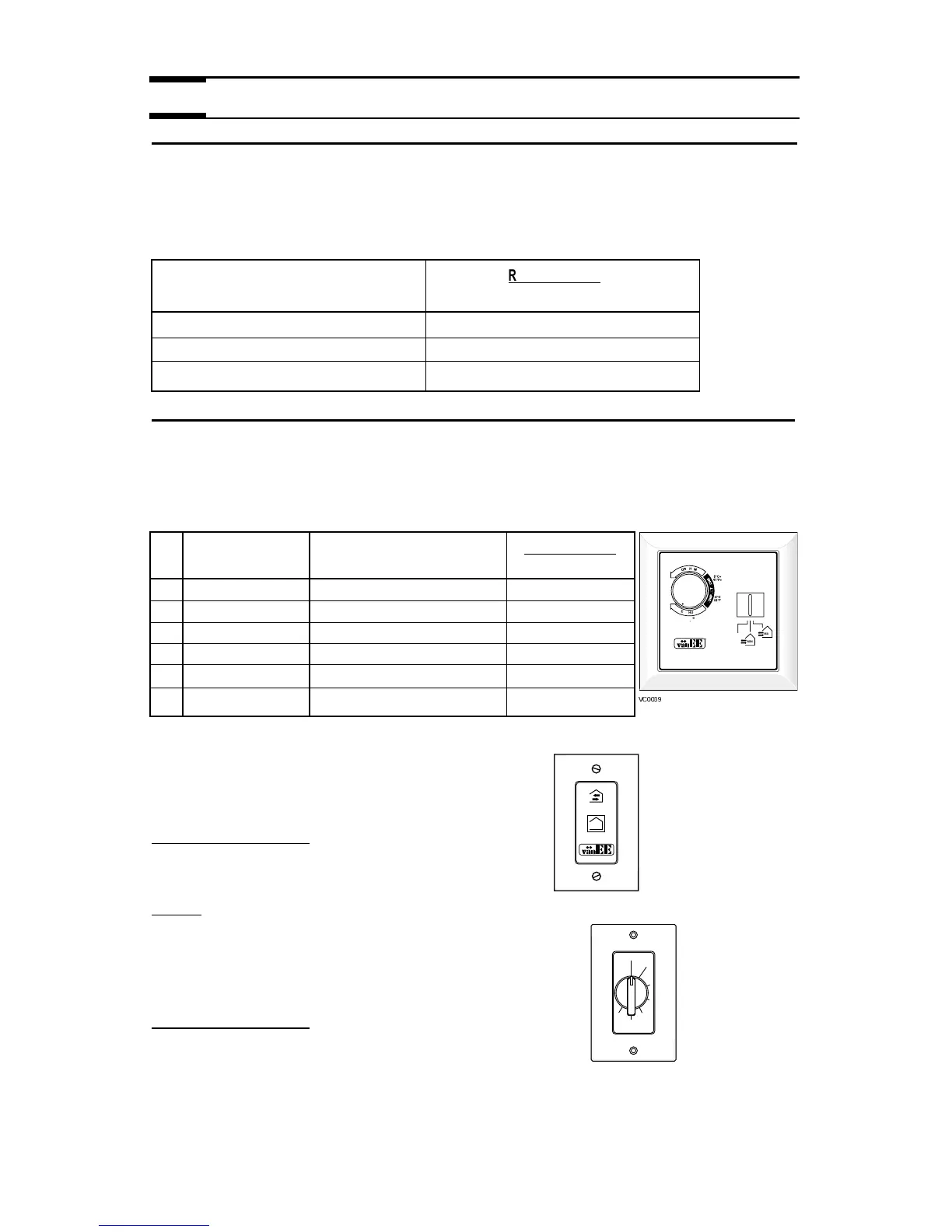

6.0 OVERALL VERIFICATION
6.1 3-Position Switch
This procedure allows the installer to verify that all modes of operation are fully functional.
During the verification of the 3-position switch, make sure that all optional remote
controls are inactive.
6.2 Optional Controls
First, set 3-position switch (located on the side of unit) to “REMOTE” position before
checking the remote optional controls.
BRONZE (6 different control scenarios to be tested)
Activate the push button.
Results expected:
1. Motor speed: high for 20 minutes.
2. Indicator light on timer goes “ON”.
Note: To stop activation, push one time.
20-minute push-button timer
Activate the timer.
Results expected:
1. Motor speed: high for up to 60 minutes.
60-minute crank timer
Set the slider Set dehumidistat Results expected
switch to dial to Fan speed / damper
1 Off maximum counterclockwise motor off / closed
2 Off maximum clockwise motor off / closed
3 Min maximum counterclockwise low speed / open
4 Min maximum clockwise high speed / open
5 Max maximum counterclockwise high speed / open
6 Max maximum clockwise high speed / open
VC0039
MIN.
MAX.
O
F
F
M
E
U
I
D
L
E
S
S
H
U
M
I
D
C
O
R
Z
-30°C
-22°F
-20
°
C
-4°F
Results expected
Set switch to fan speed / damper
LOW low speed / open
HIGH high speed / open
REMOTE motor off / closed
VENTILATI
O
N
®
VC0040
OFF
10
20
30
40
50
60
TURN
PAST
20
VC0017
