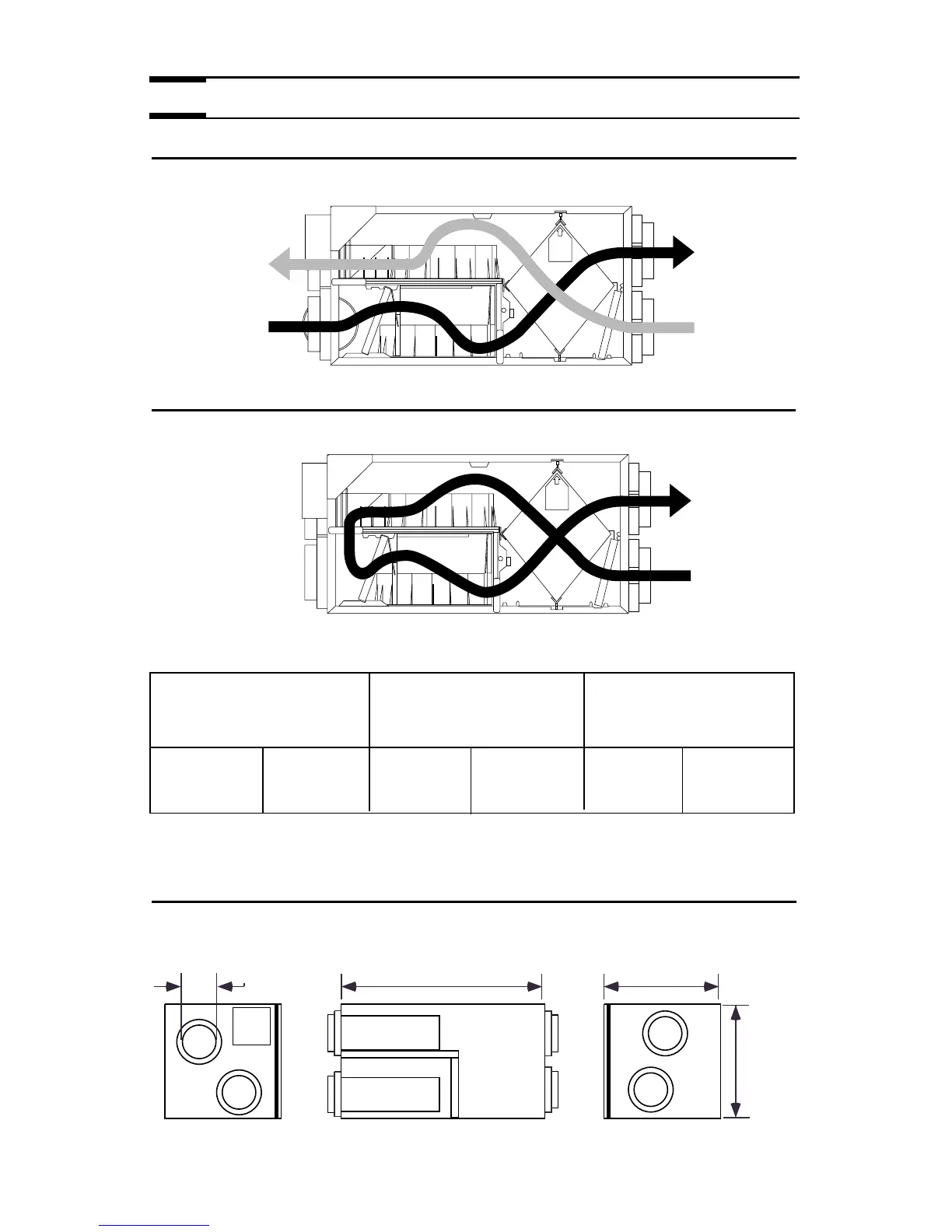

vanEE 90 H - 1.0 TECHNICAL DATA; 1.1 Air Distribution (Normal Operation); 1.2 Air Distribution (Defrost); 1.3 Dimensions

3
1.0 TECHNICAL DATA
* In a cold region, setup EXTENDED DEFROST by removing jumper JU1F
on the circuit board.
STALE AIR
TO OUTSIDE
FRESH AIR
TO BUILDING
1.1 Air Distribution (Normal Operation)
FRESH AIR
FROM OUTSIDE
STALE AIR
FROM BUILDING
FILTERED AIR
TO BUILDING
1.2 Air Distribution (Defrost)
STALE AIR
FROM BUILDING
VF0022
VF0023
Outside Temperature Defrost Cycles Extended Defrost Cycles*
Defrosting (min.) Operation time (min.) Defrosting (min.) Operation time (min.)
Celsius (°C) Fahrenheit (°F)
between each defrost cycle between each defrost cycle
-5 23 6 32 10 30
-15 5 6 32 10 20
-30 -22 6 20 10 15
1.3 Dimensions
16 1/2"
(419 mm)
17 1/8" (435 mm)
30 1/4" (768 mm)
6" (152 mm)
VK0029
