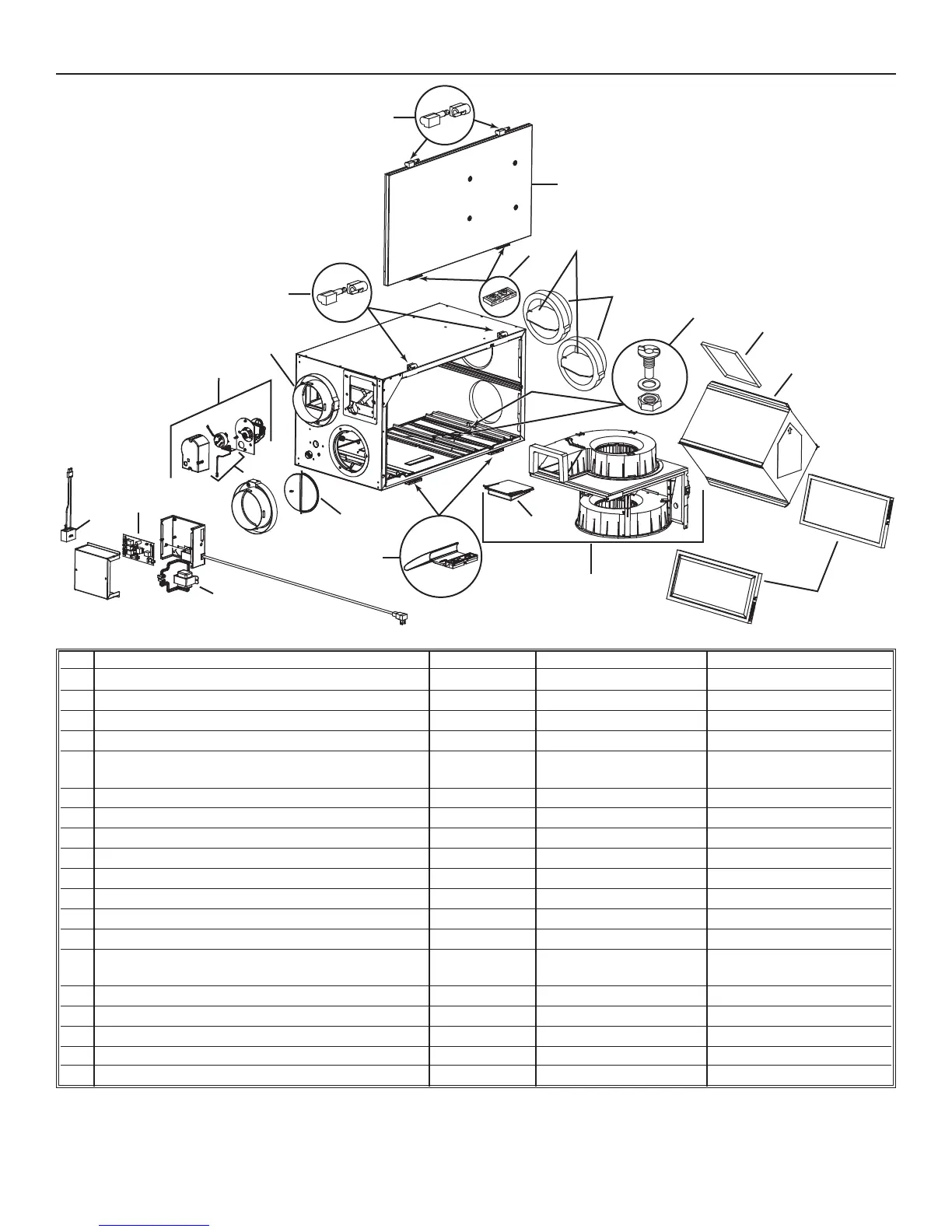

8. SERVICE PARTS
ITEM DESCRIPTION QUANTITY VÄNEE 90H VÄNEE 190H
1MOTORIZED DAMPER ASSEMBLY (INCLUDING 18) 1 17235 17235
2DOUBLE COLLAR PORT 2 02257 02257
3HINGE ASSEMBLY (KIT) 1 13036 13036
4DOOR ASSEMBLY (INCLUDING 3 AND 5) 1 12350 12350
5
D
OOR LATCHES (KEEPER) 2 00887 00887
AND SCREWS 4 00601 00601
6BALANCING DAMPER 2 02253 02253
7BALANCING DOUBLE COLLAR PORT 2 02256 02256
8DRAIN CONNECTOR KIT 1 03203 03203
9SMALL BASIC FILTER 1 09300 09300
10 HEAT RECOVERY CORE 1 03311 03311
11 BASIC FILTER 2 02300 02300
12 BLOWER ASSEMBLY (INCLUDING 12) 1 17236 17237
13 SQUARE DAMPER KIT 1 17243 17243
14
D
OOR LATCHES 2 00886 00886
AND SCREWS 4 00601 00601
15 DAMPER NO 1 (KIT) 1 17245 17245
16 TRANSFORMER 1 17244 17244
17 CAPACITOR 7.5 µF 1 17240 17240
18 ELECTRONIC BOARD 1 17241 17241
19 THERMISTOR KIT 1 17242 17242
